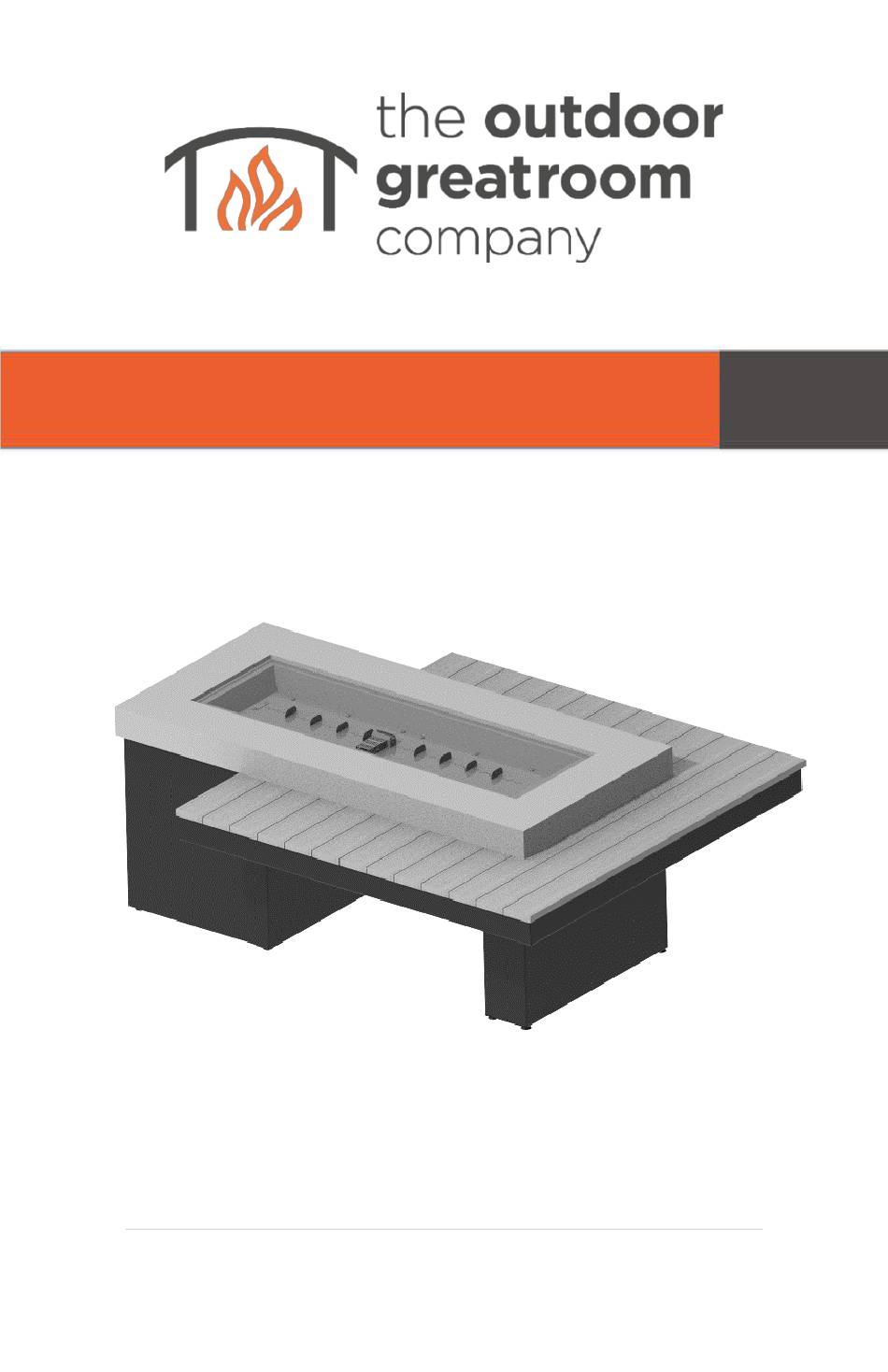

- Page 1 Uptown Fire Pit Table Installation Instructions for UPT-1242-IRO P a g e...
-
Page 2: Table Of Contents
Contents Required Tools…………………………………………...2 Placing and assembling the Table…….……..…3 CF-SPARKER Installation…………………….….…….6 Gas Connections…………….…………………...……...6 Thermocouple Installation…………………….…….7 Electrode Installation………………………….……...7 Locating Propane tank……………………..………...8 Locating Natual Gas Line.………………….………..9 Wood Care……………………………………..…….…….9 Fire Media Installation………………….….……..…10 Required Tools • Utility Knife - To cut and remove packaging • Phillips Screwdriver –... -
Page 3: Placing And Assembling The Table
Placing and Assembling the Fire Pit table 1. Remove all components from packaging. 2. Move the base sections to desired location and set into place spaced approximately 28 ½” from each other. 3. When locating your table, refer to the Crystal Fire® Plus manual and maintain clearance to combustibles. - Page 4 4. Place tank base in desired location, then adjust leveling legs on bottom to ensure tank door operates smoothly. 5. Use Phillips screwdriver and supplied bolts (6) to attach wood top to tank base. 6. Using a Philips screwdriver and supplied bolts (4), attach the support base to the top as shown in the image below.
- Page 5 7. Align concrete top to be centered on tank base & overhanging rear to match sides. *DO NOT SLIDE SUPERCAST ON WOOD TOP* 5/8” *May have to adjust level legs to get supercast top to sit flat* If the table is relocated, remove Supercast top while moving. Failure to do so may result in the wood frame warping.
-
Page 6: Cf-Sparker Installation
CF-SPARKER Installation • Remove CF-SPARKER cap and hex nut. Insert AAA battery (not included) with + end out. • Install CF-SPARKER into control panel as shown below. • Depress CF-SPARKER button to test your sparker. Locate and orient sparker box on control panel as shown. -
Page 7: Thermocouple Installation
Thermocouple Installation • Refer to Crystal Fire® Plus instruction manual for detailed attachment of thermocouple. • Attach thermocouple to burner valve as shown below. Electrode Installation • Connect igniter and ground wire to sparker box. Both wires can connect to either connection point. The unit will operate in either configuration. •... -
Page 8: Locating Propane Tank
Locating your Tank (If applicable) • Tilt your propane tank into the slide out tank drawer. • With the propane tank and control valve in the OFF position, connect the Regulator Hose, included with the Crystal Fire® Plus burner, to your propane tank. -
Page 9: Locating Natual Gas Line
Locating Natural Gas Line (If applicable) 17-3/4 x 4 Top View of Base with Door • Locate natural gas stub inside of the red outline to avoid clearance issues with the door for natural gas installations Wood Care Annual maintenance: To maintain the natural wood top, it is recommended to clean with an exterior wood cleaner and apply oil (Cabot Australian Timber Oil, Natural color). -
Page 10: Fire Media Installation
Fire Media Installation • Scatter all included glass beads, lava rock, or other approved fire media evenly across entire burner surface. DO NOT BURN WITHOUT GLASS OR OTHER APPROVED DECORATIVE FIRE MEDIA DO NOT BURN WITH GLASS COVER INSTALLED IMPORTANT Please consult your Crystal Fire®... - Page 11 Warranty: Fire pit tables are covered under a 1-year manufacturer’s warranty. Please visit https://www.outdoorrooms.com/product-registration to register your product. Thank you for purchasing an Outdoor GreatRoom Company product! This fire pit was made with pride in the USA. 11 | P a g e...
- Page 12 Service Parts • Refer to Crystal Fire® Plus instruction manual for burner service parts Part Part number Supercast 2554-1254-LIN Top Assembly UPTOWN-IRO-TOP Tank Base Assembly UPTOWN-BASE-TANK-IRO (Includes door assembly) Small Pedestal Assembly UPTOWN-BASE-IRO Glass Burner Cover 1242-GREY-GLASS-COVER St. W. • Lakeville, MN 55044 9 5 8 3 21 7 Toll Free: 1-866-303-4028 •...
