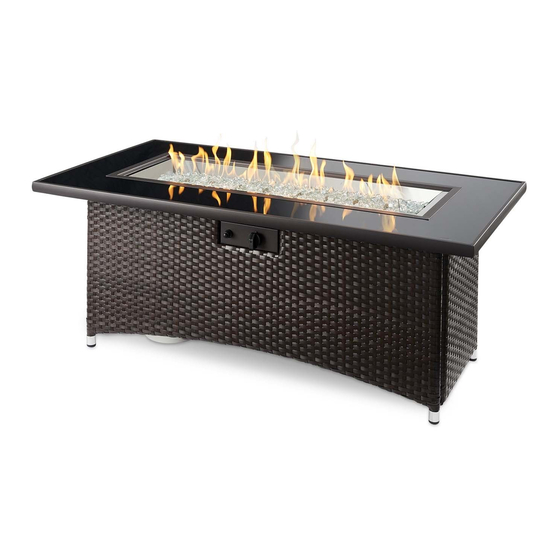

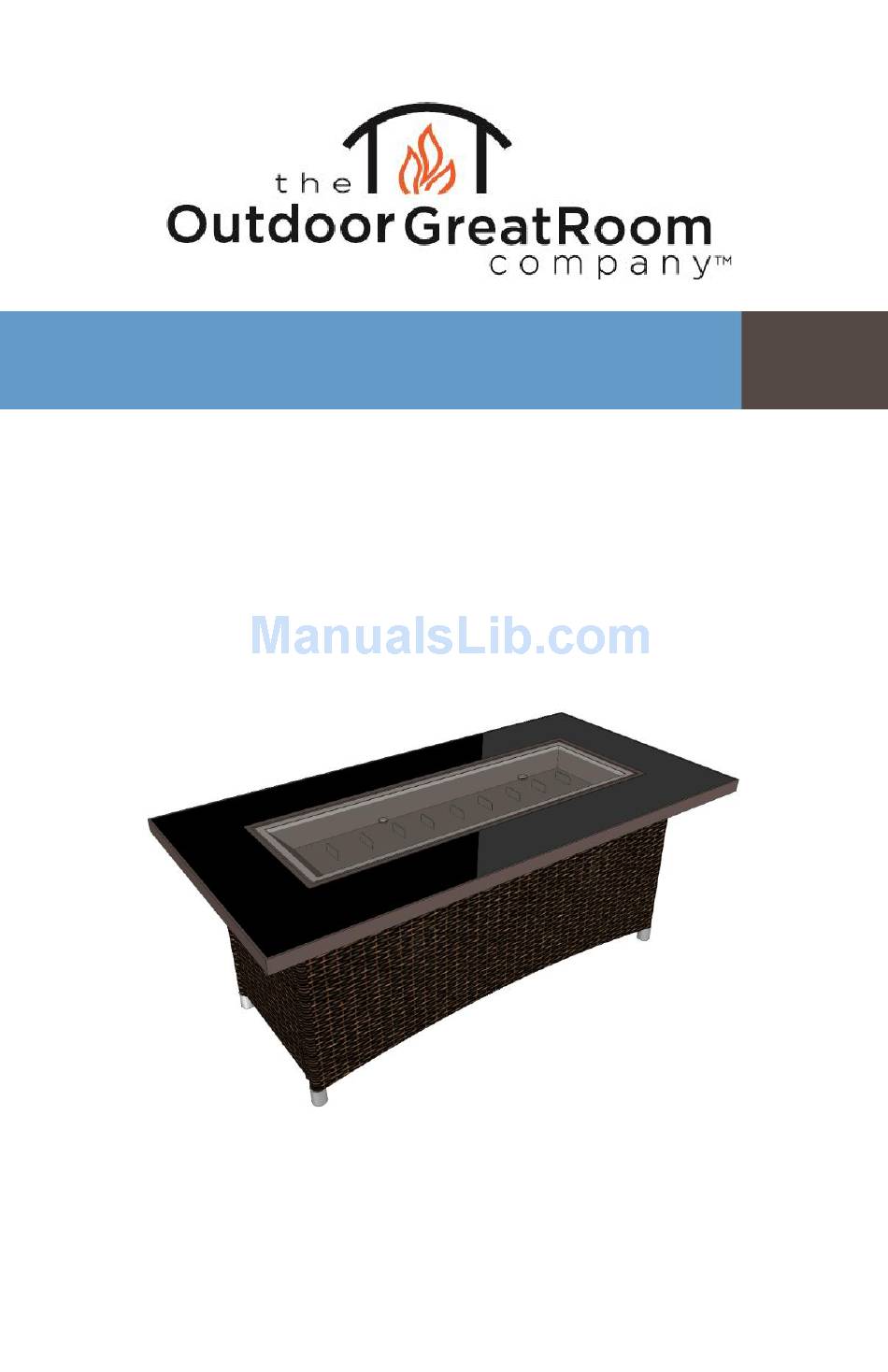

- Page 1 Montego Fire Pit Table Installation Instructions for Montego Fire Pit Models MG-1242-BLSM-K and MG-1242-BLK-K...
-
Page 2: Table Of Contents
IMPORTANT Contents Please consult your Crystal Fire instruction manual for detailed instructions and important information related to hooking up your Required Tools…………………………….…..2 linear burner, including safety information, proper tightening of Included with your Fire Pit……………….3 connections with two wrenches and full burner setup and lighting instructions. -
Page 3: Connections With Two Wrenches And Full Burner Setup And Lighting Included With Your Fire Pit
Included with your Fire Pit TOUCH PAINT M6 Allen Wrench [X 1] Bolt Caps [X 4] Touch- Up Paint Bottle [X 1] Bolt A [X 4] Bolt B [X 4] Bolt C [X 4] M6X20 M6X16 M6X35 Clear Silicone Pads Bottom Panel A [X 1] [X 6]... -
Page 4: Assembly Instructions
Assembly Instructions Included with your Fire Pit 1. Unpack the fire pit table contents from the box, and remove individual packaging from each piece. A. 4 Fasteners 2. Lay Panel A on soft, flat surface. B. 4 B-Bolts 3. Position Center Support on Panel A. NOTE: it is very important to place the Center Support exactly as shown in C. - Page 5 4. Stand up Panel A and use 2 more Bolt 5. Use Bolt B (x4) to attach A to attach Center Support to Panel B. Panel C as shown. Panel C 6. Remove the 4 pre-installed bolts (Bolt C) from the underside of the Glass Top , set the top into place on the base, and reinstall the bolts to fasten the top to the base.
-
Page 6: Gas Connections
Gas Connections Read and understand your Crystal Fire owner’s manual before beginning burner hookups or using the device. Do not use Teflon tape or pipe dope on flare fittings. 1. Reach inside the burner cut-out and attach natural gas supply line using a 3/8”... -
Page 7: Contents Position Your Tank
3. Set Burner into the fire pit base exactly as shown and make final gas connection to the Control Panel. Igniter Igniter TIGHTEN CONNECTION SECURELY WITH WRENCH Metal flex line to burner ONLY... -
Page 8: Igniter Installation
Igniter Installation 1. Make sure the valve is in the OFF position before beginning. 2. Install sparker as shown, using a AAA battery (not included). Negative end should be placed inside the CF-SPARKER, positive end outside of the CF-SPARKER. Sparker will not operate correctly without an ignition and ground wire attached. -
Page 9: Glass Installation
Glass Installation 1. Scatter all of the included Glass Beads evenly onto burner surface. DO NOT OPERATE CRYSTAL FIRE BURNER WITHOUT GLASS BEADS OR OTHER DECORATIVE MEDIA PRESENT 2. Place a single Silicone Pad in each corner and two in the center as shown below. -
Page 10: Position Your Tank
After installing igniter and making gas connections, verify that all connections are tight and that no leaks are present using a solution of soapy water or a commercially available leak-check solution. Position Your Tank (if applicable) 1. Remove door, connect the propane hose/regulator to the propane tank and hand tighten (DO NOT USE A WRENCH) and slide the propane tank past the dotted line to ensure the door closes properly. - Page 11 IMPORTANT Please consult your Crystal Fire instruction manual for detailed instructions and important information related to hooking up your linear burner, including safety information, proper tightening of connections with two wrenches and full burner setup and lighting instructions. DO NOT ATTEMPT TO INSTALL CF-1242 BURNER WITHOUT FIRST CONSULTING THE CRYSTAL FIRE OWNER’S MANUAL.
