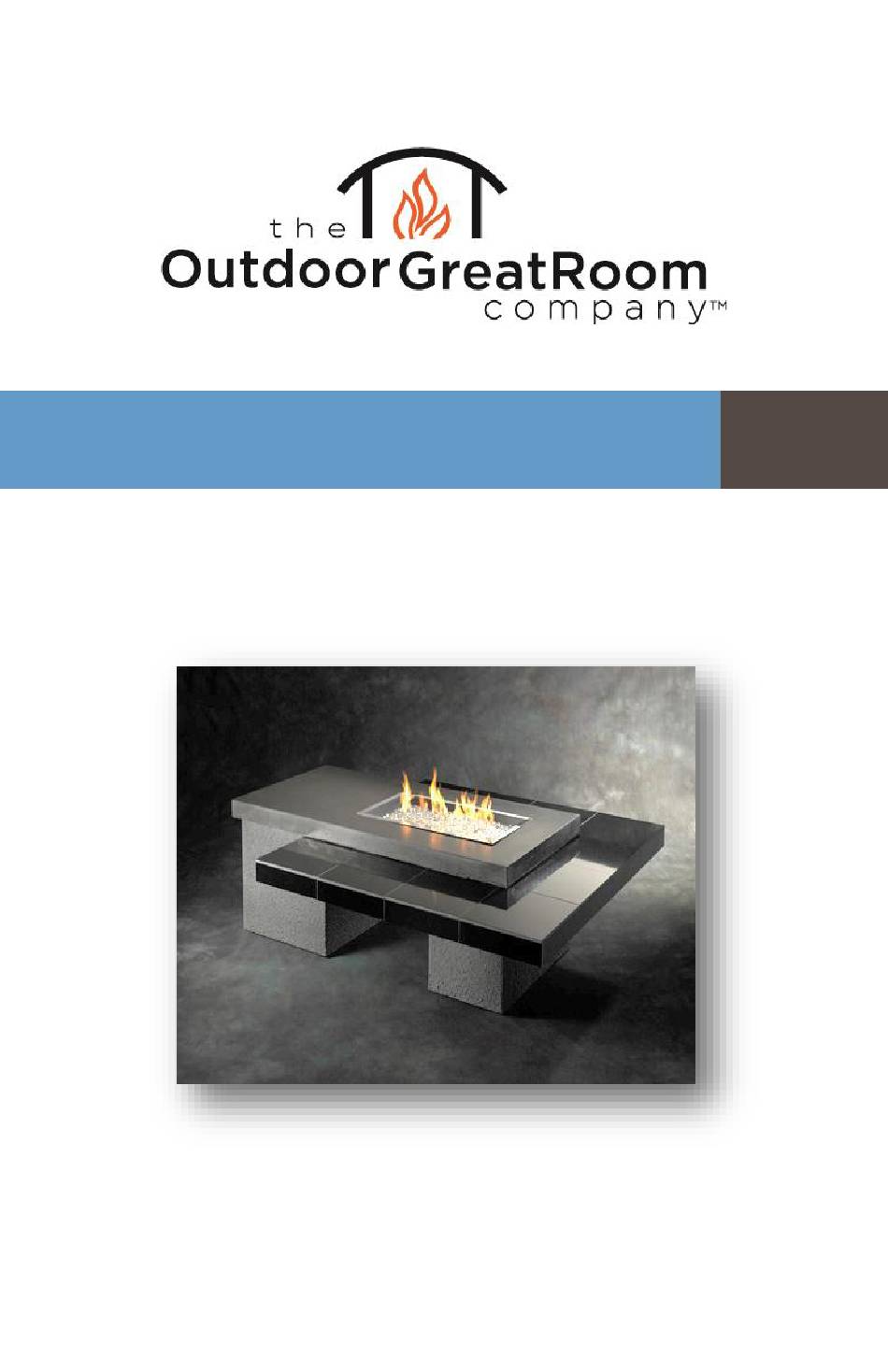

- Page 1 Uptown Fire Pit Table Installation Instructions P a g e...
- Page 2 Contents Contents……………………………………………………..2 Required Tools…………………………………………..3 Placing and assembling the Table.……4 Gas Connection………………………….…………….5 Igniter Installation…………….………………………...6 Locating Propane tank……………………………8 Finishing Touches……………………………………….9 P a g e 90223:C 8.2.16...
- Page 3 Required Tools Utility Knife To cut and remove packaging 2 Open Ended Wrenches To make gas connections Leather Gloves To protect hands from rough edges found on the coffee table. One (1) AAA Battery (not included) Required for piezoelectric igniter installation.
- Page 4 Placing and Assembling the Fire Pit table 1. Remove access door from box and set aside. 2. Remove all components from packaging. 3. Move the base sections without door to desired location and set into place spaced approximately 21” from each other. 4.
- Page 5 6. Insert supplied sheet metal screws into the locations shown by arrows below. This secures the granite tile top to the base. Align smaller base with concrete top as shown by dashed line. Read and understand your Crystal Fire owner’s manual before beginning burner hookups or using the device.
- Page 6 Gas Connection 1. Lift burner out of top and set aside 2. Connect the incoming gas line and flexible metal gas line from the valve to the underside of burner, running flex hose through access hole as shown before connecting line to valve.
- Page 7 Igniter Installation (If your igniter only has one port on the back, please ignore instructions for grounding. Your igniter is a self-grounding model) 1. Make sure the valve is in the OFF position 2. Unscrew sparker cap and hex nut. Install as shown below.
- Page 8 3. To properly install ignition system, a spark and ground wire need to be attached to the igniter box. Start by plugging the spark wire (hanging from the underside of the sparking tip) on the burner into one side of the black igniter box on your control panel. ...
- Page 9 Locating your Tank 1. Your tank should be positioned so that the fuel can be shut off after each use. 2. Slide the tank into the framework past the line shown below. This is to allow the door to close completely. 3.
- Page 10 Finishing touches Once fire pit is set up and in the desired position, scatter decorative glass on burner surface forming an even layer of beads. DO NOT BURN WITHOUT GLASS OR OTHER DECORATIVE SUBSTRATE PRESENT IMPORTANT Please consult your Crystal Fire instruction manual for detailed instructions and important information related to hooking up your linear burner, including safety information, proper tightening of connections with two wrenches and full burner setup and lighting...
- Page 11 Warranty: Fire pit tables are covered under a 1- year manufacturer’s warranty. Please visit http://www.outdoorrooms.com/warranty-form to register your product. 11 | P a g e...
- Page 12 © 2011 The Outdoor GreatRoom Company 14400 Southcross Drive West • Suite 100 • Burnsville, MN 55306 Toll Free: 1-866-303-4028 • Sales@OutdoorRooms.com 12 | P a g e...
