Summary of Contents for Ruijie Reyee RG-RAP62
- Page 1 Ruijie Reyee RG-RAP62 Access Point Installation Guide Document Version: V1.0 Date: February 27, 2025 Copyright © 2025 Ruijie Networks...
- Page 2 Ruijie Networks reserves the right to modify the content of the document without any notice or prompt. This manual is designed merely as a user guide. Ruijie Networks has tried its best to ensure the accuracy and reliability of the content when compiling this manual, but it does not guarantee that the content of the manual is completely free of errors or omissions, and all the information in this manual does not constitute any explicit or implicit warranties.
- Page 3 Preface Audience This document is intended for: Network engineers Technical support and servicing engineers Network administrators Technical Support Official Website of Ruijie Reyee: https://reyee.ruijie.com Technical Support Website: https://reyee.ruijie.com/en-global/support Case Portal: https://www.ruijienetworks.com/support/caseportal Community: https://community.ruijienetworks.com ...
- Page 4 Note An alert that contains additional or supplementary information that if not understood or followed will not lead to serious consequences. Specification An alert that contains a description of product or version support. Note This manual provides installation steps, troubleshooting, technical specifications, and usage guidelines for cables and connectors.
- Page 5 Contents Preface ..............................I 1 Overview ............................1 1.1 About the RG-RAP62 ........................ 1 1.2 Package Contents........................1 1.3 Product Appearance ........................2 1.3.2 Front Panel ........................2 1.3.3 Rear Panel ........................3 1.4 Technical Specifications ......................4 1.5 Power Supply Technical Specifications ..................6 1.6 Cooling ............................
- Page 6 2.3 Tools ............................11 3 Installing the AP..........................12 3.1 Before You Begin ........................12 3.2 Safety Precautions During Installation ..................12 3.3 Installing the AP ........................13 3.4 Removing the AP ........................16 3.5 Connecting Cables........................16 3.6 Bundling Cables ........................17 3.7 Verifying the Installation ......................
- Page 7 6.2.3 A Client Cannot Discover the AP ................. 21 7 Appendix ............................23 7.1 Connectors and Media ......................23 7.1.1 10/100/1000BASE-T Port .................... 23 7.2 Cabling Recommendations...................... 25 7.2.1 Requirements for the Minimum Bend Radius of Ethernet Cables ......25 7.2.2 Precautions for Cable Bundling ...................
- Page 8 Overview About the RG-RAP62 The RG-RAP62 is a cost-effective Wi-Fi 6 dual-band ceiling access point (AP) launched by Ruijie Reyee for indoor Wi-Fi coverage scenarios. It supports IEEE 802.3af and IEEE 802.3at standards as well as local 12 V DC power supply. Compliant with IEEE 802.11a/b/g/n/ac Wave 1/Wave 2/ax Wi-Fi standards, the RG-RAP62 features dual-stream MU-MIMO technology and built-in omni-directional antennas.

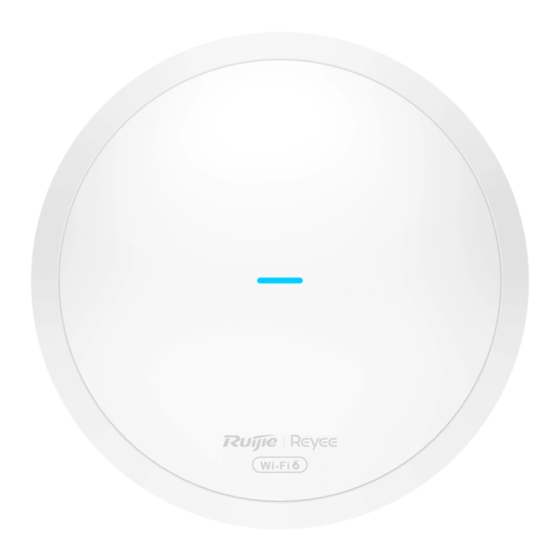

- Page 9 Ruijie Reyee RG-RAP62 Access Point Installation Guide Overview Product Appearance Figure 1-1 Product Appearance 1.3.2 Front Panel Figure 1-2 Front Panel Table 1-2 LEDs Item Status Description Solid blue The AP is operating normally without any alarms. System...
- Page 10 Ruijie Reyee RG-RAP62 Access Point Installation Guide Overview Item Status Description status LED The AP is not receiving power. Fast blinking blue (eight The AP is starting up. blinks per second) Slow blinking blue (one blink The AP is not connected to the Internet.
- Page 11 Ruijie Reyee RG-RAP62 Access Point Installation Guide Overview Table 1-3 Components on the Rear Panel Item Description RESET button Press and hold for less than 2 seconds: Restart the AP. Press and hold for more than 5 seconds: Restore the AP to factory settings.
- Page 12 Ruijie Reyee RG-RAP62 Access Point Installation Guide Overview 11a/g: –89 dBm (6 Mbps), –80 dBm (24 Mbps), –76 dBm (36 Mbps), –71 dBm (54 Mbps) 11n: –83 dBm (MCS0), –65 dBm (MCS7), –83 dBm (MCS8), –65 dBm (MCS15) 11ac: 20 MHz: –83 dBm (MCS0), –57 dBm (MCS9) 11ac: 40 MHz: –79 dBm (MCS0), –57 dBm (MCS9)
- Page 13 Ruijie Reyee RG-RAP62 Access Point Installation Guide Overview Status LED 1 x system status LED DC power supply using a power adapter (input voltage and current: 12 V/1.5 A) Caution The power adapter is optional. DC connector dimensions: inner diameter: 2.1 Power Supply mm (0.08 in.);...
- Page 14 Ruijie Reyee RG-RAP62 Access Point Installation Guide Overview Cooling The AP adopts a fanless design. Caution Ensure that there is sufficient space around the AP for heat dissipation.
- Page 15 Ruijie Reyee RG-RAP62 Access Point Installation Guide Preparing for Installation Preparing for Installation Safety Guidelines Note To avoid personal injury or equipment damage, review the safety guidelines in this chapter before you begin the installation. The following safety guidelines may not include all the potentially hazardous situations.
- Page 16 Ruijie Reyee RG-RAP62 Access Point Installation Guide Preparing for Installation Make sure that the equipment is powered off when you cut off the power supply. Do not place the equipment in a damp/wet location. Do not let any liquid enter the chassis.
- Page 17 Ruijie Reyee RG-RAP62 Access Point Installation Guide Preparing for Installation 2.2.5 Cleanliness Requirements Dust poses a major threat to the equipment. The indoor dust takes on a positive or negative static electric charge when falling on the switch, causing poor contact of the metallic joint. Such electrostatic adhesion may occur more easily when the relative humidity is low, not only affecting the service life of the equipment, but also causing communication faults.
- Page 18 Ruijie Reyee RG-RAP62 Access Point Installation Guide Preparing for Installation Keep the indoor installation environment clean and free of dust; and Maintain appropriate temperature and humidity conditions. 2.2.7 EMI Requirements Keep the equipment far away from grounding or lightning protection devices for power equipment.
- Page 19 Ruijie Reyee RG-RAP62 Access Point Installation Guide Installing the AP Installing the AP The AP is required to be fixed indoors. Caution Before installing the equipment, ensure that guidelines and requirements in Chapter 2 have been met. Before You Begin Carefully plan and arrange the installation position, networking mode, power supply, and cabling before installation.
- Page 20 Ruijie Reyee RG-RAP62 Access Point Installation Guide Installing the AP Installing the AP Note For indoor environments, ceiling mounting is preferred because it offers a broader coverage area than wall mounting. This installation guide is for reference only. The actual installation procedure may differ depending on the specific physical product.
- Page 21 Ruijie Reyee RG-RAP62 Access Point Installation Guide Installing the AP Caution The plane deviation of the wall in a specific area should be within 2 mm (0.08 in.), and the recommended torque for installation is 4kgf.cm. In case of uneven installation site, mount the AP on a protruding wall.
- Page 22 Ruijie Reyee RG-RAP62 Access Point Installation Guide Installing the AP (4) Align the slots on the rear of the AP with the square feet on the mounting bracket, and slide the AP into the mounting bracket slowly to ensure that the AP is secured.
- Page 23 Ruijie Reyee RG-RAP62 Access Point Installation Guide Installing the AP Caution Before securing the AP to the mounting bracket, connect the cables first. The slots on the rear of the AP must be aligned with and slid into the square feet on the mounting bracket.
- Page 24 Ruijie Reyee RG-RAP62 Access Point Installation Guide Installing the AP Bundling Cables Precautions Bundle the cable in a visually pleasing way. Bend twisted pairs naturally or to a large radius close to the connector. Do not over-tighten the twisted pair bundle as it may reduce the cable life and performance.
- Page 25 Ruijie Reyee RG-RAP62 Access Point Installation Guide Commissioning Commissioning Setting Up the Configuration Environment After powering on the AP through a DC power adapter or a PSE, ensure that the power cord is properly connected and meets safety requirements. Powering on the AP 4.2.1...
- Page 26 Ruijie Reyee RG-RAP62 Access Point Installation Guide Commissioning (2) Open a browser on the PC and enter 10.44.77.254 to log in to the web interface. The default password is admin for the first login. For security purposes, change the default password after login.
- Page 27 Ruijie Reyee RG-RAP62 Access Point Installation Guide Monitoring and Maintenance Monitoring and Maintenance Monitoring When the RG-RAP62 is operating, you can monitor the device running status by observing the LED. For LED status description, see Table 1-2 LEDs. Hardware Maintenance...
- Page 28 Ruijie Reyee RG-RAP62 Access Point Installation Guide Common Troubleshooting Common Troubleshooting Troubleshooting Flowchart Start Check whether the AP is installed properly. Check whether the power supply is properly connected. Check whether the LED is normal. Check whether cables are properly connected with ports.
- Page 29 Ruijie Reyee RG-RAP62 Access Point Installation Guide Common Troubleshooting (3) Verify that the AP is correctly configured. (4) Move the client closer to the AP.
- Page 30 Ruijie Reyee RG-RAP62 Access Point Installation Guide Appendix Appendix Connectors and Media 7.1.1 10/100/1000BASE-T Port A 10/100/1000BASE-T port supports three rates with auto-negotiation, and supports the automatic MDI/MDIX crossover function at these three rates. Compliant with IEEE 802.3ab, the 1000BASE-T port requires Cat5/5e or higher 100-ohm unshielded twisted pair (UTP) or shielded twisted pair (STP) cables with a maximum distance of 100 m (328.08 ft.).
- Page 31 Ruijie Reyee RG-RAP62 Access Point Installation Guide Appendix The following figure shows feasible connections of the straight-through and crossover twisted pairs for a 10BASE-T/100BASE-TX port. Figure 7-2 10BASE-T/100BASE-TX Twisted Pair Connections...
- Page 32 Cabling Recommendations During installation, route cable bundles upward or downward along the sides of the rack depending on the actual situation in the equipment room. All adapted connectors should be placed at the bottom of the rack in an orderly manner, and cannot be exposed outside the rack.
- Page 33 Ruijie Reyee RG-RAP62 Access Point Installation Guide Appendix The metal holes traversed by cables should have a smooth and fully rounded surface or an insulated lining. Use cable ties to bundle up cables properly. Do not connect two or more cable ties to bundle up cables.
- Page 34 Ruijie Reyee RG-RAP62 Access Point Installation Guide Appendix at the position of the power cords, the remaining cable part should not touch heat sources, sharp corners, or sharp edges. If heat sources cannot be avoided, high-temperature cables should be used.
