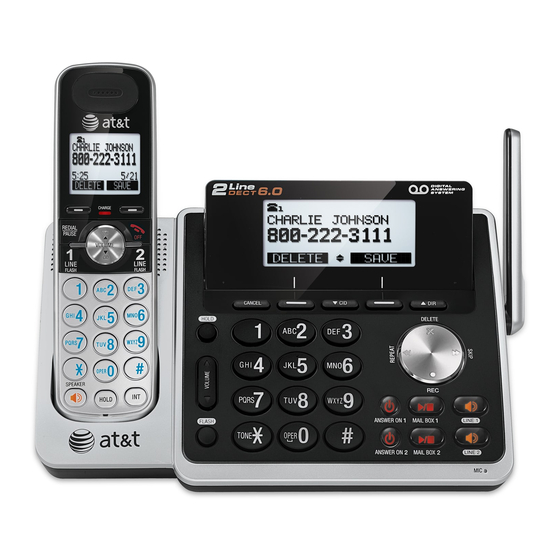

AT&T TL88102 Start Manual

Quick start guide
TL88102/TL88202
This quick start guide provides you with basic instructions only.
For more complete instructions, refer to your user's manual
provided in the package, or see the online user's manual at
www.telephones.att.com/manuals.
Telephone base installation
Option 1: Installation with 2-line jack
Plug one end of the black telephone
Plug the large end of the telephone
line cord into the 2-line telephone wall
base power adapter into a power
outlet not controlled by a wall jack or a DSL filter.
switch.
A DSL filter (not included) is
required if you have DSL high-
speed Internet service.
The DSL filter must be plugged
into the telephone wall jack.
Raise the
antenna.
Plug the other end of the black
telephone line cord into the
LINE 1/L1+L2 telephone jack
at the back of the telephone
base.
Route the power adapter Plug the small end of the telephone base
cord through this slot. power adapter into the power adapter jack
on the back of the telephone base.
Option 2: Installation with separate line jacks
Plug one end of the black telephone
line cord into the line 2 telephone wall
jack or a DSL filter.
Plug one end of the clear telephone
line cord into the line 1 telephone
wall jack or a DSL filter.
DSL filters (not
included) are required
if you have DSL high-
speed Internet service.
The DSL filter must
be plugged into the
telephone wall jack.
Plug the large end of the
telephone base power
adapter into a power outlet
not controlled by a wall Plug the other end of the
black telephone line cord
switch.
into the LINE 2 telephone
jack at the back of the
Raise the antenna.
telephone base.
Route the power
adapter cord through
this slot.
Plug the small end of the telephone base Plug the other end of the clear telephone line cord
power adapter into the power adapter jack into the LINE 1/L1+L2 telephone jack at the back
on the back of the telephone base. of the telephone base.
Charger installation
Plug the power adapter into a power outlet not
controlled by a wall switch.
Caution: Use only the power adapter(s) provided with this product. To obtain a replacement,
www.telephones.att.com 1 (800) 222-3111
visit our website at or call
1 (866) 288-4268
In Canada, dial .
Battery installation
Install the battery as shown below. Charge your handset(s) before initial use.
The battery is fully charged after 16 hours of continuous charging.
Step 1 Step 2
Plug the battery Align the cover flat
connector securely against the battery
into the socket inside compartment, then
the handset battery slide it upwards until
compartment. Insert it clicks into place.
the supplied battery
with the label THIS
SIDE UP facing up as
indicated.
CHARGE light Step 3
Charge the handset by placing it face forward
in the telephone base or charger. The CHARGE
light under the screen of the handset is on during
charging.
Use only the supplied rechargeable battery or replacement battery (model BT183342).
Quick reference guide - handset
CHARGE light
Soft keys (2)
• On when the handset is charging in
• Press to select a menu item displayed above
the telephone base or charger.
the key.
OFF
REDIAL/PAUSE
• During a call, press to hang up.
• Press to review the redial list.
• Press and hold while the
• While dialing or entering
telephone is not in use to erase
numbers into the directory,
the missed calls indicator.
press and hold to insert a
dialing pause.
• Press to delete a digit or
.
character while entering a
number or name.
DIR/VOLUME
• While in a menu, press to
• Press to enter the directory cancel an operation, back up to
when the telephone is not in the previous menu, or exit the
use. menu display, or press and hold
to return to the idle mode.
• Press to scroll up while in
menus.
• During a call or message
playback, press to increase the
CID/VOLUME
listening volume.
• Press to review the call log
• While entering names or
when the telephone is not in
numbers, press to move the
use.
cursor to the right.
• Press to scroll down while in
menus.
LINE 1/FLASH
• During a call or message
playback, press to decrease the
• Press to make or answer a call
listening volume.
on line 1.
• While entering names or
• During a call, press to answer
numbers, press to move the
an incoming call on line 1 when
cursor to the left.
you receive a call waiting alert.
LINE 2/FLASH
1
• Press to make or answer a call
• While reviewing a call log
on line 2.
entry, press repeatedly to
add or remove 1 in front of • During a call, press to answer
the telephone number before an incoming call on line 2 when
dialing or saving it in the you receive a call waiting alert.
directory.
# (pound key)
/SPEAKER • Press repeatedly to show other
dialing options when reviewing
• Press to make or join a call
a call log entry.
using the first available line,
starting with line 1.
HOLD INT
• Press to answer a call using the
• Press to put a call on • Press to initiate an intercom
speakerphone.
hold. conversation or transfer a call.
• During a call, press to switch
between speakerphone and
handset use.
Quick reference guide - telephone base
/VOLUME/
• During a call, press to adjust the speakerphone X/DELETE
volume.
• Press to delete
• Press to adjust the volume during message messages.
playback.
• While the telephone base is ringing, press the /REPEAT
increase or decrease the ringer volume.
• Press to repeat a
• When the telephone is not in use, press to
message or press twice
adjust the telephone base ringer volume for all to play the previous
lines.
message.
1
/SKIP
• While reviewing a call log
• Press to skip to the next
entry, press repeatedly to
message.
add or remove 1 in front of
the telephone number before
•/REC
dialing or saving it in
• Press to record a
the directory.
memo or an outgoing
announcement.
Large tilt display
• Move the top of the
display forward or
backward to adjust
the angle of the
screen for maximum
visibility.
HOLD
• Press to put a call
on hold.
/LINE 1
FLASH
• Press to make or answer a
• During a call, press to answer
an incoming call when you call on line 1.
receive a call waiting alert.
/LINE 2
• Press to make or answer a
call on line 2.
# (pound key)
• Press repeatedly to show other
dialing options when reviewing a /MAIL BOX 1
call log entry.
• Press to start or stop
message playback of the
/ANSWER ON 1 mailbox of line 1.
• Press to turn the answering system
of line 1 on or off.
/MAIL BOX 2
• Press to start or stop
/ANSWER ON 2
message playback of the
mailbox of line 2.
• Press to turn the answering system
of line 2 on or off.
CID DIR
• Press to review the call log when the • Press to enter the directory when the
telephone is not in use. telephone is not in use.
• Press to scroll down while in menus. • Press to scroll up while in menus.
• While entering names or numbers, • While entering names or numbers, press
press to move the cursor to the left. to move the cursor to the right.
CANCEL
• While in a menu setting item, press to
BASE
exit without making changes or press
12:45am 12/31
and hold to return to idle mode. REDIAL MENU
• While the telephone base is ringing,
press to silence the ringer temporarily.
• Press and hold to erase the missed
calls indicator while the telephone is
not in use.
Soft keys (2)
• While entering names or numbers,
press to delete a character or a digit.
• Press to select a menu item
displayed above the key.
