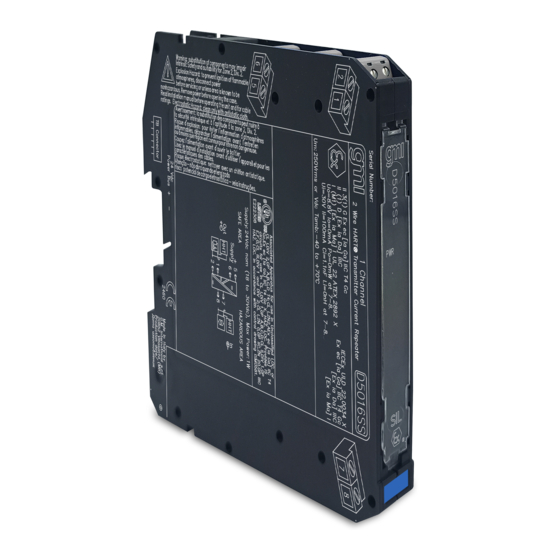

- Page 1 D5016SS - D5016SK - D5016DS - D5016DK INSTRUCTION MANUAL ® SIL 3 2-wire Active HART Tx Current Repeater DIN-Rail and Termination Board, Models D5016SS, D5016SK, D5016DS, D5016DK D5016 - SIL 3 4-wire HART® Transmitter Current Repeater G.M. International ISM0553-0...
- Page 2 Current consumption: 32 mA (D5016SS), 20 mA (D5016SK), 60 mA (D5016DS), 30 mA (D5016DK) @ 24 Vdc with 20 mA output, typical. Power dissipation: 0.80 W (D5016SS), 1.00 W (D5016SK), 1.50 W (D5016DS), 1.74 W (D5016DK) @ 24 Vdc with 20 mA output on 250 Ω load and 24 Vdc output supply for sink models, typical.
- Page 3 Ordering Information Power Bus and DIN-Rail accessories: Model: D5016 Bus Connector JDFT049 Bus Mounting Kit OPT5096 1 channel source output 1 channel sink output 2 channels source outputs 2 channels sink outputs Front Panel and Features Input from Zone 0 / Division 1. ...
- Page 4 Parameters Table In the system safety analysis, always check the Hazardous Area/Hazardous Locations devices to conform with the related system documentation, if the device is Intrinsically Safe check its suitability for the Hazardous Area/Hazardous Locations and group encountered and that its maximum allowable voltage, current, power (Ui/Vmax, Ii/Imax, Pi/Pi) are not exceeded by the safety parameters (Uo/Voc, Io/Isc, Po/Po) of the D5016 series Associated Apparatus connected to it.
- Page 5 CLASS II, DIVISION 1, GROUPS E, F, G, CLASS III, DIVISION 1, GROUPS A, B, C, D T-Code T4, CLASS I, ZONE 2, GROUP IIC T4 CLASS I, ZONE 0, GROUP IIC D5016S* D5016SS D5016SK External Source I Sink I...
- Page 6 Warning D5016 series are isolated Intrinsically Safe Associated Apparatus installed into standard EN/IEC60715 TH 35 DIN-Rail located in Safe Area or Zone 2, Group IIC, Temperature T4 or Class I, Division 2, Group A, B, C, D, T4 Hazardous Area within the specified operating temperature limits Tamb -40 to +70 °C, and connected to equipment with a maximum limit for power supply Um of 250 Vrms or Vdc.
