INSTALL THE PATHPILOT OPERATOR CONSOLE
11. Connect the barrel end of the power supply cable to the Power Supply port on the operator console.

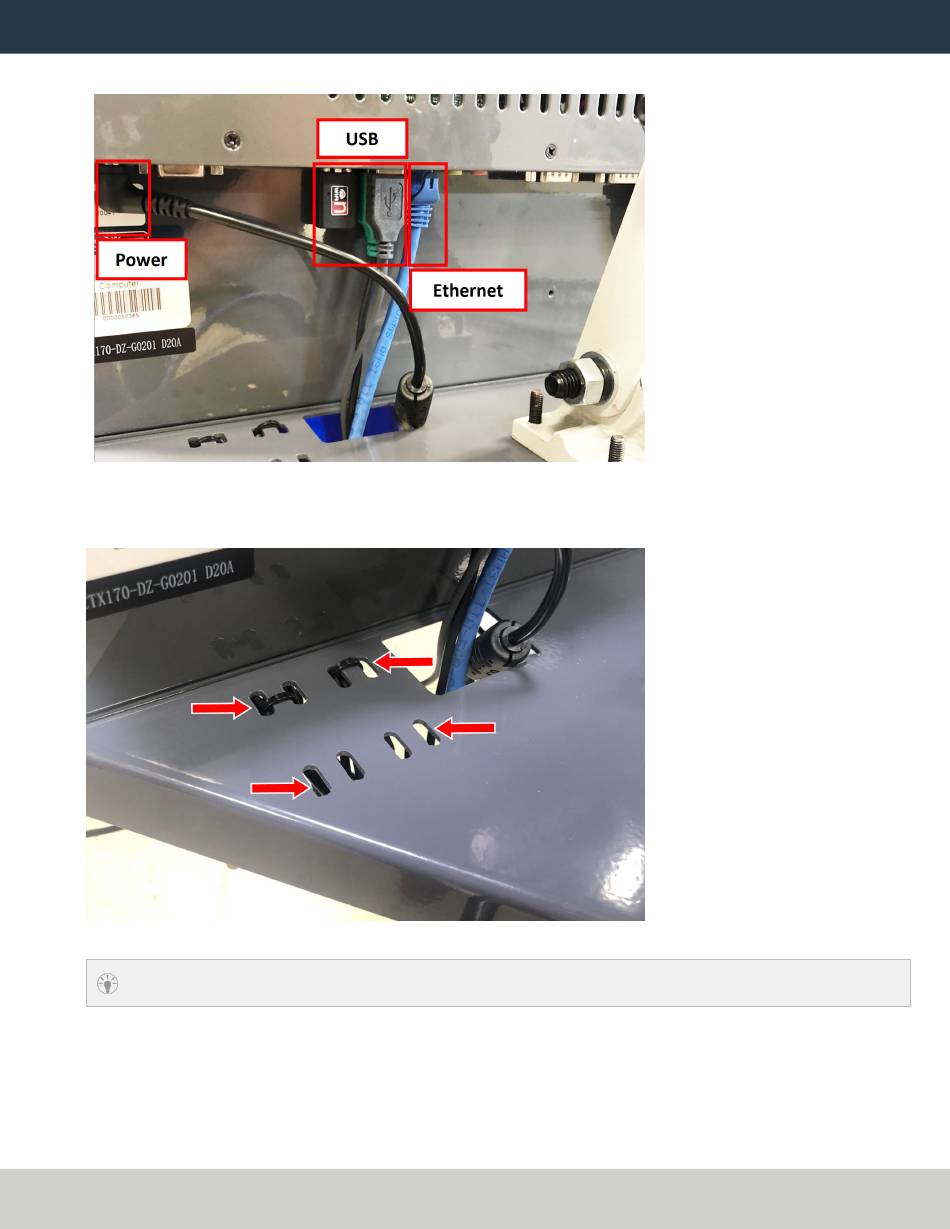

Figure 9: USB accessories connected.
12. Route the loose ends of the USB, Ethernet, and power supply cables through the square hole in the keyboard
tray. Then, use the cable tie holes to secure the loose power supply and USB cables.
Figure 10: Cable tie holes.
Tip! If you're using a mouse, we recommend leaving some slack for it to move freely.
