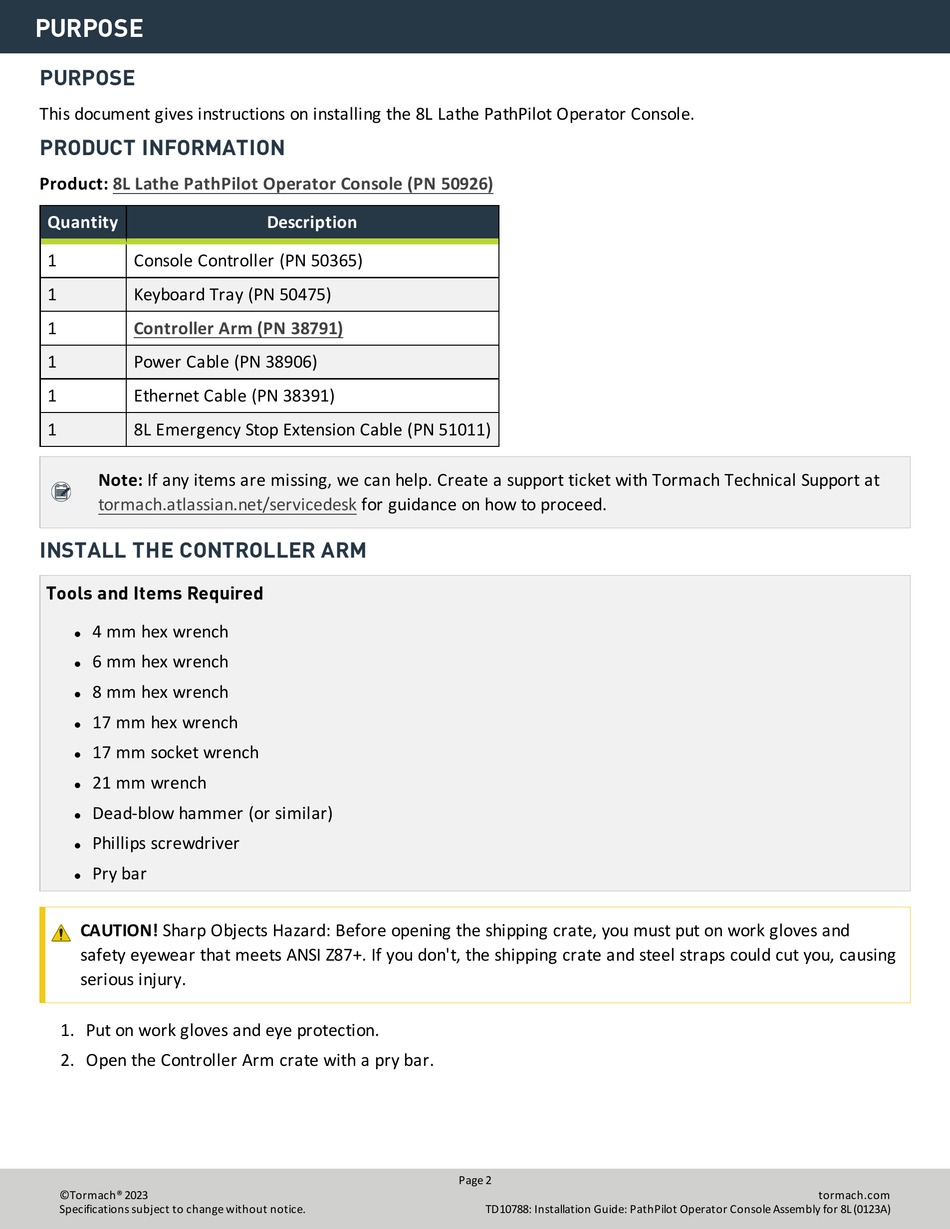

PURPOSE
PURPOSE
This document gives instructions on installing the 8L Lathe PathPilot Operator Console.

PRODUCT INFORMATION

Product: 8L Lathe PathPilot Operator Console (PN 50926)
Quantity
1 Console Controller (PN 50365)
1 Keyboard Tray (PN 50475)
1 Controller Arm (PN 38791)
1 Power Cable (PN 38906)
1 Ethernet Cable (PN 38391)
1 8L Emergency Stop Extension Cable (PN 51011)
Note: If any items are missing, we can help. Create a support ticket with Tormach Technical Support at
tormach.atlassian.net/servicedesk
INSTALL THE CONTROLLER ARM
Tools and Items Required
4 mm hex wrench
l
6 mm hex wrench
l
8 mm hex wrench
l
17 mm hex wrench
l
17 mm socket wrench
l
21 mm wrench
l
Dead-blow hammer (or similar)
l
Phillips screwdriver
l
Pry bar
l
CAUTION! Sharp Objects Hazard: Before opening the shipping crate, you must put on work gloves and
safety eyewear that meets ANSI Z87+. If you don't, the shipping crate and steel straps could cut you, causing
serious injury.
1. Put on work gloves and eye protection.
2. Open the Controller Arm crate with a pry bar.
©Tormach® 2023
Specifications subject to change without notice.
Description
for guidance on how to proceed.
