INSTALL THE PATHPILOT OPERATOR CONSOLE
INSTALL THE PATHPILOT OPERATOR CONSOLE
Tools and Items Required
16 mm wrench
l
Metric hex wrench set
l
Phillips screwdriver
l
1. Put the operator console against the monitor mounting plate and align the holes. Attach the operator
console and monitor mounting plate together with four M4 × 12 mm socket head cap screws (provided with
the operator console).

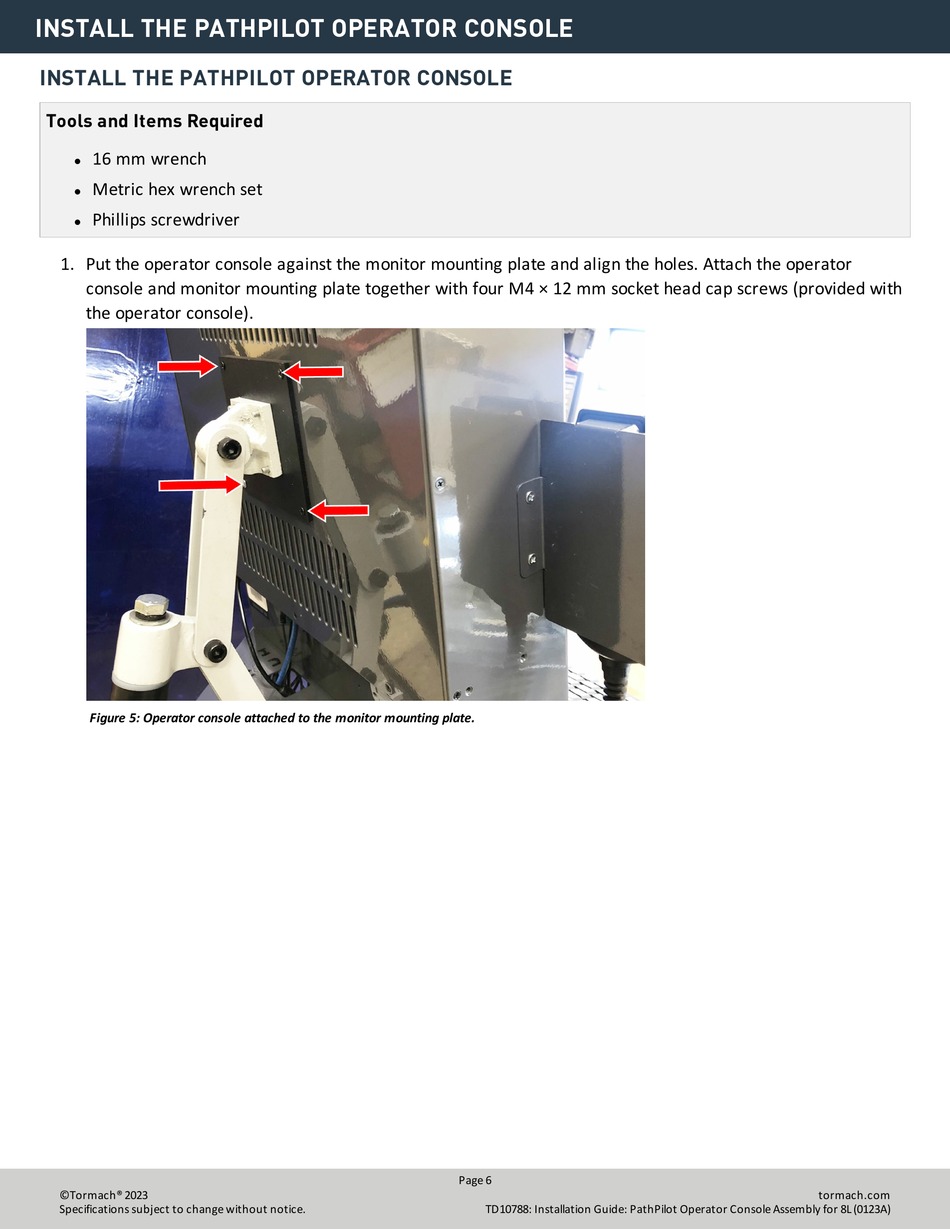

Figure 5: Operator console attached to the monitor mounting plate.
