INSTALL THE PATHPILOT OPERATOR CONSOLE
18. In the electrical cabinet, identify the jumper wire labeled Remove to Install Console, and remove it from
the machine.
WARNING! You must move the jumper from the machine. If the jumper isn't removed, the console's
Emergency Stop button won't function.

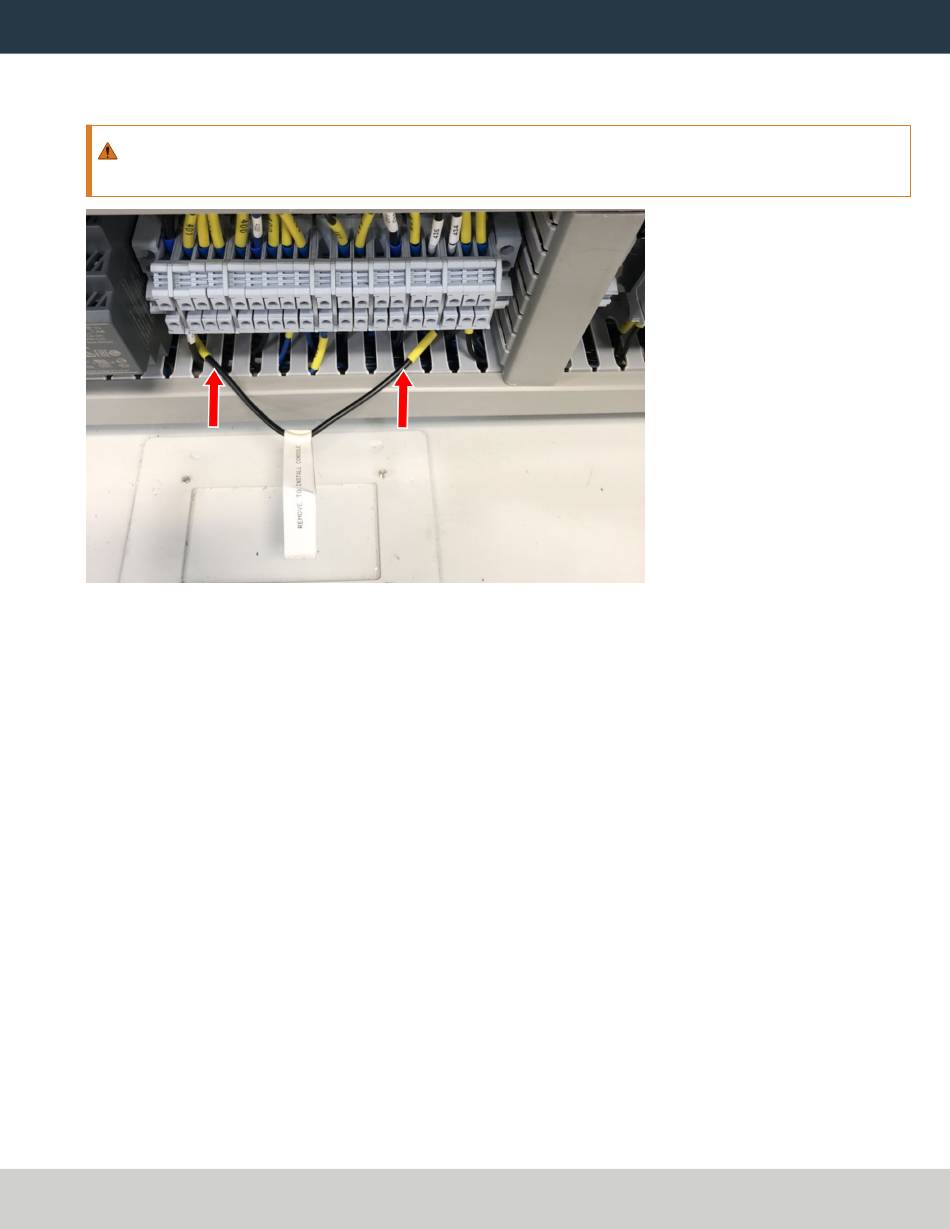

Figure 12: Jumper wire labeled Remove to Install Console.
19. Verify that the terminals are securely screwed down after removing the jumper wire.
20. Close the electrical cabinet door.
