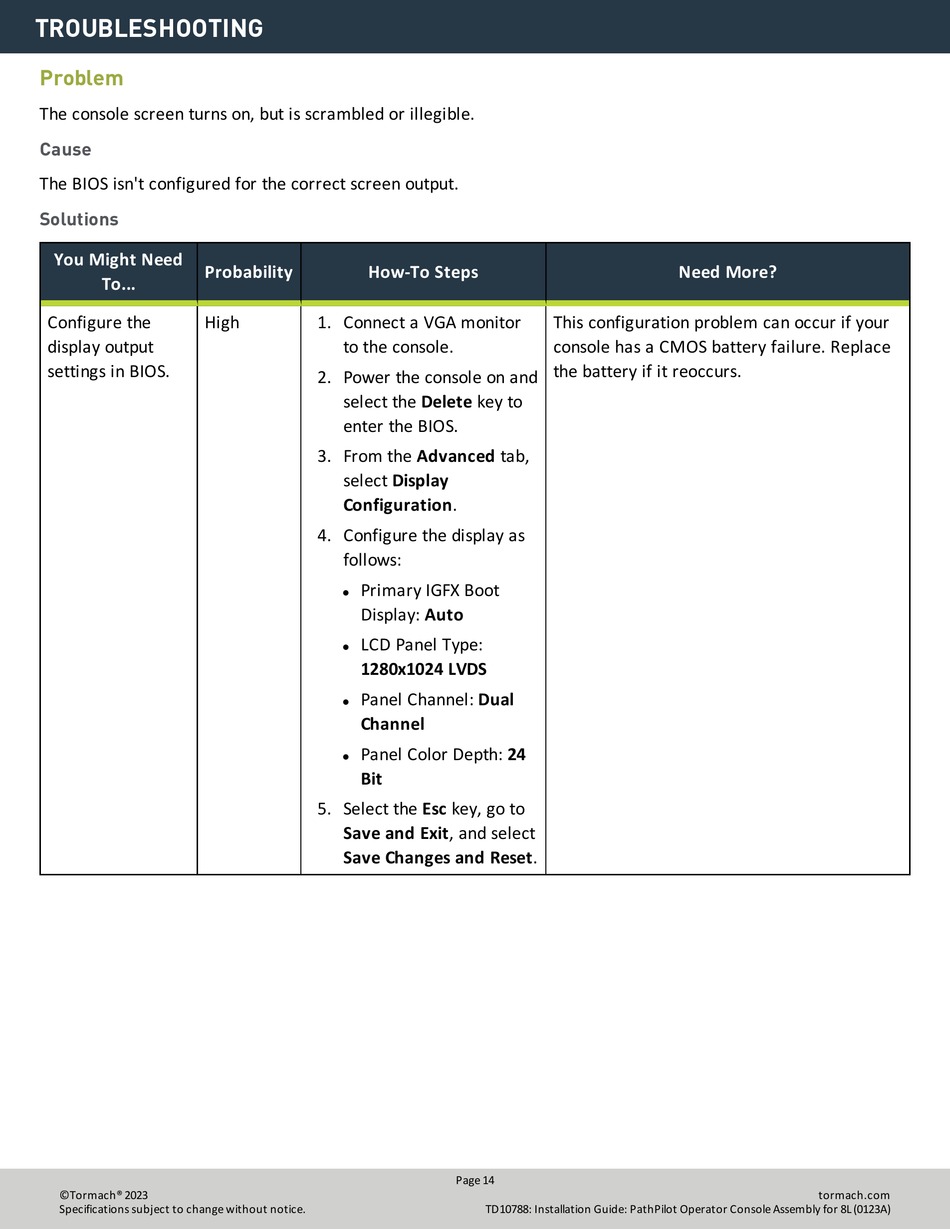

Tormach PathPilot Installation Manual page 14

TROUBLESHOOTING
Problem
The console screen turns on, but is scrambled or illegible.
Cause
The BIOS isn't configured for the correct screen output.
Solutions
You Might Need
Probability
To...
Configure the High
display output
settings in BIOS.
©Tormach® 2023
Specifications subject to change without notice.
How-To Steps
1. Connect a VGA monitor
to the console.
2. Power the console on and
select the Delete key to
enter the BIOS.
3. From the Advanced tab,
select Display
Configuration.
4. Configure the display as
follows:
Primary IGFX Boot
l
Display: Auto
LCD Panel Type:
l
1280x1024 LVDS
Panel Channel: Dual
l
Channel
Panel Color Depth: 24
l
Bit
5. Select the Esc key, go to
Save and Exit, and select
Save Changes and Reset.
Page 14
TD10788: Installation Guide: PathPilot Operator Console Assembly for 8L (0123A)
Need More?
This configuration problem can occur if your
console has a CMOS battery failure. Replace
the battery if it reoccurs.
