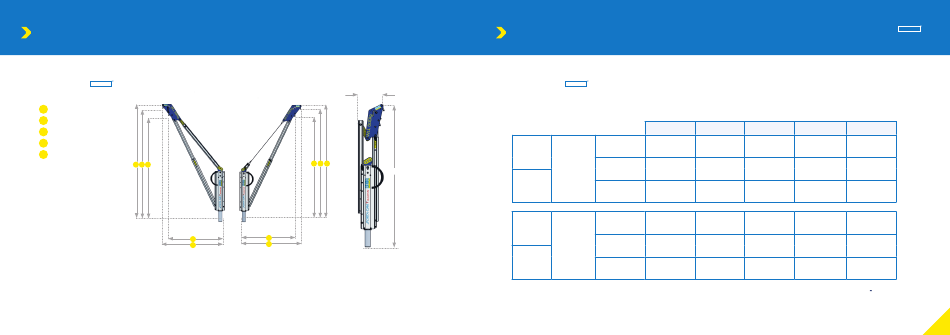

Dimensions
(Winched)
PORTADAVIT
QUANTUM
A
Overall height
B
Height to outer shackle
C
Height to inner shackle
D
Radius to outer shackle
E
Radius to inner shackle
A B C
A
B
C
E
E
D
D
(Shackled)
116.5"
C
C B A
B
A
66.14"
E
E
D
D
Dimensions
PORTADAVIT
QUANTUM
Radius
Adjustment
Points
Part Number
Capacity (lbs)
A
1
79"
US-PDQ1S
1320lbs
2
81¼"
US-PDQ1W
3
83"
1
72¼"
US-PDQ2S
1100lbs
2
74¾"
US-PDQ2W
3
77"
PORTADAVIT
Dimensions
B
C
D*
E*
76¼"
70¾"
47¼"
43¼"
78¼"
72¾"
43¼"
39¼"
80¼"
74½"
39¼"
35½"
69½"
64¾"
59"
55"
72"
67"
55"
51¼"
74¼"
69"
51¼"
47¼"
Dimensions are the same for Type S (Shackle only) and Type W (Winched).
* Radii achieved at 75% Capacity
