Variants & Options
The list below outlines additional options When the rotational handle is attached to the
available which can be fitted to the PORTADAVIT Davit the following points must be observed:
QUANTUM;
Attach the rotational handle to the column of
the Davit at a suitable height [Ideal position
Rotational Handle
should be around hip height]. Secure in place
Rotational Handle with the pins provided. [See Figure 1]
A rotational handle can be fitted to the column of Rotate the handle upwards 90° to be
the Davit to aid rotation underload. Dependent perpendicular to the Davit column. [See
on the load lifted, users can experience a range Figure 2].
of efforts.
Push and pull the handle to rotate the Davit.
To ease some of the higher efforts, as well as [See Figure 3].
using the handle, users can attach a rope to the
front shackles in the head of the davit to support
the rotation.
The rotation should be done in a controlled
manner.

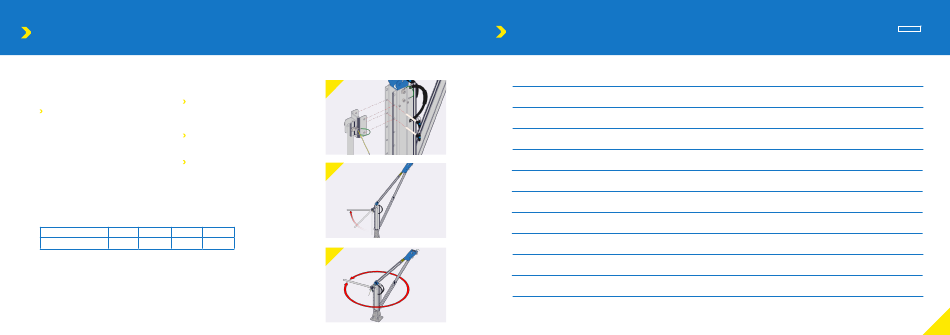

Rotation Handle Approx Effort
Davit Load [lb] 660 880 1100 1320
Approximate Effort [lb] 55 77 88 110
Fig 1
Fig 2
Fig 3
