Summary of Contents for Speco O4B9

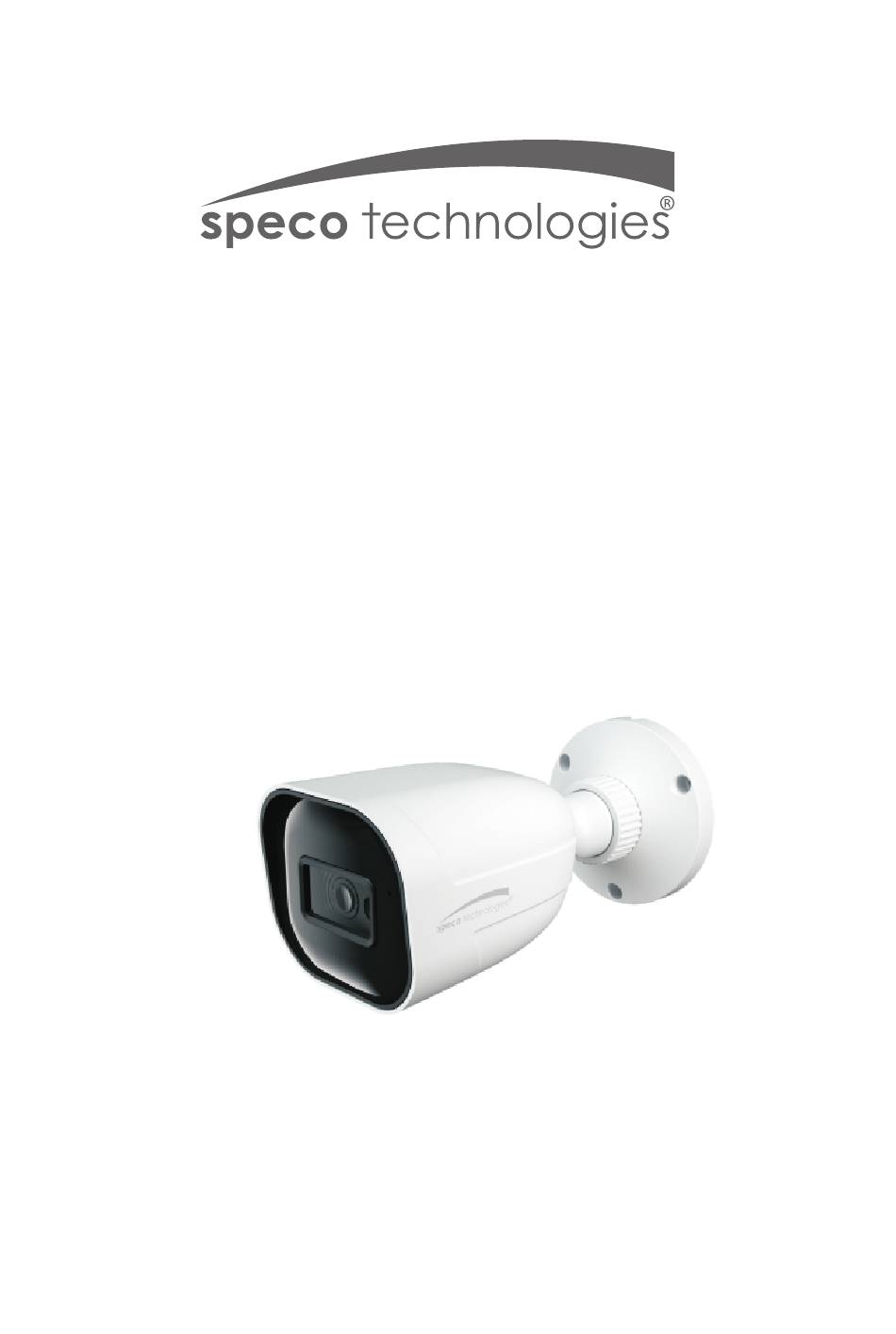

- Page 1 Quick Start Guide O4B9...
- Page 2 This owner's manual is designed to be a reference tool for your system. Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, contact Speco Technologies Tech Support at 1-800-645-5516 Important Safeguards and Warning 1.
- Page 3 Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation. Note: Before installation, check the package and make sure that all components are included.
- Page 4 Camera Quick start guide Junction box Screws (PA 4 ×25mm) 8 Plastic screw anchors Drill Template Screw (PWM3 5mm) × 3 Screws 4 Rubber o-rings for (PM 4 10mm) × screws Overview Overview To remove the bezel, insert the slotted screwdriver to the slot of the bezel indicated by the arrow and then open the bezel portion only.
-
Page 5: Connecting Network Cable
External microphone DC12V * 1 It is recommended to install the security cap for outdoor installations. * 2 DC 12V power supply is not required if a PoE switch or injector is used to power the camera. ► Connecting Network Cable ①... -
Page 6: Installation
Installation * Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera. ① Open the mounting base and the upper cover of the junction box. Mounting Base Upper Cover ②... - Page 7 3× 6.6mm PM 4x10mm ⑤ Connect the cables and then i nstall the camera onto the junction box as shown below. ⑥ Bracket Adjustment-Loosen the fixed ring to adjust the view angle of the camera. After you get the optimum angle of view, tighten the fixed ring to complete the installation.
- Page 8 The camera is set to DHCP by default. ② Install IP Scanner from the CD and run it after installation.Or download from https://www.specotech.com/ip-scanner/ O4B9 5C:F2:07:24:28:9A ③ In the device list, you can view the IP address, model number, and MAC address of each device.
- Page 9 The login interface is shown above. Default user name is admin and password is 1234. After logging in, follow directions to install applicable plugins if prompted.
