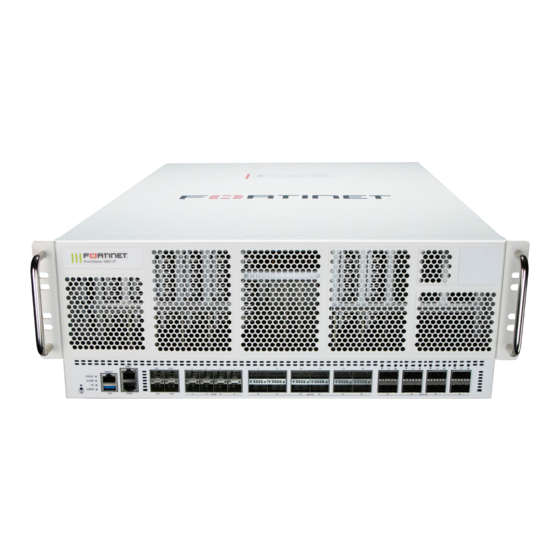

- Page 1 QuickStart Guide FortiGate 4800F Series FG-4800F and FG-4801F...
-
Page 2: Before You Begin
Fortinet. For absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet’s internal lab tests. -
Page 3: Package Contents
4x C15 Power Cables 1x Ethernet Cable 1x Console Cable contact FortiCare Support at https://www.fortinet.com/support/contact Self-service Resources Access our knowledge base, forums, videos and technical experts at https://www.fortinet.com/support/support-services/forticare-support Thank you for choosing Fortinet 6x Rubber Feet 2x SFP+ Transceivers 1x Rail Kit... -
Page 4: Quick Setup
Unpack the box, power the device, plug the Ethernet cable from a WAN port to the Internet and launch FortiExplorer using one of the following: BLE Auto Detection Enable Bluetooth on your Fortinet device and your mobile, then place them near each other FortiExplorer will automatically detect your device... -
Page 5: Sfp Modules
SFP Modules SFP Modules Removal Installation Cage Socket Cage Socket Lock... -
Page 6: Desktop Installation
Desktop Installation Rack Installation 1.5in 1.5in 1.5in 1.5in Note: Place the device on a flat, clean and stable surface. Note: The recommended clearance is 1.5 inches above and below the device in a 19 inch rack. Caution: To avoid personal injury or damage to the device, it is recommended that two or more people mount the device on a rack. - Page 7 Rail Assembly Attach the Inner Rails to the Appliance 1. Detach the inner rail from the rail assembly by pressing the lock out tab 2. Place an inner rail against a side of the appliance 3. Align the inner rail keyholes with the appliance pins 4.
- Page 8 Install the Appliance Attach the Outer Rails to the Rack Safety Precautions Front Outer Rail 1. Check that the inner rails are secured to the appliance 1. Place an outer rail against a side of the rack 2. Align the front outer rail with the front of the rack 2.
- Page 9 FG-4800F Series Front Panel FortiGate 4800F MGMT1 AUX1 CONSOLE MGMT2 AUX2 SFP56 QSFP56 QSFP-DD MGMT 1 and MGMT 2 (RJ45) 10 GE management ports Green: Link established LINK/ACT MGMT Ports MGMT1 Flashing Green: Data activity FortiGate 3500F Off: No link established STATUS LINK/ACT SPEED...
- Page 10 FG-4800F Series Rear Panel FAN1 FAN2 FAN3 SSD1 SSD2 CAUTION/ATTENTION SHOCK HAZARD. DISCONNECT ALL POWER SOURCES. RISQUE D’ÉLECTROCUTION. DÉBRANCHEZ TOUTES LES SOURCES D’ALIMENTATION. Power Supplies Power Supply LED Indicators 200-240VAC, 7-6A, 50/60Hz (x4) 2+2 Redundant, hot-swappable power supplies Green: Standby rail and main output on Green: Standby rail and main output off Flashing Off: Error or no AC power input...
-
Page 11: Cautions And Warnings
Cautions and Warnings This product has a separate protective earthing terminal provided on the back of the product in addition to the grounding terminal of the attachment plug. This separate protective earthing terminal must be permanently connected to earth with a green with yellow stripe conductor minimum size # 6 AWG and the connection is to be installed by a qualified service personnel. - Page 12 EU or countries that have implemented the EU Directives and/or spectrum 當設備不用時，請將所有電源線拔除，避免電壓不穩而造成傷害。 regulation. Any Fortinet products not obtained directly from Fortinet or Fortinet’s authorized partners may not comply with EU Directives and Fortinet 勿將任何液體濺入設備中，避免線路短路。...
- Page 13 Fortinet.com...
