Summary of Contents for Fortinet FortiAP 432G

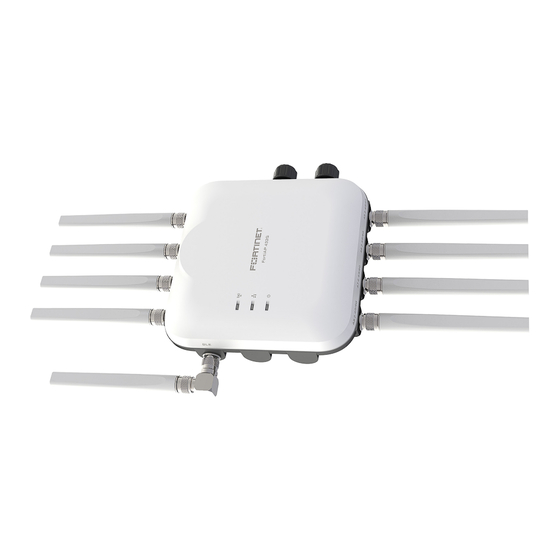

- Page 1 QuickStart Guide QuickStart Guide FortiAP 432G FAP-432G...
-
Page 2: Before You Begin
Fortinet. For absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet’s internal lab tests. -
Page 3: Package Contents
(100V-220V AC Input, contact FortiCare Support at https://www.fortinet.com/support/contact 54V DC Output) Self-service Resources Access our knowledge base, forums, videos and technical experts at https://www.fortinet.com/support/support-services/forticare-support Thank you for choosing Fortinet Wall Mount Pole Mount Bracket Bracket Mounting Kit 9x N-Type Omni Antennas... -
Page 4: Setup Options
Setup Options Network Connection Direct Connection Ethernet Cable Ethernet Cable ( not included ) ( not included ) FortiAP FortiGate FortiAP FortiGate LAN Port Ethernet Port LAN Port Ethernet Port Same Network Note: Connect to the FortiAP using 192.168.1.2 with username admin Note: To self-configure, preauthorize the FortiAP on your FortiGate and set a password. -
Page 5: Wall Installation
Wall Installation Antenna Installation 1. Insert the antenna base firmly into the appropriate antenna mount 1. Mark the location of the mounting bolts using the wallmount bracket 2. Drill holes and hammer the bolts into the drilled holes 2. Securely hand tighten the antenna fastening collar 3. - Page 6 PoE Injector Installation Waterproof Cabling 1. Attach the supplied AC power cord to the PoE injector 1. Unscrew the sealing nut from the panel connector and remove the seal and claw 2. Plug the power cord into a power outlet or UPS 2.
-
Page 7: Led Indicators
Interfaces LED Indicators WiFi Power Off: Radio 1 & 2 off Off: Device off Green: Device on Blue: Radio 1 on Blinking Green: Booting up or upgrading Blinking Blue: Radio 1 transmitting Amber: Radio 2 on Amber: Reserved for customizations Blinking Amber: Radio 2 transmitting Green: Radio 1 &... - Page 8 Cautions and Warnings Cet équipement est conforme aux limites d’exposition aux rayonnements ISED établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 32cm de distance entre la source de rayonnement et votre corps. Environmental specifications The maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p.
- Page 9 EU or countries that have implemented the EU Directives and/or spectrum 2405-2480MHz less than 20dBm regulation. Any Fortinet products not obtained directly from Fortinet or Fortinet’s authorized partners may not comply with EU Directives and Fortinet 2412-2472MHz less than 20dBm makes no assurances for such products.
- Page 11 Fortinet.com...
