- Page 1 QuickStart Guide FortiADC 320F & 420F Series FAD-320F, FAD-420F, FAD-420F-DC...
-
Page 2: Secure Your Network
1x AC Power Cable FortiADC Device (AC models only) https://192.168.1.99 Username: admin Password: leave blank Fortinet Documents Library 1x Console Cable 1x Ethernet Cable (USB to RJ45) For getting started documentation, admin guides, up-to-date hardware manuals and reference resources, visit https://docs.fortinet.com/... - Page 3 Setup Speed (default): 9600 Data bits: Stop bits: Parity: None USB Console Cable Flow Control: None Console Port Port 1 If Static IP: 192.168.1.1/24 Ethernet Cable...
-
Page 4: Desktop Installation
Desktop Installation Rack Mount 1.5in 1.5in 1.5in 1.5in Note: Place the device on a flat, clean and stable surface. Note: The recommended clearance is 1.5 inches above and below the device. Caution: To avoid personal injury or damage to the device, it is recommended that two or more people mount the device on a rack. - Page 5 Front FAD-320F NMI button press and hold for 3 secs to restore NMI output and reboot Ports 1 to 4 (RJ45) SPEED (Left LED) LINK/ACT (Right LED) RESET button press for system reset Amber: 2.5 Gbps Flashing Green: Data activity Green: 1 Gbps Off: No link established STATUS...
- Page 6 Rear FAD-320F Power Switch (toggle) on/off Power Supply 100-240VAC, 6-3A, 50/60Hz...

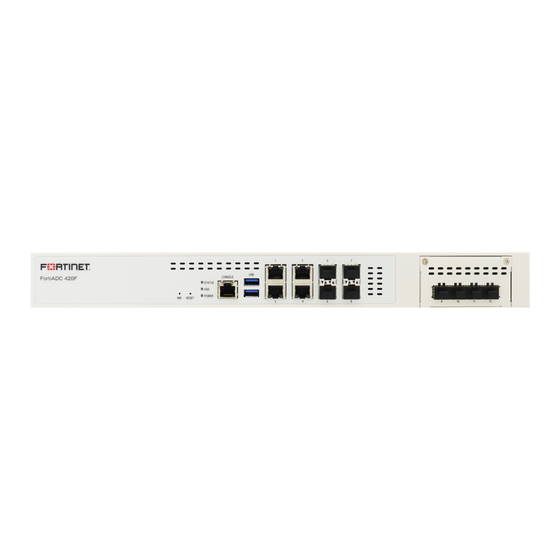

- Page 7 Front FAD-420F NMI button press and hold for 3 secs to restore NMI output and reboot Ports 1 to 4 (RJ45) SPEED (Left LED) LINK/ACT (Right LED) RESET button press for system reset Amber: 2.5 Gbps Flashing Green: Data activity Green: 1 Gbps Off: No link established STATUS...
- Page 8 Rear FAD-420F Rear FAD-420F-DC FAD-420F-DC Power Switch (toggle) on/off FAD-420F Power Switch (toggle) on/off AC Power Supply (1+0), Redundant, Hot-Swappable DC Power Supply (1+0), Redundant, Hot-Swappable 100-240VAC, 6-3A, 50/60Hz (x2) -48V to -60V DC, 450W Max (x2) Green: Normal operation Blue: Normal operation Green: Standby mode Blue: Standby mode...
- Page 9 Cautions and Warnings Grounding — To prevent damage to your equipment, connections that enter from outside the building should pass through a lightning / surge protector, and be properly grounded. Use an electrostatic discharge workstation (ESD) and/or wear an anti-static wrist strap while you work. In addition to the grounding terminal of the plug, on the back panel, there is another, separate terminal for earthing.
- Page 10 Product Safety Electrical Appliance & Material (PSE) – Japan 日本では電気用品安全法(PSE)の規定により、同梱している電源コードは本製品の専用電源コードとして利用し、他の製品に使用しないでください。 Bureau of Standards Metrology and Inspection (BSMI) – Taiwan The presence conditions of the restricted substance (BSMI RoHS table) are available at the link below: 限用物質含有情況表 (RoHS Table) 請到以下 網址下載： https://www.fortinet.com/bsmi 警告： 為避免電磁干擾，本產品不應安裝或使用於住宅環境。 請仔細閱讀以下說明 本設備勿置於潮濕處。 連接至電源前，請先檢查電壓。...
- Page 11 Copyright © 2024 Fortinet, Inc. All rights reserved. Fortinet®, FortiGate®, FortiCare® and FortiGuard®, and certain other marks are registered trade- marks of Fortinet, Inc., and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet. All other product or company names may be trademarks of their respective owners.
