Summary of Contents for Fortinet FortiManager 400G

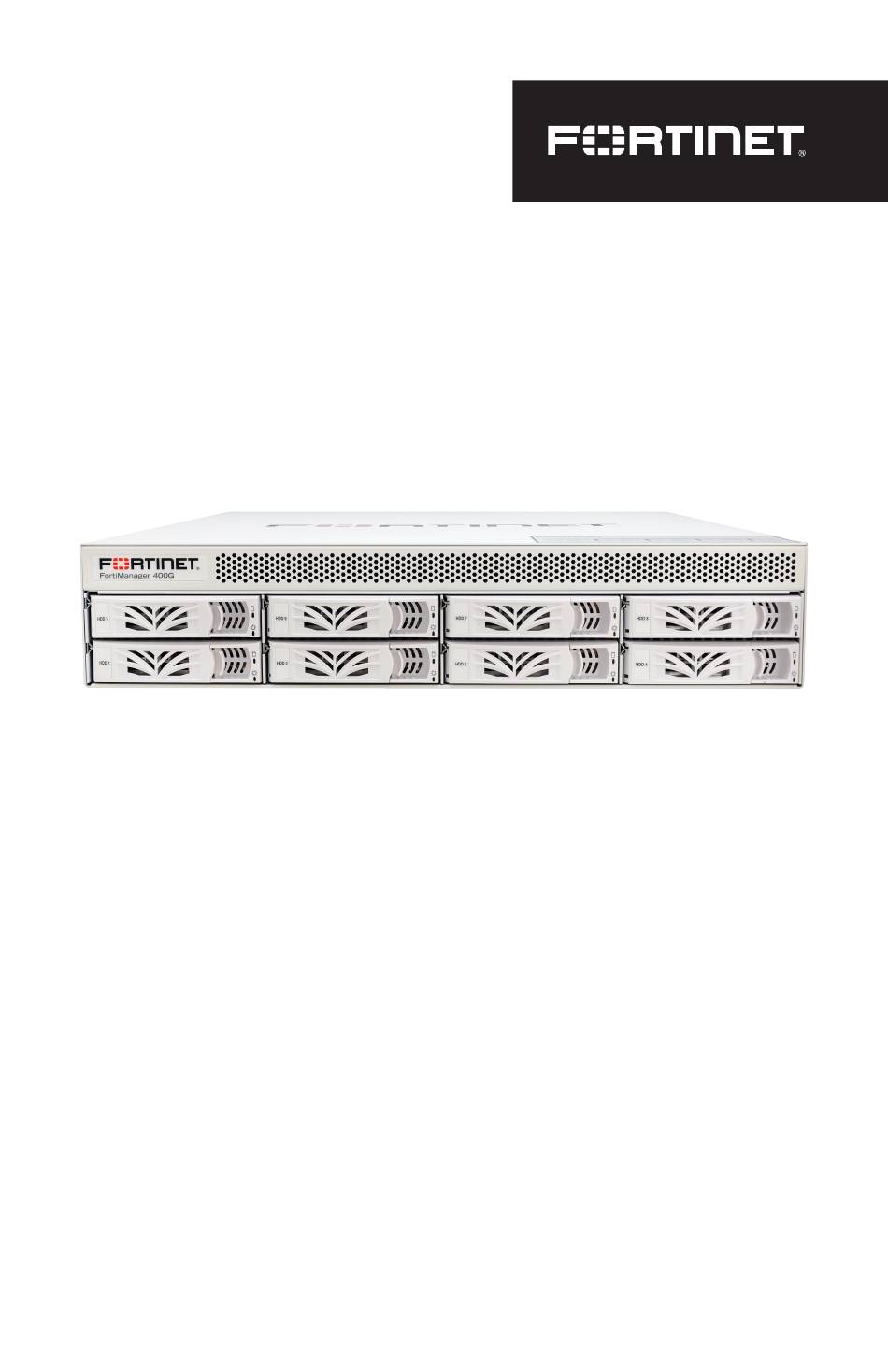

- Page 1 FortiManager 400G QuickStart Guide...
-
Page 2: Product Registration
Copyright© 2021 Fortinet, Inc. All rights reserved. Fortinet®, FortiGate®, FortiCare® and FortiGuard®, and certain other marks are registered trademarks of Fortinet, Inc., in the U.S. and other jurisdictions, and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet. All other product or company names may be trademarks of their respective owners. - Page 3 Contents - FMG 400G Front Panel - FMG 400G FortiManager 400G (product shown includes the optional redundant PSU) 4x Rubber Feet HDD Tray Release Latch QuickStart Guide 8x HDD Hard Drive Slots 1 to 8 Solid State 4TB RAID-10, hot-swappable...
-
Page 4: Rack Installation
For video support on installing these slide rails, please visit: (Default configuration comes with one power supply. An optional redundant 1+1 power supply is available for purchase and shown above in the diagram.) https://video.fortinet.com For additional support, please visit: http://support.fortinet.com... -
Page 5: Rack Mount Installation
Rail Assembly Installation Rack Mount Installation 1. Release the safety lock, then mount the rails onto the rack 1. Press the trigger down to unlock and pull out the inner chassis rail Release safety lock Press the trigger before mounting down to release Pull chassis (inner) member out... -
Page 6: Basic Connections
Note: We recommend connecting your device to an uninterruptible power supply (UPS) in case of a power outage Cage Socket Optional: The FortiManager 400G has an optional AC power supply slot for failover redundancy. If both AC power supplies are used, only one is active. Latch... -
Page 7: Setup Options
Setup Options Set up your device locally using the GUI or CLI. Choose an option to complete your setup, then configure your device. easy-to-use GUI, compatible with most web browsers. To minimize scrolling, the screen resolution should be at least Local Setup 1280 x 1024 pixels. - Page 8 Cautions and Warnings Environmental Specifications Ambient operating temperature: 0°C to 40°C Rack Mount Instructions - The following or similar rack-mount instructions are included with the installation instructions: Instructions de montage en rack - Les instructions de montage en rack suivantes ou similaires sont incluses avec les instructions d’installation: Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient.
- Page 9 Product Safety Electrical Appliance & Material (PSE) – Japan 日本では電気用品安全法(PSE)の規定により、同梱している電源コードは本製品の専用電源コードとして利用し、他の製品に使用しないでください。 Bureau of Standards Metrology and Inspection (BSMI) – Taiwan The presence conditions of the restricted substance (BSMI RoHS table) are available at the link below: 限用物質含有情況表 (RoHS Table) 請到以下 網址下載： https://www.fortinet.com/bsmi 此為甲類資訊技術設備，於居住環境中使用時，可能會造成射頻擾動，在此種情況下，使用者會被要求採取某些適當的對策。 英屬蓋曼群島商防特網股份有限公司台灣分公司 地址：台北市內湖區行愛路176號2樓 電話：(02) 27961666 China 此为A级产品，在生活环境中，该产品可能会造成无线电干扰。这种情况下，可能需要用户对其采取切实可行的措施。...
- Page 11 Fortinet.com...
