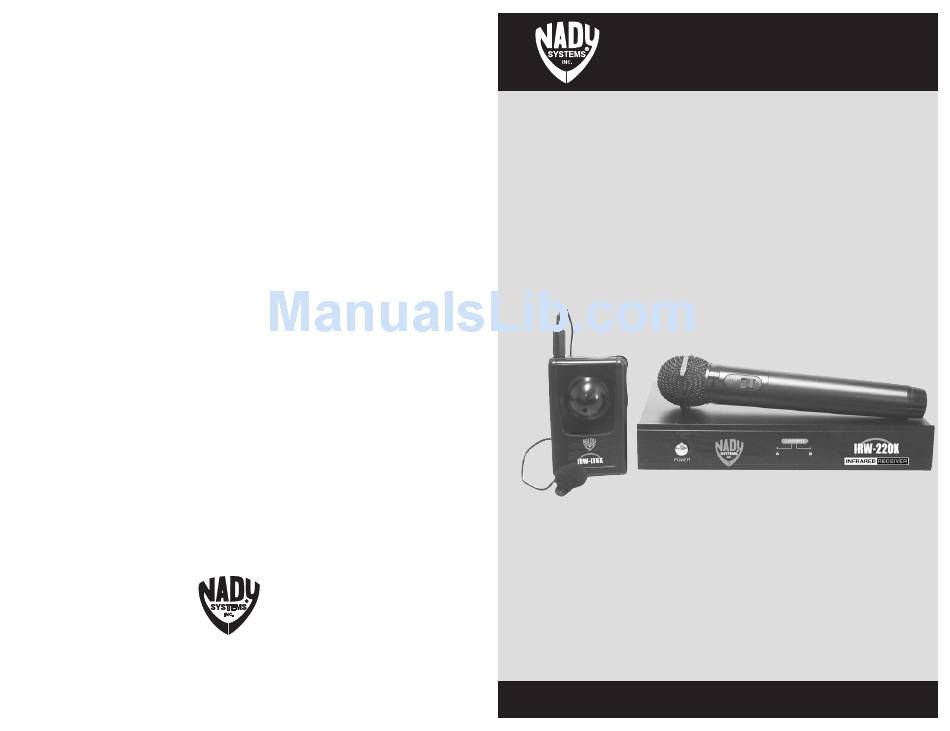

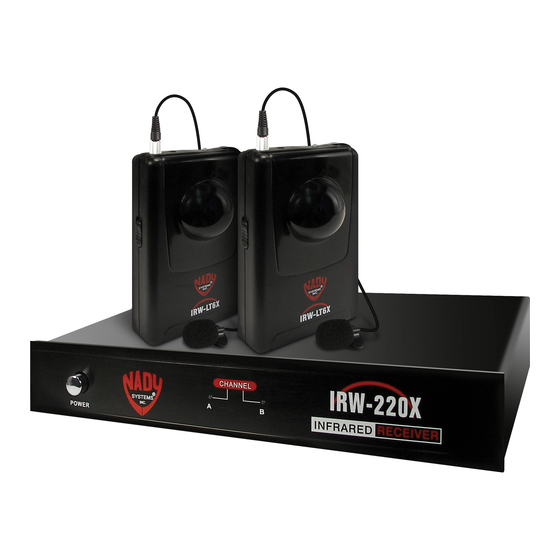

- Page 1 IRW-220X INFRARED WIRELESS MICROPHONE SYSTEM NADY SYSTEMS, INC. O W N E R S M A N U A L 6701 Shellmound Street • Emeryville, CA 94608 USA Tel: 510/652-2411 • Fax: 510/652-5075 www.nady.com...
-
Page 2: Table Of Contents
SERVICE (U.S.) Should your NADY IRW-220X Infrared Wireless Microphone System require service, please contact the Nady Service Department via telephone at (510) 652-2411 or e-mail to service@nady.com for a Return Authorization (R/A) Number and a service quote (if out of warranty). Make sure the R/A Number is clearly marked on the outside of the package and enclose a cashier’s check or money order (if not prepaid with a credit card). -
Page 3: Introduction
Please read the instructions for your system completely before operating unit. This manual will first list the features of the IRW-220X and then will take you step by step to show you how to operate your new system. After reading the receiver instructions, turn to the section of the booklet that covers the type of transmitter used with your new system. -
Page 4: System Features
SYSTEM FEATURES IRW-220X DUAL-IR WIRELESS MICROPHONE RECEIVER • Dual receiver allows 2 channel simultaneous operation of 2 transmitters (Ch A, Ch B) • IR signal reception LED indicators • Channel A/B mix audio output RCA phono jack • Separate Channel A and Channel B volume controls •... -
Page 5: Irw-220X Receiver
(6) Mixed Output RCA Jack 1. Powering the Receiver Plug the Power cord (3) into an AC outlet (110-120 VAC). Turn on the IRW-220X using the Power Switch (1). The Ch A and Ch B IR Reception LED Indicators (2) will light green when the corresponding transmitter is on and red when the transmitter is off. -
Page 6: Installation
IR transmitter. The Sensor Power LED (2) will light to indicate the sensor is properly connected to the IRW-220X Receiver. The Channel A and B IR LED indicators, located on the front panel of the receiver, will light green when an infrared signal on the corresponding channel is detected.
