1 1/2" BUILT-IN FLUSHING VALVE
REF: 1054 08
www.genebre.es

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1054 08 and is the answer not in the manual?

Questions and answers

Related Manuals for Genebre 1054 08

Summary of Contents for Genebre 1054 08

  • Page 1 1 1/2” BUILT-IN FLUSHING VALVE REF: 1054 08 www.genebre.es...

  • Page 2: Product Description

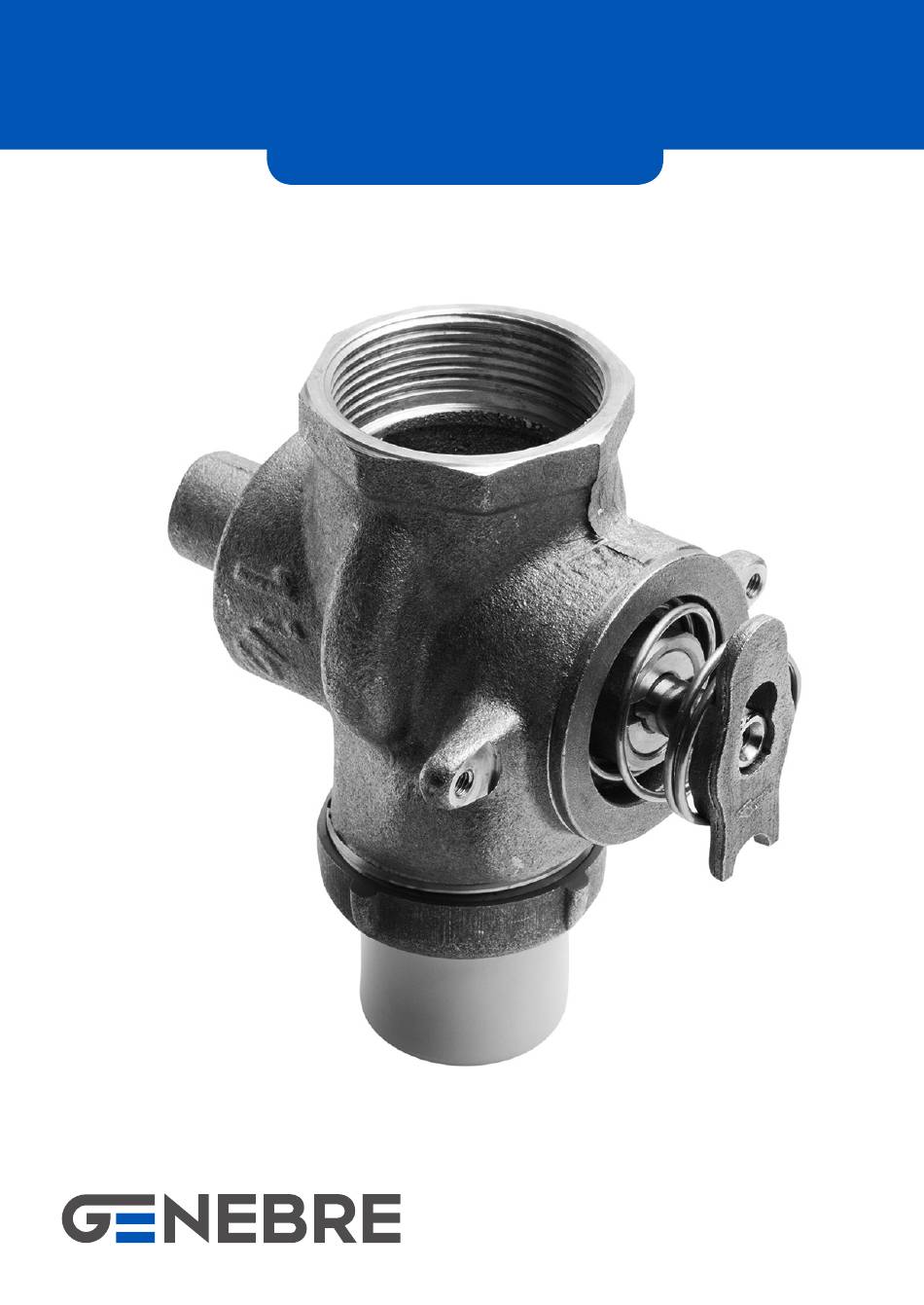

    PRODUCT DESCRIPTION 1 1/2” flushing valve for flush-mounted toilet for low pressure and pressurised circuits, suitable for use from 015 bar to 5 bar, designed to work efficiently with water tanks at 1.5 m in height above it or more, as well as pressurised circuits. 15 discharge litres at 3 bar, (8 seconds duration) adjustable flow rate.
  • Page 3 RECOMENDED INSTALLATION The GENEBRE flushing valve can be used in very low pressure circuits with water tanks or pressurised circuits. With the aim of preventing unwanted noise, the installation of a pressure reducer or intermediate tanks is advised above 2.5 bar or 25 meters of water column.
  • Page 4 Diameter 32 mm. G1 1/4” Diameter 40 mm. The GENEBRE discharge valve is supplied with a plastic lid which protects it during the installation process. Please do not remove until the tiling is complete and proceed to install the push-button.
  • Page 5 Prior installation of the valve insures that piping is free from foreign bodies like Teflon, hemp, stones, etc. It is advised to previously purge the installation in order to remove remains that could damage the valve. Please note the maximum installation height. Please check the circulation direction of the water indicated by the arrow marked on the side of the body.
  • Page 6 When tiling cut the tiles that are Remove the plastic protector touching the protector. Mount and adjust the adjusting screw on the stem of the value, leaving a tolerance of 1 mm to 2 mm between the adjusting screw and the push-button on the plate.
  • Page 7 Adjust to the desired flow by using the adjusting handle, to increase or decrease the discharge volume or completely close the valve. OPEN CLOSE Turn the handle anti-clockwise Turn the handle clockwise Leave the adjusting key in the horizontal position to facilitate the installation of push-button PA-1051.
  • Page 8 Once the valve is installed, please choose one of our three types of push- buttons: PA-1051 PA-1054 PA-1052...

  • Page 9: Valve Operation

    VALVE OPERATION Closed position Please observe a cross-section of the valve in the CLOSED position. We can see that the water is in the area above it and retained by the closing O-ring located on the piston body, and the decompression O-ring located on the shaft.

  • Page 10: Valve Maintenance

    VALVE MAINTENANCE Dismantling the cartridge Close the installation’s shut-off valve Using a 15/16” key, turn anti-clockwise and discharge several times in order to to extract the lid from the valve. empty the water circuit. Dismantle the push-button’s plate. Remove the adjusting screw, the flow rate adjusting handle and the spring.
  • Page 11 Remove the shaft-piston set from the body of the valve. To proceed with assembly, please note the correct position of the piston and follow the steps in reverse order. When replacing the shaft into the lid, take care not to bend or damage the lip seal found in its interior.
  • Page 12 Dismantle the cartridge following the instructions “Dismantling the cartridge”. Remove the metal ring (clamp). Remove the piston body from the shaft. Using a coin or a screwdriver, dismantle the piston body. To proceed with assembly, please note the correct position of the piston and follow the steps in reverse order.
  • Page 13 Changing the lip seal Close the installation’s shut-off valve and Using a 15/16” key, turn anti-clockwise to discharge several times in order to empty extract the lid from the valve. the water circuit. Dismantle the push-button’s plate. Remove the adjusting screw, the flow rate adjusting handle and the spring.
  • Page 14 Closing the valve or regulating the water flow rate Dismantle the push-button’s plate. Adjust to the desired flow by using the adjusting handle, to increase or decrease the discharge volume or completely close the valve. OPEN CLOSE Turn the handle anti-clockwise Turn the handle clockwise To proceed with the assembly, place the flow rate adjusting handle in the...
  • Page 15 VALVE SPARE PARTS Flumax Cartridge Ref. CA1053 Cartridge Vessel. Ref. 9901 0016 Set of joints. Ref. 9901 0013 Flumax Spring Ref. 9901 0012 Fixing key. Ref. 9901 0011...

  • Page 16: Troubleshooting

    Replace the shaft and lip seal. the shaft. Deteriorated lip seal. Replace lip seal, review shaft and replace if necessary Edificio Genebre. Av. Joan Carles I, 46-48 - 08908 L’Hospitalet de Llobregat - Barcelona (Spain) Tel.: +34 902 504 203...
