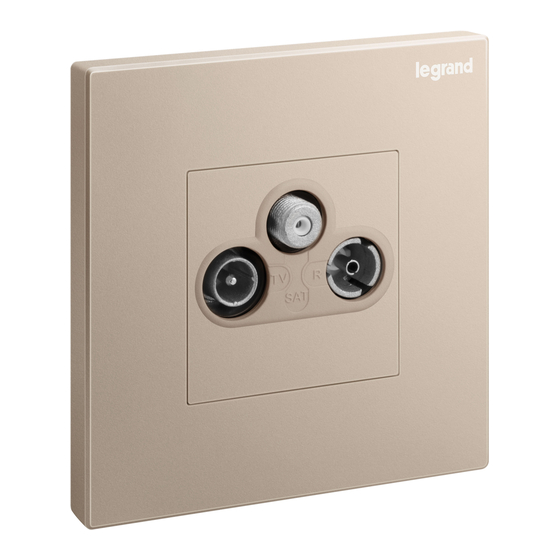

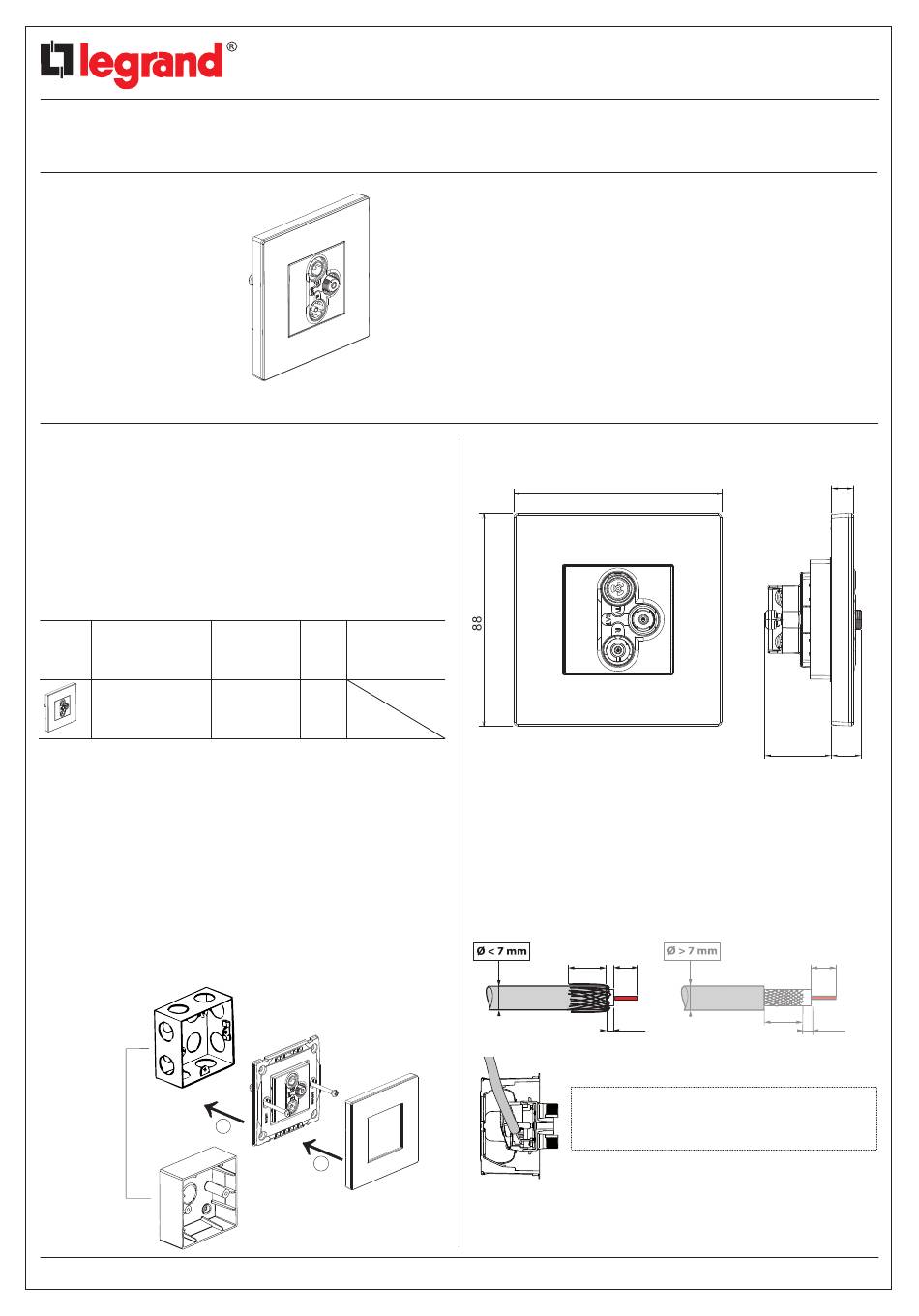

LEGRAND Galion TV - R- SAT Quick Start Manual

TM
Galion
TV - R- SAT
1. USE
TV/R/SAT: for receiving TV, radio and satellite signals.
UHD (ultra high definition) compatible.
Class A shielded star sockets LTE Ready (4G protected).
Recommended coaxial cable 17/19 VATC.
Single cable entry.
(Supplied with M3.5 screws for BS boxes. Flush mounting or surface
mounting.)
2. RANGE
Designation
TV - R- SAT
Colours
- Front: white/rose golden/champagne/dark silver
- Rear: white/rose golden/champagne/dark silver
X XXX XX White
X XXX XX-C Matt black
X XXX XX-C1 Rose golden
X XXX XX-C2 Champagne
X XXX XX-C3 Dark silver
3. PREPARATION
3.1 General preparation
- Flushing
mounting
box:
- Surface
mounting
box:
Technical data sheet:F03020EN/00
2 824 59/59m
Cat. No. Weight
Characteristics
(g)
60.1
2 824 59/59m
1
2
87045 Limoges Cedex
Telephone: (+33) 05 55 06 87 87 - Fax:(+33) 05 55 06 88 88
Cat. No(s): 2 824 59/59m
4. OVERALL DIMENSIONS
Profile Size: 86×88 mm
Distance of installation hole: 60.3 mm
Minimum depth of the box>35mm
5. CONNECTION
5.1 Wiring
10mm
17 / 19 VATC A
By restricting deformation of the coaxial cable,
the rear connection avoids impedance discon-
tinuity, thereby sustaining performance.
Updated:28/10/2019
CONTENTS
1. Use.......................................1
2. Range...................................1
3. Preparation.........................1
4. Overall dimensions.................1
5. Connection...........................1
6. Technical characteristics......2
7. Cleaning.................................2
8. Conformity - Approvals..................2
86
8mm
17 / 19 VATC A
20mm
2mm
Created: 10/28/2019
9.1
27.5 12.4
8mm
2mm
1/2
