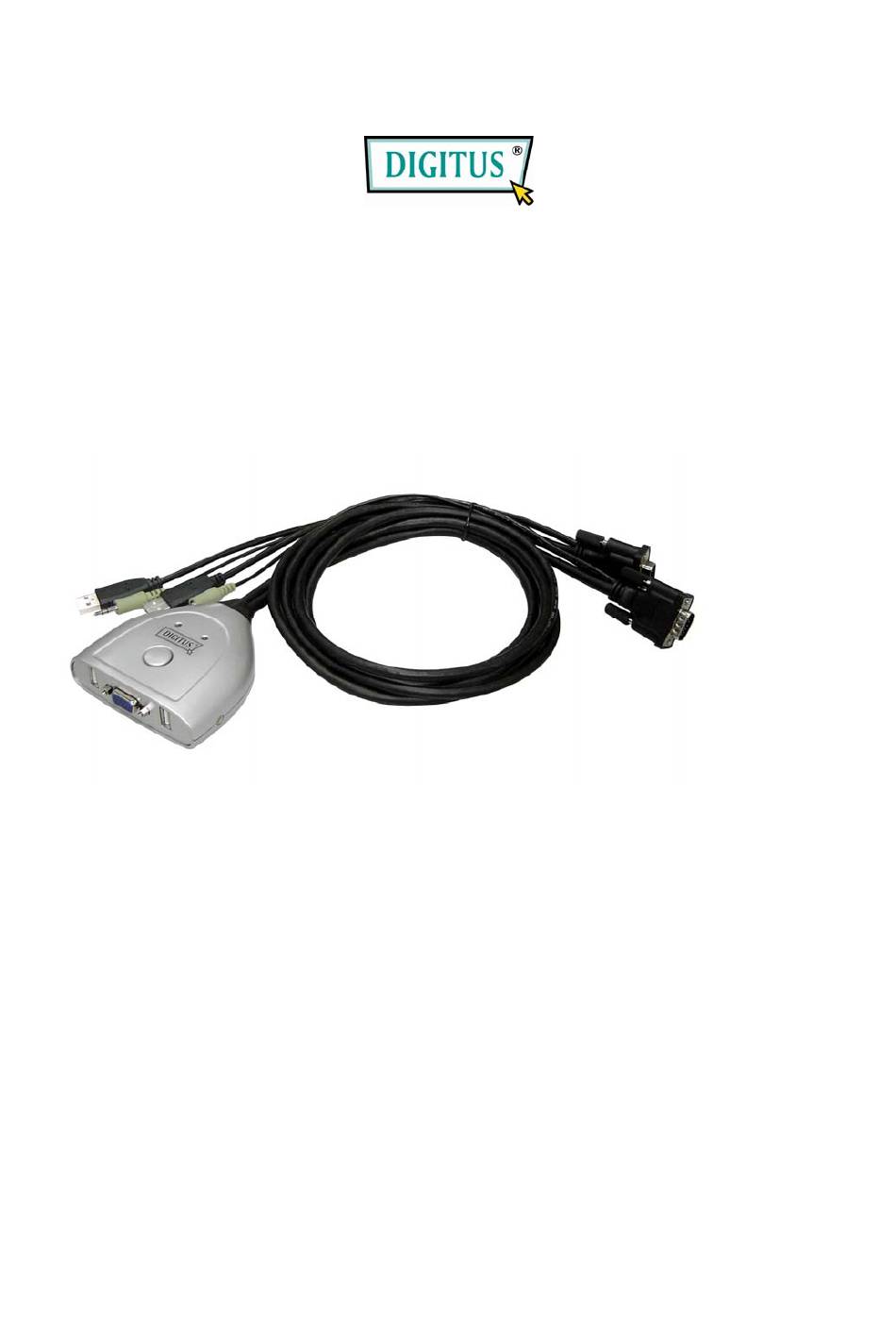

  • Page 1 2-PORT USB, VGA AND AUDIO POCKET DATA LINK KVM USER MANUAL (DS-11404)
  • Page 2: Table Of Contents

    Table of Contents Introduction …………………………………………………....3 Specifications ……………………………………………………..4 Hardware Installation ………………………………………………..5 AP Installation of Pocket Data Link KVM……...…………….……..6 The Icon Status ………………………………………………………10 The Application of Pocket Data Link KVM ………………………...10 Driver Download ……………………………………………………. 11 Accessing the Pocket Data Link KVM ………………………….….11 Remark ……………………………………………………………….
  • Page 3: Introduction

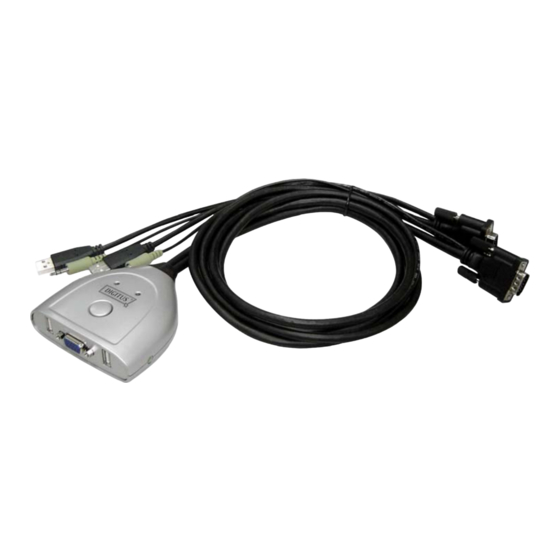

    2-PORT USB, VGA AND AUDIO POCKET DATA LINK KVM Introduction The USB Pocket Data Link KVM switch allows a single keyboard, video display monitor, and mouse to be switched to access multiple computers. The switch provides more table space in addition to saving the cost of multiple keyboards and monitors. The data link function lets users to perform Data Transfer between two computers.
  • Page 4: Specifications

    Specifications Function Specification PC Port USB Device Port 2 (only for one keyboard and one mouse) Cable Length KVM cable 1.2M each Port Selection Switch button or Hot-key commands or AP selection 1 x USB Type A Male 1 x 3.5mm Mini-Phone Stereo Jack Male (green) 1 x HDB -15 Male Cable Connector 1 x USB Type A Male...
  • Page 5: Hardware Installation

    Hardware Installation...
  • Page 6: Ap Installation Of Pocket Data Link Kvm

    AP Installation of USB Pocket Data Link KVM Windows A. XP 1. AUTO PLAY: Turn on your computers and connect the KVM with your two computers (when prompted to restart your computer, click Yes to restart your system for the configuration changes). The icon appears to indicate the ready status.
  • Page 7 2.2 Create a desktop icon. 2.3 Click Install to start the installation. 2.4 When the following screen appears, click Finish.
  • Page 8 2.5 When the icon appears on desktop and a small icon appears from taskbar, the installation is completed. 2.6 Please double click from desktop to activate KMDS if needed. (*After installation is completed, the AP is in your computer. The KMDS can be automatically activated when you turn on your computers every time.
  • Page 9 and 2)RAM Disk. Please right-click on KMDS and Open for your computers. 2.1 Please double-click to install KMDS by following the installation procedures. When the icon appears on desktop and a small icon appears from taskbar, the installation is completed. 2.2 Please double click from desktop to activate KMDS if needed.
  • Page 10: The Icon Status

    C. The Icon Status: 1. KVM PIP function selected: (left-click on icon to pop-up or close) 2. Data transfer: and pop-up window 3. The KMDS on computers is off-line: 4. The KMDS on computers is on-line: 5. The function display window: (Right-click on icon to pop-up or close) The Application of USB Pocket Data Link KVM The Picture in Picture (PIP) mode is the value added to this device and is suitable...
  • Page 11: Driver Download

    Driver Download You can download the latest software for supported KVM device. Please visit our homepage to have the updated driver. (http://www.digitus.info). 1. Please connect the device’s “R” connector to computer or notebook USB port. 2. Please visit our website and open the update file to start download driver. You need to update both computers or notebooks to have the new driver installed completely.
  • Page 12: Remark

    one. Click Switch KVM to switch computer and audio simultaneously between PCs. Click Switch Audio to switch audio but computer still stays with the original one. Click KVM PIP to start the PIP to perform data transfer. Click Exit to leave the function. The pop-up window appears to indicate the data transfer is in progress and KMDS function is temporary inactive to avoid the unforeseen loss...
  • Page 13: Troubleshooting

    connected with keyboard and mouse. Please do not change the screen resolution of computers during the KVM PIP mode. Please do not unplug USB Cable KVM or stop data transfer while the current data transfer is in progress or KMDS is functional. Please also do not switch the computer by using keyboard Hot-Key during the data transfer.
