Summary of Contents for Digitus DS-45328

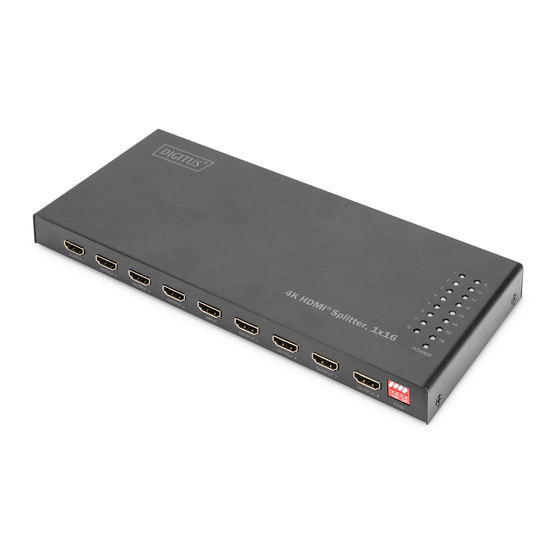

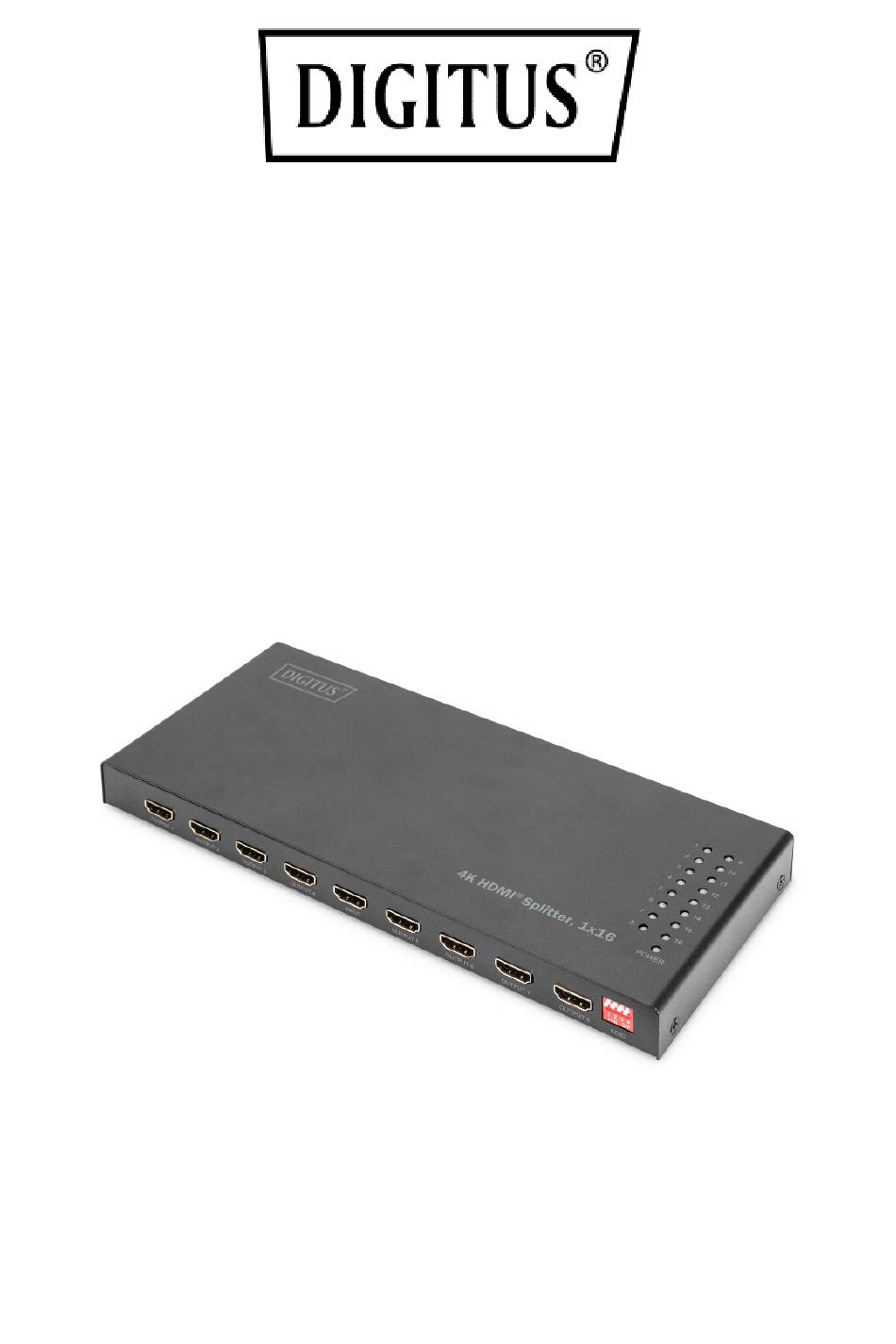

- Page 1 4K HDMI Splitter, 1x16 Quick Installation Guide DS-45328...
- Page 2 1. Introduction The DIGITUS® 4K HDMI Splitter, 1x16 distributes an AV signal onto 16 screens in UHD resolution (4K/60Hz) Thanks to the down-scaling function, no screen will remain black if for example a 4K signal needs to be output simultaneously on 4K and Full HD monitors.
- Page 3 management 2.1 EDID Description Switch down for 0 (↓=LOW)/ Switch up for 1(↑=HIGH) DIP Switch ↓= LOW Mode EDID Setting Description status ↑=HIGH 1 2 3 4 Mode1 0 0 0 0 4K@60Hz, 18G, 4:4:4, 2CH AUDIO Mode2 1 0 0 0 4K@60Hz, 18G, 4:4:4, 7.1CH AUDIO Mode3 0 1 0 0 4K@30Hz, 10.2G, 2CH AUDIO Mode4...
-
Page 4: Package Contents
3. Package Contents: 1x HDMI splitter 1x Power adapter (12V/2A, 1.15 m) 1x QIG 4. Product Specification Input Ports HDMI x1 Output Ports HDMI x16 Vertical Frequency Range 50/60Hz Video Amplifier 6Gbps/600MHz per channel Bandwidth (18Gbps all channels) Interlaced(50&60Hz) 480i,576i,1080i Progressive(50&60Hz) -
Page 5: Troubleshooting
5. Troubleshooting Problems Causes Solutions Power light is off Is the power adapter Please check if the power and product is properly connected and adapter is connected not working the power on/off properly and switch on button is on the power on/off button Screen splash HDMI cable may not be Please use the standard... -
Page 6: Product Overview
6. Product Overview ON/OFF: Power on/off Button DC/12V: DC 12V Input Power Adapter Output 1-16: HDMI Output 1-16 port HDMI Display Input: HDMI Input port HDMI Source EDID: EDID mode Select DIP-Switch Output 1-16 LED Indicator POWER: Power LED... -
Page 7: Connection Diagram
7. Connection Diagram 1) Notebook 2) TV x16 Hereby Assmann Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3...
