HDMI Splitter, 8-port
Manual
DS-43302

1.0 Introduction

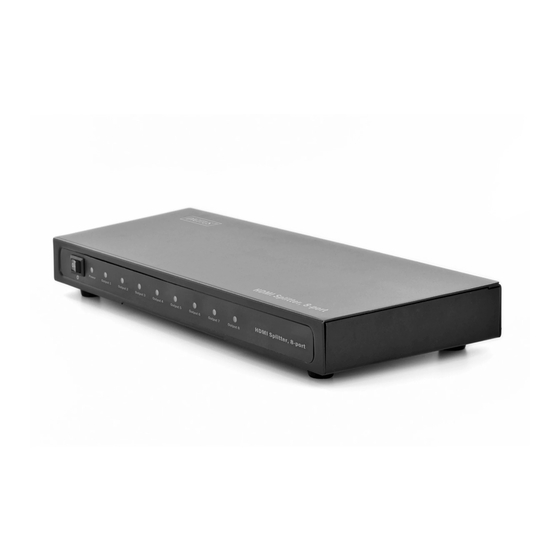

This splitter is beautiful in appearance. It distributes the input of the HDMI
signal into eight identical outputs simultaneously. It supports HDCP and
complied HDMI 1.3b. Its video bandwidth can be up to 2.25Gpbs/225MHz.
This HDMI Splitter offers solutions for HDTV retail and show site, HDTV, STB,
DVD and Projector factory, noise, space and security concerns, data center
control, information distribution, conference room presentation, school and
corporate training environments

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-43302 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Digitus DS-43302

  • Page 1 HDMI Splitter, 8-port Manual DS-43302 1.0 Introduction This splitter is beautiful in appearance. It distributes the input of the HDMI signal into eight identical outputs simultaneously. It supports HDCP and complied HDMI 1.3b. Its video bandwidth can be up to 2.25Gpbs/225MHz.
  • Page 2 2.0 Features  Cascaded: Large distribution achieved by cascading the HDMI Amplifier Splitter  Support highest video resolution 1080p  High performance up to 2.25Gbps  Support uncompressed audio such as LPCM  Support compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD) ...
  • Page 3 4.0 Package Contents 1) Main Unit 2) 5V DC Power Supply 3) User Manual 5.0 Panel Descriptions 6.0 Connection and Operation 1) Connect the HDMI input source and output devices into the HDMI Amplifier Splitter. 2) Insert the DC side of 5v power supply into it and then connect the AC side of the power supply into the wall outlet.
  • Page 4 6.1 Connection Diagram Hereby ASSMANN Electronic GmbH, declares that this device is in compliance with the requirements of Directive 2014/30/EU (EMC), Directive 2014/35/EU (LVD) and the Directive 2011/65/EU for RoHS compliance. The complete declaration of conformity can be requested by post under the below mentioned manufacturer address. Note: If wrongly installed or improperly used in the living area, the device can cause interference in radios and other electronic devices.
