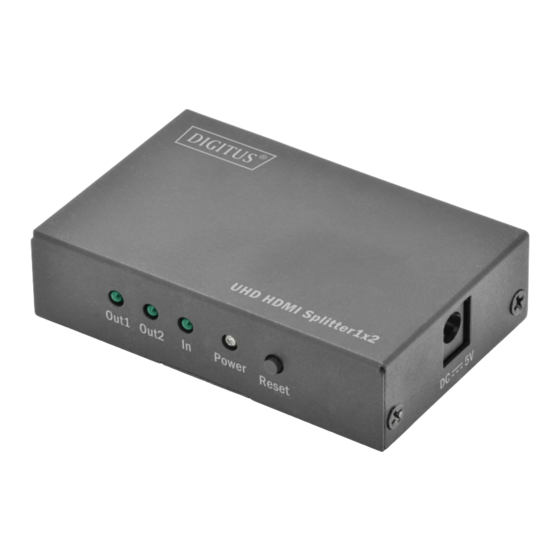

Uhd hdmi splitter 1x2

Advertisement

UHD HDMI Splitter1x2
Manual
DS-45314

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-45314 and is the answer not in the manual?

Questions and answers

Summary of Contents for Digitus DS-45314

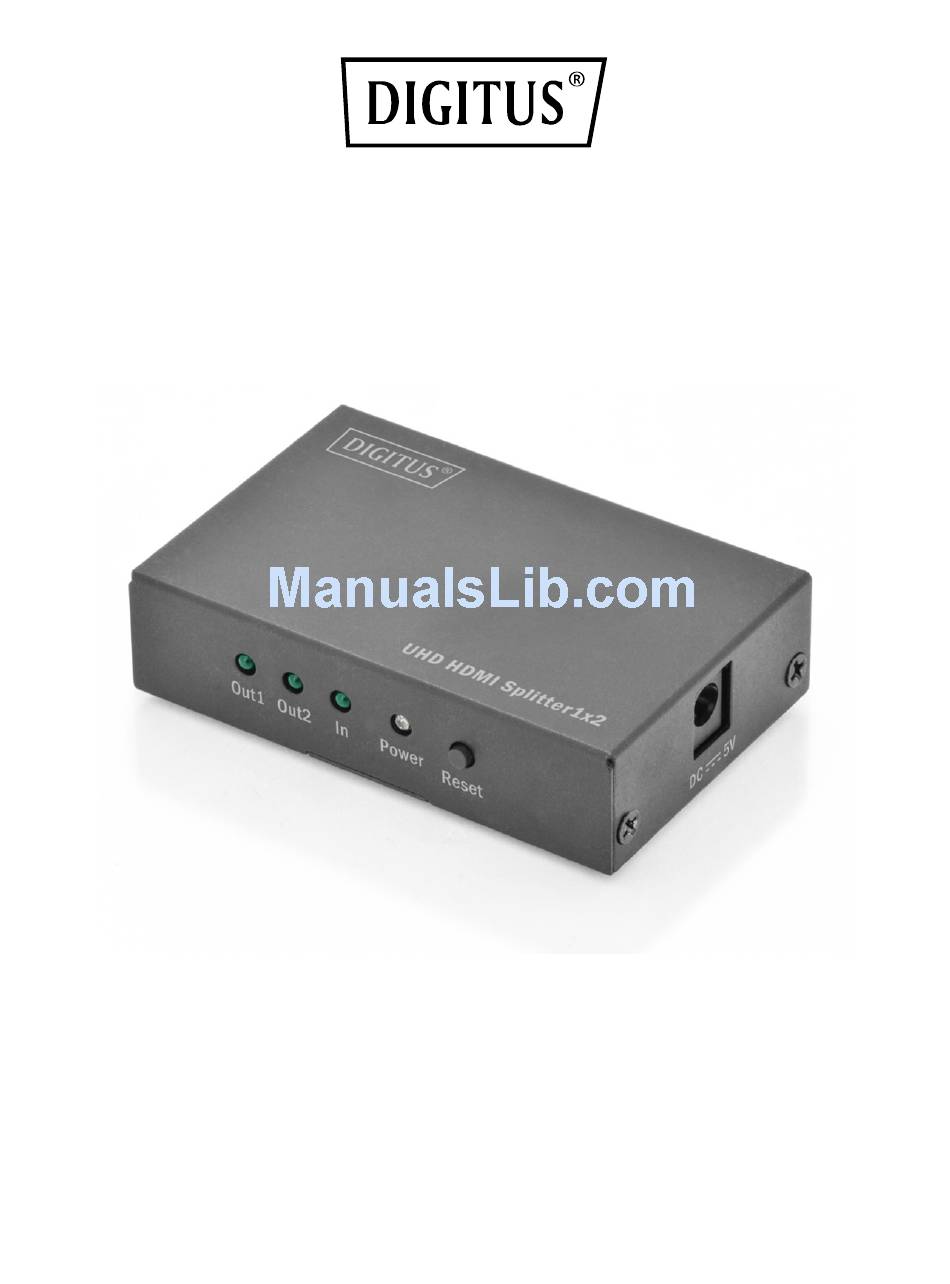

  • Page 1 UHD HDMI Splitter1x2 Manual DS-45314...
  • Page 2 The Digitus 4K HDMI splitter 1x2 distributes the signal you’re your HDMI device to up to two screens, televisions or projector in 4K Ultra HD (60 Hz) resolution. The hassle of changing cables belongs to the past. In addition, full HD and Full 3D are supported. It...
  • Page 3: Package Contents

    3.0 SPECIFICATIONS Input/Output Connector Input HDMI X1 Output HDMI X2 Operating Frequency Vertical Frequency Range 24/30/50/60Hz Video Amplifier Bandwidth 6Gbps/600MHz Resolutions (HDTV) Interlaced (50&60Hz) 480i, 576i, 1080i Progressive (50&60Hz) Max up to 4kx2k@60Hz Physical Size (L-W-H) 80 x 51 x 20 mm Weight (Net) 108g Environmental...
  • Page 4: Connection Diagram

    6.0 CONNECTION DIAGRAM Application Monitor/TV Monitor/TV PC/Notebook Hereby ASSMANN Electronic GmbH, declares that this device is in compliance with the requirements of Directive 2014/30/EU (EMC), Directive 2014/35/EU (LVD) and the Directive 2011/65/EU for RoHS compliance. The complete declaration of conformity can be requested by post under the below mentioned manufacturer address.
