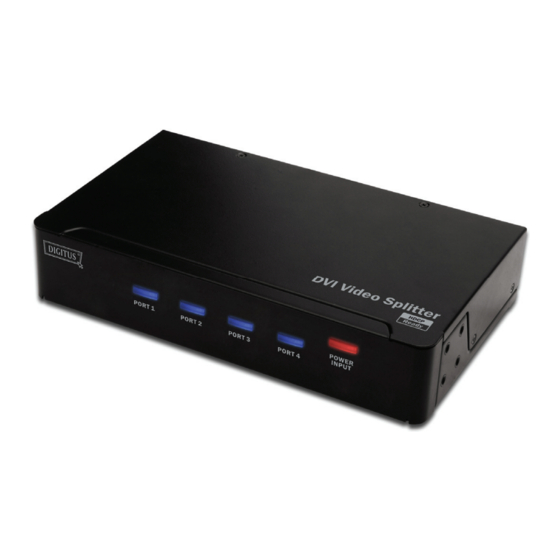

- Page 1 DVI / Video Splitter Easy and affordable way to duplicate one DVI video input to multiple DVI or HDMI outputs/monitors User´s Manual...
-
Page 2: Table Of Contents
Table of Content ■ Introduction………………………………………………….………..1 ■ Features………………………………………………………………..2 ■ Package Content .…………………………………….……….………2 ■ Hardware Requirement……………………………………....3 ■ Installation…………………………………………………….……..4 ■ Blu-ray Ready.……………..……………………………….…………..7 ■ Operation………………………………………………………..………7 ■ Specifications……….…………………………………………….…...8 ■ Troubleshooting…………………………………………………..…...9 Please read this manual thoroughly and follow the Installation procedures to prevent any damage to the unit or any connecting device. -
Page 3: Introduction
Introduction Overview The Video (+Audio) Splitters series broadcast the same video (+Audio) signals from one video (+Audio) signal source to 2 / 4 / 8 DVI or HDMI compatible outputs or monitors respectively, and the broadcast can be expanded significantly when several splitters are cascaded together. Depending on the length and cable quality, this fully HDCP compliant splitter supports DVI / HDMI display resolutions of up to Full HD (1920 x 1080) / WUXGA (1920 x 1200) / UXGA (1600 x 1200), and is also Blu-ray... -
Page 4: Features
Features Easy and affordable way to duplicate one video input to multiple DVI or HDMI outputs/monitors. Automatic power-save when signal input is lost. Cascaded operation for increased signal outputs. Crisp clear video images Support EDID, HDCP, and is Blu-ray ready for high definition display ... -
Page 5: Hardware Requirement
Optional DVI-to-HDMI Adapter DVI-to-HDMI Adapter (DK-408004) Hardware Requirement Video sources (ex. PS3, Blu-ray, DVD players, etc.), with DVI-D output, and audio output (optional) DVI Cables HDCP complaint display devices (ex. TVs, monitors, projectors, etc.) for the HDCP video source (optional) ... -
Page 6: Installation
Installation WARNING ● Prior to the installation, ensure to power off all devices that will be connected to this system. ● Ensure that all devices you will connect are properly grounded. ● Place cables away from fluorescent lights, air conditioners, and machines that are likely to generate electrical noise. - Page 7 DS-41211 Connection DS-42211 Connection DS-43211 Connection...
- Page 8 NOTE: At least one monitor connection to the splitter unit is required when powering on the source device. NOTE: The splitter unit is required to connect to the computer before the computer powered on. NOTE: The splitter unit is HDCP compliant and requires using a HDCP- compliant display when it is connecting to the...
-
Page 9: Blu-Ray Ready
Blu-ray Ready The Splitter Unit is able to support high definition video such as DVD or Blu- ray and multi-channel audio, and carry the best signal from source to displays; the high bandwidth allows for the transmission of large amounts of information at a very high rate of speed. -
Page 10: Specifications
Video Output Signal NOTE: Please connect at least one display device to the splitter before you powering on the source Unit. Specifications DS-41211 DS-42211 DS-43211 Number of Video Output Full HD 1080p (1920 x 1080) / VGA (640 x 480) / SXGA (1280 x Max. -
Page 11: Troubleshooting
Troubleshooting Symptom Possible Cause Solution Video does not display DVI specification of There are three DVI standards: DVI- on some ports the source devices I, DVI-D, and DVI-A. Make sure doesn’t match the DVI that DVI specifications of the specification of DVI source devices, cables, and cable and/or the DVI monitors all match. -
Page 12: Limited Warranty
Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY FOR DIRECT OR INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFIT, LOSS OF BUSINESS, OR FINANCIAL LOSS WHICH MAY BE CAUSED BY THE USE OF THE PRODUCT EXCEEDS THE PRICE PAID FOR THE PRODUCT.
