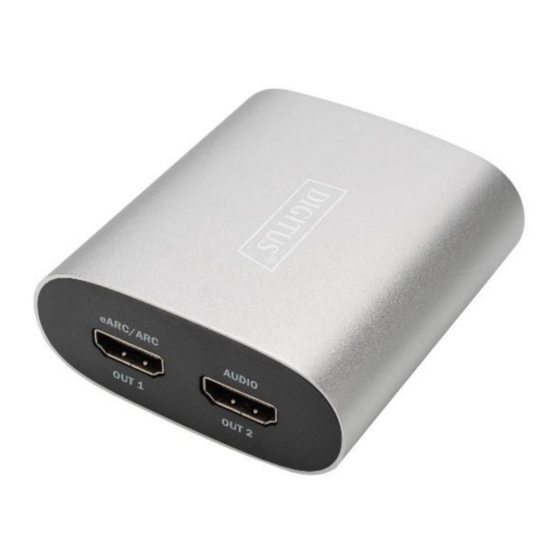

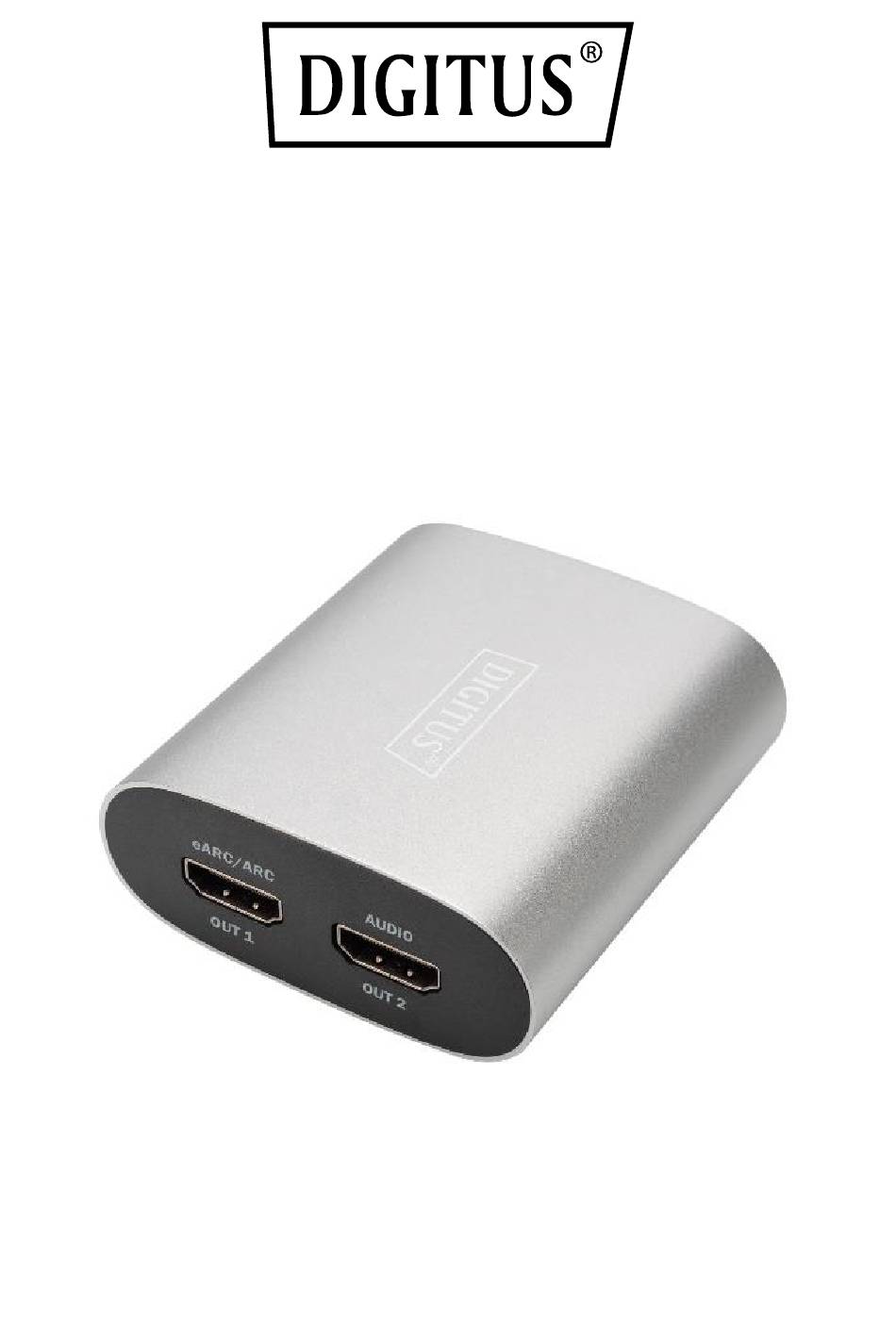

- Page 1 HDMI eARC Converter/Splitter Quick Installation Guide DS-45337...
- Page 2 1. Introduction The DIGITUS® HDMI eARC Converter/Splitter offers two operating modes: Mode 1 -> eARC Audio Extractor – Connect an HDMI2.1 device (e.g. XBox Series X, PS5) with an UHD TV while you continue to use your old AVR (Audio Video Receiver). Uncompressed 5.1 / 7.1...
- Page 3 3. Package Contents 1x HDMI eARC Converter/Splitter 1x Micro USB cable, 0.5 m 1x User manual 4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.3 / 1.x Video Bandwidth 18 Gbps Video Resolution Up to 4k2k@60Hz 4:4:4 8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) Color Depth...
- Page 4 Mechanical Housing Aluminium Enclosure Color Silver Dimensions 65mm[W] x 70mm[D] x 27mm[H] Weight Power Supply USB 5V / 500mA Power Consumption 1.75W (Max) Operation Temperature 32 - 104°F / 0 - 40°C Storage temperature -4 - 140°F / -20 - 60°C Relative Humidity 20 - 90% RH (no condensation)
- Page 5 5. Panel Description Red LED will be on when the device is Power LED powered on. 1) DC 5V power supply port; DC 5V 2) Firmware update port The switch is used to turn on/off the eARC function: Switch to “ON” position, the AUDIO OUT2 port will output the eARC switch eARC/ARC audio;...
- Page 6 6. Connection Diagram TV with ARC function USB Power Cable Audio Amplifier DVD or Blu-ray Player Hereby Assmann Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
