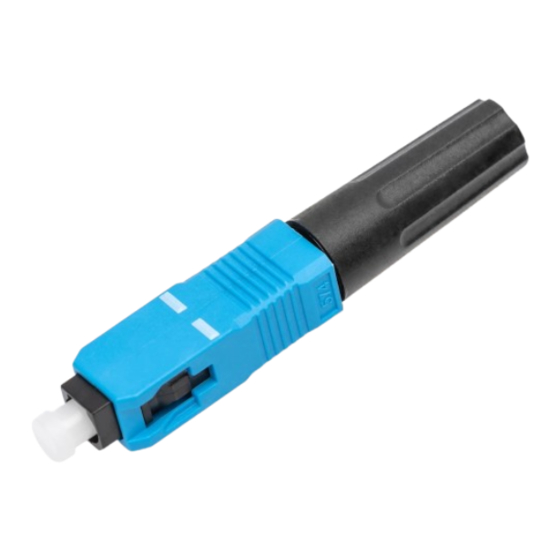

SC Fiber Optic Fast Connector
Field Assembly
Instructions
Thank you very much for purchasing our products. Please
read the instructions carefully before using.
• Application: ODF (Optical Distribution Frame), ONT
(Optical Network Unit), FTTH (Fiber To The Home), and
Cable TV Network
• Average insertion loss: ≤ 0.2 dB
• Average return loss: ≥ 50 dB
Product Content
Connector
55 mm x 8.9 mm x 7 mm
SC/APC
SC/UPC
1
Tools
Cable Stripper
Multifunction Marker
Prefabricated Optical-Fiber
Ø (0.125 mm)
12 mm
Miller Clamp
Optical Fiber Cleaver
Ø (0.25 mm)
17 mm
Fiber coating
Fiber cable
2
