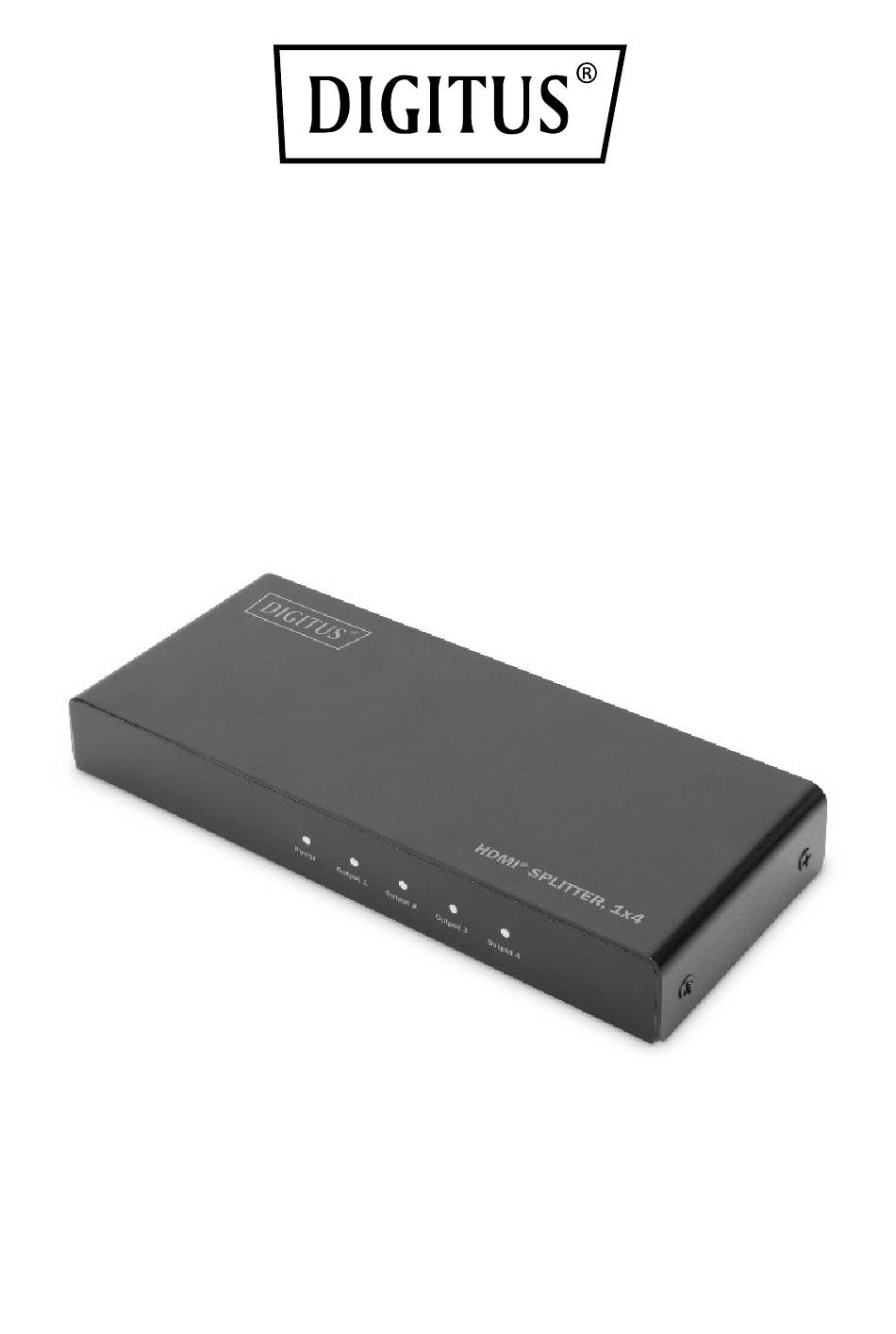

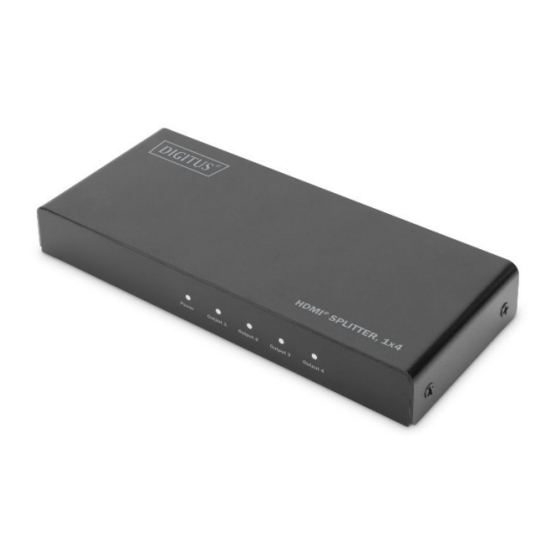

- Page 1 HDMI® Splitter, 1x4, 4K / 60 Hz with Downscaler Quick Installation Guide DS-45325...
- Page 2 What’s included Main unit Power adapter Ports and Interfaces 1 ON/OFF: Power on/off Button 4 OUTPUT 1-4: HDMI Output 1- 4 port 2 DC/5V: DC 5V Input 5 Power: Power LED 3 INPUT: HDMI Input port 6 Output 1-4: HDMI Output 1-4 LED Indicator...
- Page 3 (3) HDMI® Display 4K/60Hz Introduction The DIGITUS® high-performing splitter splits your HDMI device’s audio and video signals on up to four screens, TVs or projectors with a resolution of UHD 4K / 60 Hz. Additionally, HDR, HDCP 2.2 and 3D are supported - also a total width of 18 Gbps for fluent playback in excellent quality.
- Page 4 Features • Support downscale function means the product can downscale the input 4K resolution to 1080p by the FHD (1080p) displays and 4K resolution to the 4K displays simultaneously. • Support full 3D video format • Support high resolution up to 4K@60Hz YUV 4:4:4 •...
- Page 5 Specification Input Ports HDMI x 1 Output Ports HDMI x 4 Vertical Frequency Range 50/60 Hz Video Amplifier Bandwidth 6.0 Gbps/600MHz per channel (18 Gbps all channels) Interlaced(50 & 60Hz) 480i,576i,1080i Progressive(50 & 60 Hz) 480p,576p,720p,1080p, 4K@24/30Hz,4K@50/60Hz Operating Temperature 0°C to 70°C Storage Humidity 5% to 90% RH non-condensation Power Supply...
- Page 6 Troubleshooting Problems Causes Solutions Power light is off Is the power adapter Please check if the power and product is not properly connected adapter is connected working and the power on/off properly and switch on button is on the power on/off button Screen splash HDMI cable may not Please use the standard...
- Page 7 Dolby is a trademark of Dolby Laboratories. The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries. All other trademarks, registered trademarks, or service marks are the property of their respective owners.
