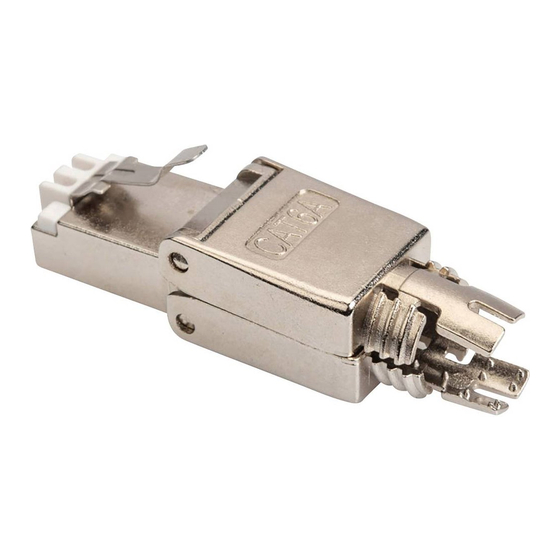

Cat6a shielded toolless plug

Advertisement

Available languages

Available languages

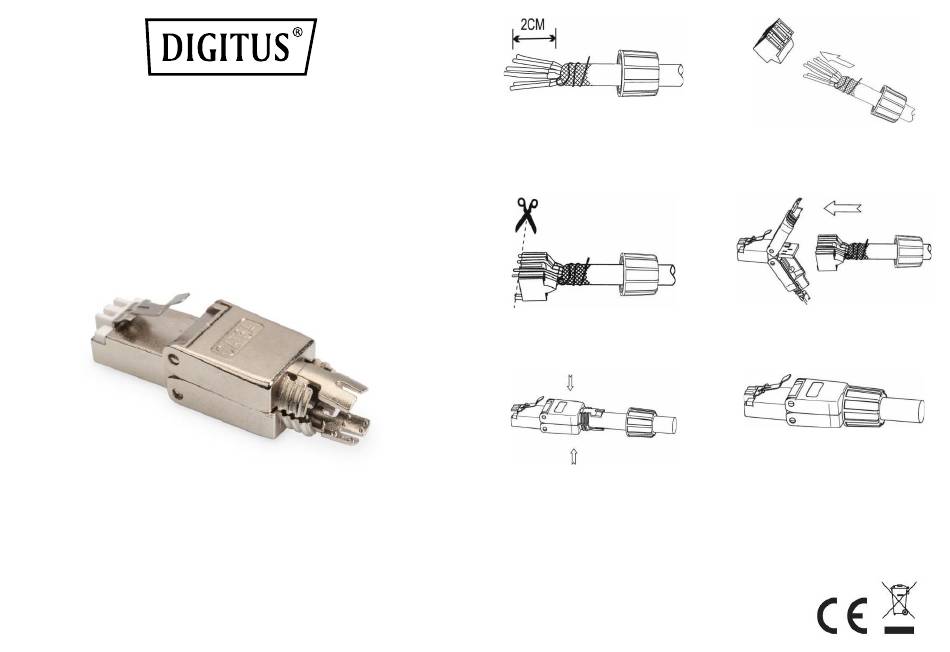

DIGITUS® CAT6
toolless plug
Instruction Manual
DN-93634
shielded
A
1.
Take off the cable jacket about 2 cm
3.
Cut away the extra wires
5.
Press down both side metal housing
until the wire into the IDC pin case.
Hereby Assmann Electronic GmbH declares that the Declaration of Conformity is part of the shipping
content. If the Declaration of Conformity is missing, you can request it by post under the below
mentioned manufacturer address.
www.assmann.com
Assmann Electronic GmbH
Auf dem Schüffel 3
58513 Lüdenscheid
Germany
2.
Put cable into IDC according
terminal T568
4.
To insert IDC into PCB
6.
The finished product.
