Component Names and Functions
Main Unit

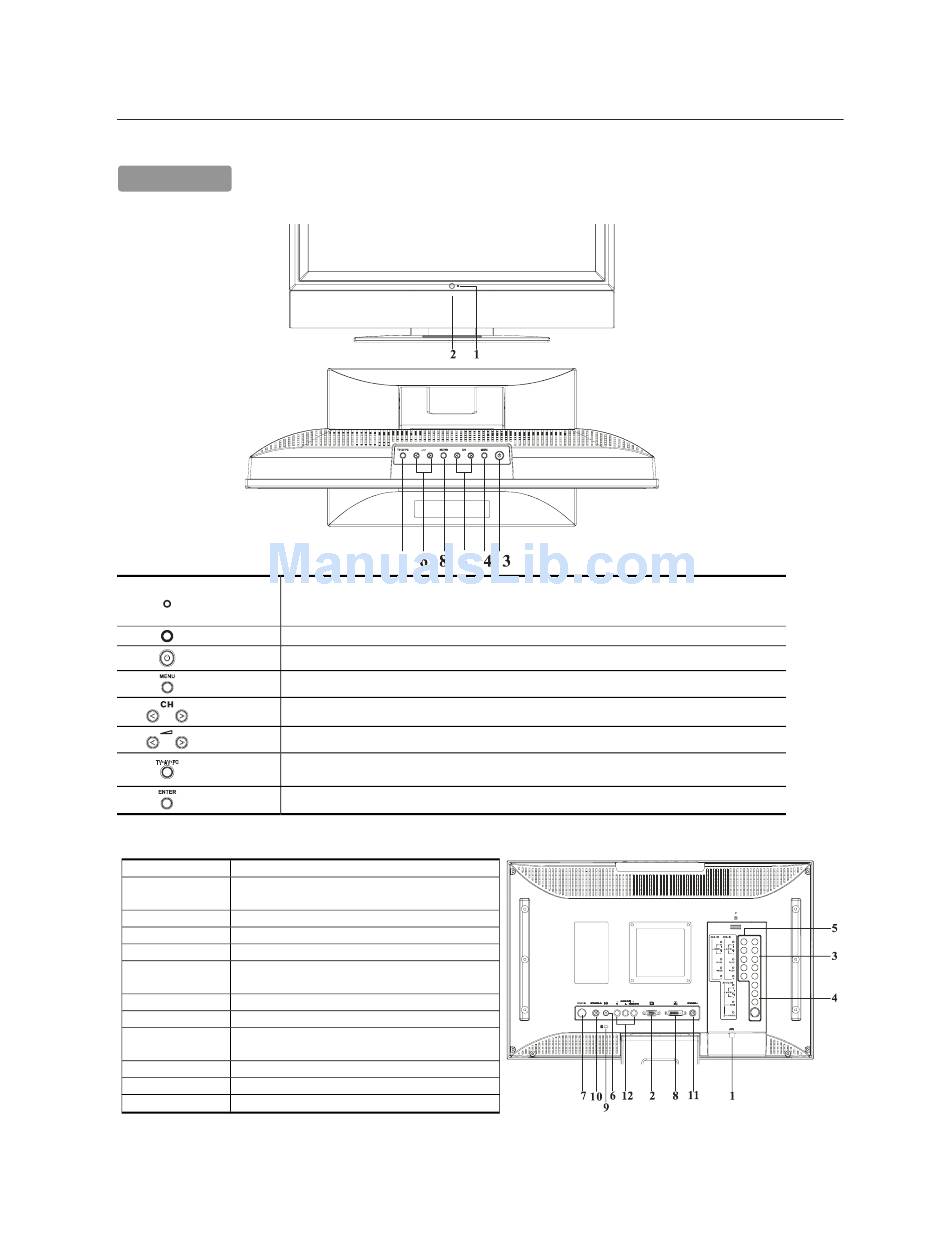

Front view of main body
LED lights Green color --- Power is ON.
Indicator for
1 LED lights Orange --- Monitor is in "Power Saving Mode".
Power
LED is off --- Power is OFF.
2 IR receiver IR receiver.
3 Power Turn on or off the main body.
4 Menu Open or Close the OSD menu.
5 Channel Select the next lower channel / higher channel (TV/AV mode) ; OSD function for selecting (PC mode).
6 Volume Lower / Raise the sound volume (TV/AV mode) ; OSD function for adjusting (PC mode).
Selection TV, AV-1(COMPOSITE), AV-2(S-VIDEO), AV3(YCbCr / YPbPr), AV4(YCbCr / YPbPr) ,
7 Source
RGB1 PC or RGB2 DVI.
8 Enter Enter for adjusting or next page.
Rear view of main body
1 RF in Please connect to antenna or cable TV signal.
Please use the 15-pin VGA cable in the package
2 VGA input
contents.
3 AV3-in For component Video input and audio.
4 AV1/2-in For composite video or S-video input and audio.
5 AV4-in For component Video input and audio.
Please connect the audio from sound card to PC
6 PC Audio in
Audio in.
7 DC in Please connect to your 19V power supply.
8 DVI in Please use the DVI cable for signal input
Kensington
9 It can be locked with Kensington lock.
Lock hole
10 Speaker -R Connect to Right-speaker
11 Speaker -L Connect to Left-speaker
12 Audio out For Audio R/L output & Subwoofer.
