Altronix HubWayLDH Series Installation Manual page 4

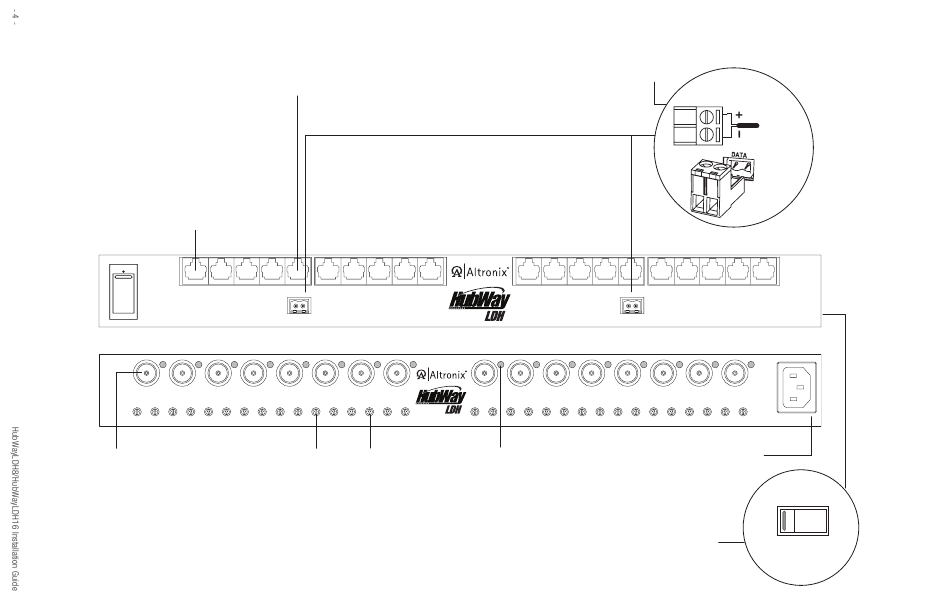

Fig. 1
1b - Channels 1-4, Channels 5-8, Channels 9-12 & Channels 13-16:
CAT-5 or higher structured cable from optional HubSat4D enables video
transmission from up to four (4) cameras.
1a - Channels 1-8 (HubWayLD8)
or Channels 1-16 (HubWayLD16):
CAT-5 or higher structured cable to
Video/Balun Combiners at
cameras 1-8 or 1-16. When using
an optional HubSat4D any of the
outputs can be utilized for the data
transmission to PTZs.
Front
RESET
1 2 3
OFF
Rear
16 15 14 13
PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE
1d - BNC Connector:
Video outputs to head
end equipment (DVR).
4 CH 1-4 5 6 7 8 CH 5-8
DATA
1-8
12 11 10 9
GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN
1e - Picture: 1f - Gain:
Adjusts video Regulates the
quality. output video
and sync levels.
1c - Data:
Removable terminal blocks for RS422/
RS485 input from head end
equipment (DVR) for
PTZ control.
9 10 11 12 CH 9-12
DATA
9-16
8 7 6 5 4
PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE
1h - IEC 320 Connector:
1g - LED(s) 1-16:
115VAC 60Hz/230VAC
Video signal indicators.
50/60Hz (grounded line
cord included).
1i - Input Voltage Switch:
Selects 115VAC 60Hz/230VAC
50/60Hz (switch is located on
the left side of the unit).
Top View
Data input
from Head End
Equipment
(DVR).
13 14 15 16 CH 13-16
3 2 1
AC POWER
GAIN
115VAC 220VAC
