Operation
Heated High-Pressure Hose System
- For use with architectural paints and coatings with a minimum flash point of 45° C -

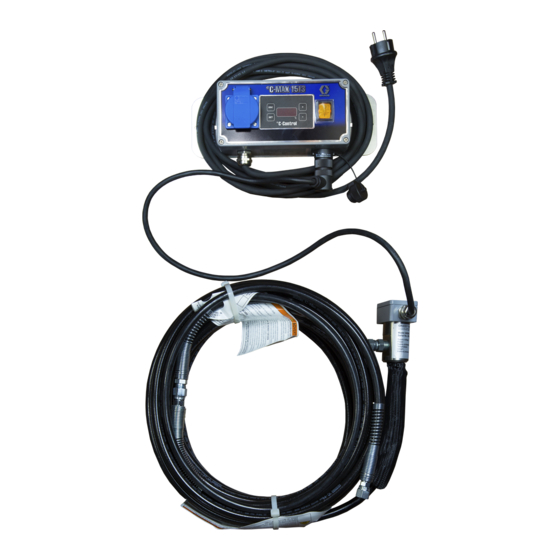

Model 24E656 C°-Max 1513
Maximum Working Fluid Pressure 3292 psi (227 Bar, 22.7 MPa)
Model 24E657 C°-Max 3023
Maximum Working Fluid Pressure 3292 psi (227 Bar, 22.7 MPa)
IMPORTANT SAFETY INSTRUCTIONS
Read all warnings and instructions in this
manual. Save these instructions.
- For monitoring and controlling fluid temperature -
- Not for use in explosive atmospheres -
- For professional use only -
+
tu re
e ra
m p
r
o ll e
T e
V I
n tr
C o
-
C
E S
T
S E
3A0476A
ENG
ti15356a
Advertisement
Table of Contents
Related Manuals for Graco 24E656
Summary of Contents for Graco 24E656
- Page 1 - For use with architectural paints and coatings with a minimum flash point of 45° C - - Not for use in explosive atmospheres - - For professional use only - Model 24E656 C°-Max 1513 Maximum Working Fluid Pressure 3292 psi (227 Bar, 22.7 MPa) Model 24E657 C°-Max 3023 Maximum Working Fluid Pressure 3292 psi (227 Bar, 22.7 MPa)
- Page 2 Warnings Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risk. Refer back to these warnings. Additional, product-specific warnings may be found throughout the body of this manual where applicable.
- Page 3 Warnings WARNING FIRE AND EXPLOSION HAZARD Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent fire and explosion: • Use equipment only in well ventilated area. • Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic drop cloths (potential static arc).
- Page 4 Warnings WARNING EQUIPMENT MISUSE HAZARD Misuse can cause death or serious injury. • Do not operate the unit when fatigued or under the influence of drugs or alcohol. • Do not exceed the maximum working pressure or temperature rating of the lowest rated system component.
-
Page 5: Safety Information
Safety Information Safety Information For safe use and handling of airless high-pressure spray equipment, observe the safety instructions provided by the manufacturer of your airless equipment. Product Overview An electrical heating conductor is located on the inside of the hose, directly in the paint stream. This component is used to heat the contents of the hose. -
Page 6: Component Identification
Component Identification Component Identification tu re e ra o ll e n tr ti15379a Component Temperature Controller Power Cord Receptacle Thermostat ON/OFF Switch Temperature Controller Cord Heated Hose/Manifold Hose Temperature Controller Cord Receptacle 3A0476A... -
Page 7: Installation
Installation Installation Hose reel units: Connect the female swivel cou- pling on the heated hose/manifold to the male threads on the hose reel swivel located on the hose Ensure that electrical equipment and systems are reel. Position the manifold as shown below: switched off before performing any installation or connection work. -
Page 8: Temperature Adjustment
Start Up Start Up Temperature Adjustment Before Starting Wear heat protective gloves and take special care if fluid temperature exceeds 110° F (43° C). NOTICE Always completely unroll and bleed the air from the To Adjust Temperature hose before each use (very important). If the air is not bled from the hose, heat transfer from the heating con- The temperature range on the controller is variable and ductor will not be uniform, and in the worst case the... -
Page 9: Troubleshooting
Troubleshooting Troubleshooting If the hose does not heat up or other problems occur, contact your Graco representative. Error Codes Error Code Definition Explanation If there is an indifferent value on the power supply of the controller Synchronization Lost board or there is no tension on L and N. -
Page 10: Technical Data
Technical Data Technical Data 24E656 Heated Hose: Supply voltage 230 V AC Power 1500 W Supply circuit protection 16 A Preset temperature 0-60 °C Length 15 m Maximum material pressure 3300 psi (227 bar, 22.7 MPa) Tip Support 0.013 24E657 Heated Hose:... - Page 11 Parts Parts ti15380a Ref. Part Description Qty. 24E692 KIT, repair, switch 24E693 KIT, repair, receptacle 24E694 KIT, repair, power cord 24E695 KIT, repair, mounting clamp 24E697 KIT, repair, C°-Max hose (15 m) 24E698 KIT, repair, C°-Max hose (30 m) 24E699 KIT, repair, C°-Max control box * The C°-Max control box will calibrate itself to the first hose/manifold assembly it is used with.
-
Page 12: Graco Standard Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
