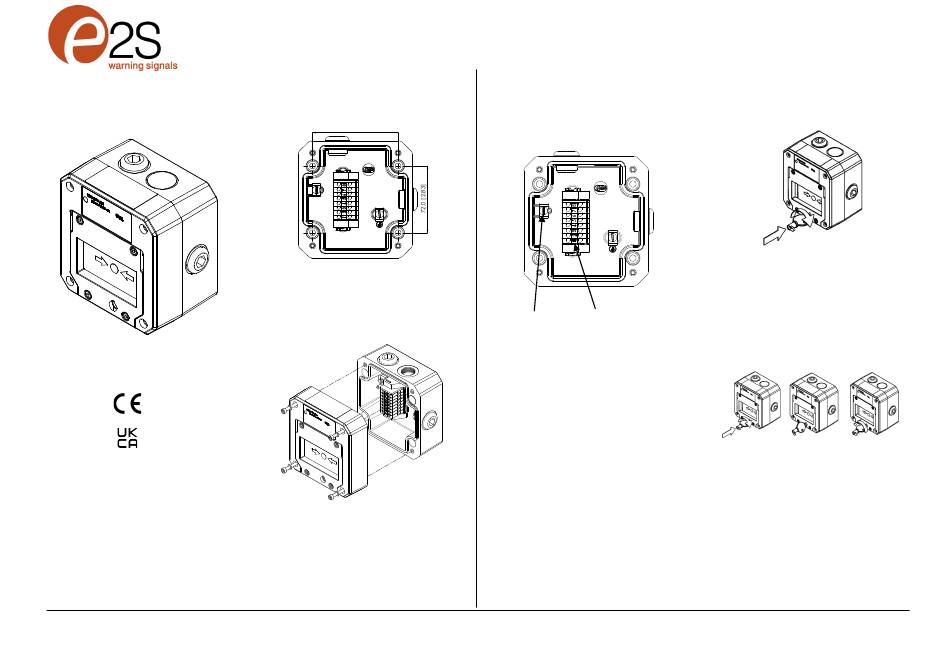

E2S WP6-BG Instruction Manual

WP6-BG
Weatherproof Break Glass
Manual Call Point
1) Introduction

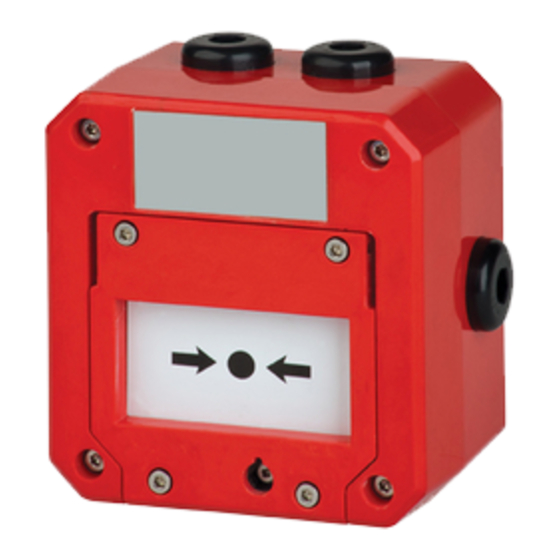

The WP6-BG is a break glass manual call point
designed to withstand harsh environments. It has
the following ratings:
CE Marking:
UKCA Marking:
IP Rating:
IP66
Ambient Temperature Range:
-40°C to +75°C
Input Voltage:
AC voltage 250V Max. Current 5.0A Max.
DC voltage 48V Max. Current 1.0A Max.
DC voltage 24V Max. Current 3.0A Max.
The enclosure is made from Red GRP (Glass
reinforced Polyester). If alternative colours are
ordered, these will be painted with an epoxy
powder coat.
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document D233-00-001-IS Issue 2 10-11-2022
WP6-BG Weatherproof Break Glass Manual Call Point
2) Call Point Location and Mounting
The location of the call point should enable ease of
access for operation and testing. The unit should
be mounted using the 4 off fixing holes which will
accept up to M4 sized fixings.
90.0 [3.54]
View of base unit showing fixing centres in mm [in]
To gain access to the mounting holes in the base
the front cover must be removed.
This is achieved by removing the 4 off M4 cap
head bolts holding on the cover.
Once the screws are removed the cover will hang
down out of the way to gain access to the Ex e
terminal block, the internal earth terminal and
mounting hole recesses.
INSTRUCTION MANUAL
3) Earthing
The unit has an internal earth terminal.
It is recommended that a cable crimp lug is used
on the earth wires.
The internal earth wire is placed under a earth
clamp which will stop the cable twisting. This is
secured by an M4 screw and spring washer.
Internal Earth DIN Rail terminals
terminal
4) Cable connections
There are 3 off cable entries for M20x1.5 cable
glands or stopping plugs with a minimum ingress
protection of IP66.
The unit can be wired in a number of different ways
depending whether normally open or normally
closed contacts are required.
Wire sizes allowable are 0.5mm² to 4.0mm²
Sheet 1 of 2
5) Testing unit operation
The break glass unit can be tested without the
need to break/replace the frangible glass element.
A test key (7mm Allen key) is used to mechanically
drop the glass down activating the switch.
The test key is inserted in the test cam and rotated
clockwise by an angle of 60º the glass element will
visibly drop down in the viewable window.
The call point switch will now change over its
contacts to operate the alarm.
Once testing is complete the unit needs to be
reset, the test key is rotated back anticlockwise by
an angle of 60º back to its original position. The
glass element should now raise up so it is level
again in the viewable window.
1. 2. 3.
Insert test Hold in Rotate back
Key rotate position anticlockwise
clockwise during to reset
60º test
