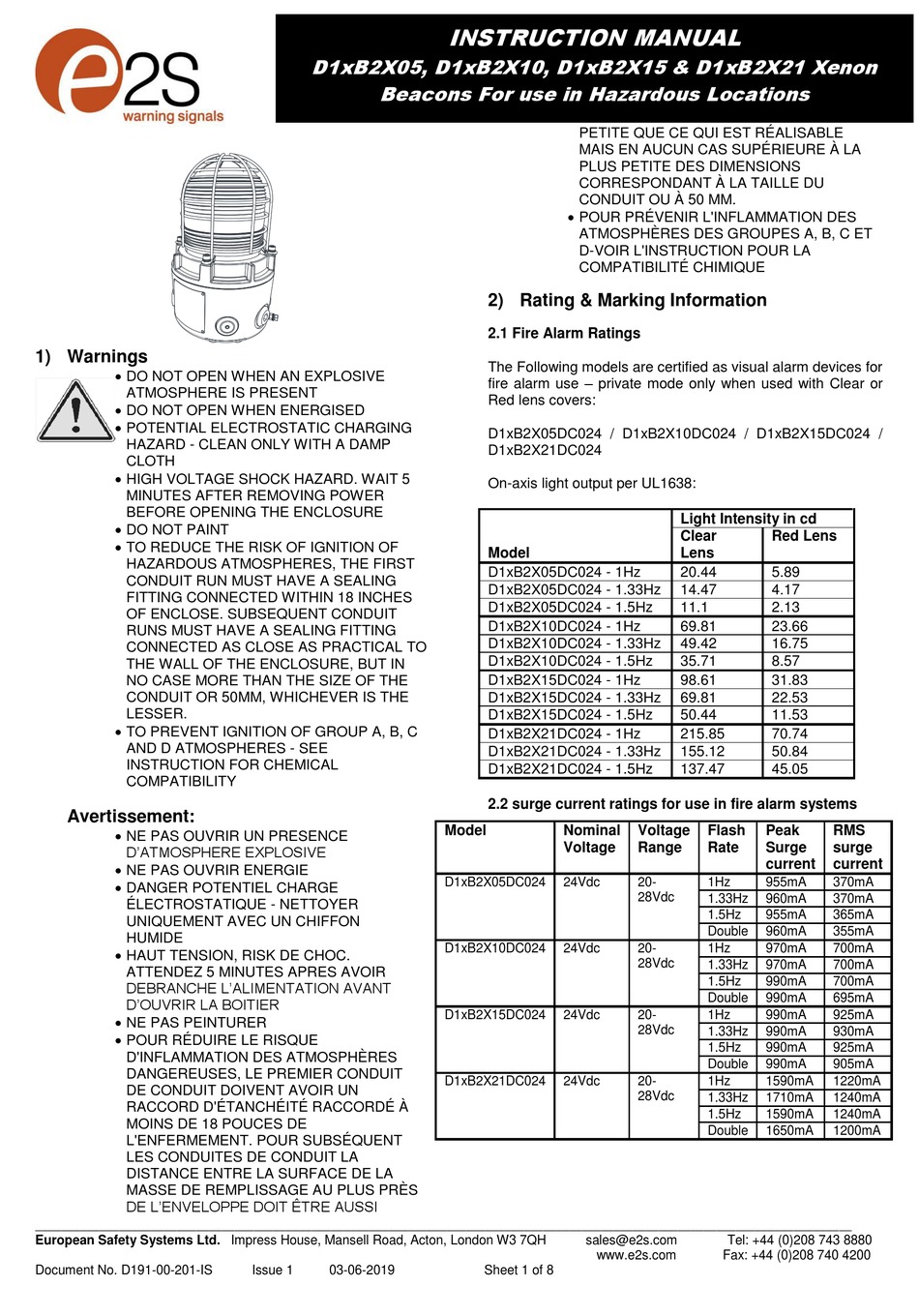

E2S D1 B2X05 Series Instruction Manual

1) Warnings
 DO NOT OPEN WHEN AN EXPLOSIVE
ATMOSPHERE IS PRESENT
 DO NOT OPEN WHEN ENERGISED
 POTENTIAL ELECTROSTATIC CHARGING
HAZARD - CLEAN ONLY WITH A DAMP
CLOTH
 HIGH VOLTAGE SHOCK HAZARD. WAIT 5
MINUTES AFTER REMOVING POWER
BEFORE OPENING THE ENCLOSURE
 DO NOT PAINT
 TO REDUCE THE RISK OF IGNITION OF
HAZARDOUS ATMOSPHERES, THE FIRST
CONDUIT RUN MUST HAVE A SEALING
FITTING CONNECTED WITHIN 18 INCHES
OF ENCLOSE. SUBSEQUENT CONDUIT
RUNS MUST HAVE A SEALING FITTING
CONNECTED AS CLOSE AS PRACTICAL TO
THE WALL OF THE ENCLOSURE, BUT IN
NO CASE MORE THAN THE SIZE OF THE
CONDUIT OR 50MM, WHICHEVER IS THE
LESSER.
 TO PREVENT IGNITION OF GROUP A, B, C
AND D ATMOSPHERES - SEE
INSTRUCTION FOR CHEMICAL
COMPATIBILITY
Avertissement:
 NE PAS OUVRIR UN PRESENCE
D'ATMOSPHERE EXPLOSIVE
 NE PAS OUVRIR ENERGIE
 DANGER POTENTIEL CHARGE
ÉLECTROSTATIQUE - NETTOYER
UNIQUEMENT AVEC UN CHIFFON
HUMIDE
 HAUT TENSION, RISK DE CHOC.
ATTENDEZ 5 MINUTES APRES AVOIR
DEBRANCHE L'ALIMENTATION AVANT
D'OUVRIR LA BOITIER
 NE PAS PEINTURER
 POUR RÉDUIRE LE RISQUE
D'INFLAMMATION DES ATMOSPHÈRES
DANGEREUSES, LE PREMIER CONDUIT
DE CONDUIT DOIVENT AVOIR UN
RACCORD D'ÉTANCHÉITÉ RACCORDÉ À
MOINS DE 18 POUCES DE
L'ENFERMEMENT. POUR SUBSÉQUENT
LES CONDUITES DE CONDUIT LA
DISTANCE ENTRE LA SURFACE DE LA
MASSE DE REMPLISSAGE AU PLUS PRÈS
DE L'ENVELOPPE DOIT ÊTRE AUSSI
_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D191-00-201-IS
D1xB2X05, D1xB2X10, D1xB2X15 & D1xB2X21 Xenon
Beacons For use in Hazardous Locations
Issue 1 03-06-2019
INSTRUCTION MANUAL
PETITE QUE CE QUI EST RÉALISABLE
MAIS EN AUCUN CAS SUPÉRIEURE À LA
PLUS PETITE DES DIMENSIONS
CORRESPONDANT À LA TAILLE DU
CONDUIT OU À 50 MM.
 POUR PRÉVENIR L'INFLAMMATION DES
ATMOSPHÈRES DES GROUPES A, B, C ET
D-VOIR L'INSTRUCTION POUR LA
COMPATIBILITÉ CHIMIQUE
2) Rating & Marking Information
2.1 Fire Alarm Ratings
The Following models are certified as visual alarm devices for
fire alarm use – private mode only when used with Clear or
Red lens covers:
D1xB2X05DC024 / D1xB2X10DC024 / D1xB2X15DC024 /
D1xB2X21DC024
On-axis light output per UL1638:
Model
D1xB2X05DC024 - 1Hz
D1xB2X05DC024 - 1.33Hz
D1xB2X05DC024 - 1.5Hz
D1xB2X10DC024 - 1Hz
D1xB2X10DC024 - 1.33Hz
D1xB2X10DC024 - 1.5Hz
D1xB2X15DC024 - 1Hz
D1xB2X15DC024 - 1.33Hz
D1xB2X15DC024 - 1.5Hz
D1xB2X21DC024 - 1Hz
D1xB2X21DC024 - 1.33Hz
D1xB2X21DC024 - 1.5Hz
2.2 surge current ratings for use in fire alarm systems
Model Nominal
Voltage
D1xB2X05DC024 24Vdc
D1xB2X10DC024 24Vdc
D1xB2X15DC024 24Vdc
D1xB2X21DC024 24Vdc
sales@e2s.com
www.e2s.com
Sheet 1 of 8
Light Intensity in cd
Clear Red Lens
Lens
20.44 5.89
14.47 4.17
11.1 2.13
69.81 23.66
49.42 16.75
35.71 8.57
98.61 31.83
69.81 22.53
50.44 11.53
215.85 70.74
155.12 50.84
137.47 45.05
Voltage Flash Peak
Range Rate Surge
current
20- 1Hz 955mA
28Vdc
1.33Hz 960mA
1.5Hz 955mA
Double 960mA
20- 1Hz 970mA
28Vdc
1.33Hz 970mA
1.5Hz 990mA
Double 990mA
20- 1Hz 990mA
28Vdc
1.33Hz 990mA
1.5Hz 990mA
Double 990mA
20- 1Hz 1590mA
28Vdc
1.33Hz 1710mA
1.5Hz 1590mA
Double 1650mA
Tel: +44 (0)208 743 8880
Fax: +44 (0)208 740 4200
RMS
surge
current
370mA
370mA
365mA
355mA
700mA
700mA
700mA
695mA
925mA
930mA
925mA
905mA
1220mA
1240mA
1240mA
1200mA
