LEGRAND MyHOME MHKIT4 Technical Manual

LEGRAND MyHOME MHKIT4 Technical Manual

Lighting control and energy monitoring kit

Advertisement

Quick Links

MyHOME
and Energy Monitoring Kit – MHKIT4
Technical Guide
Dining
Room
Entry
Bedroom 1
Bathroom
Lighting Control
®
Alfresco
Kitchen
Corridor
Bedroom 2
0
1
Home automation solutions
for a residential home
Lounge
WC
Cupboard
Bedroom 3
3
6m

Advertisement

loading
Need help?

Need help?

Do you have a question about the MyHOME MHKIT4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LEGRAND MyHOME MHKIT4

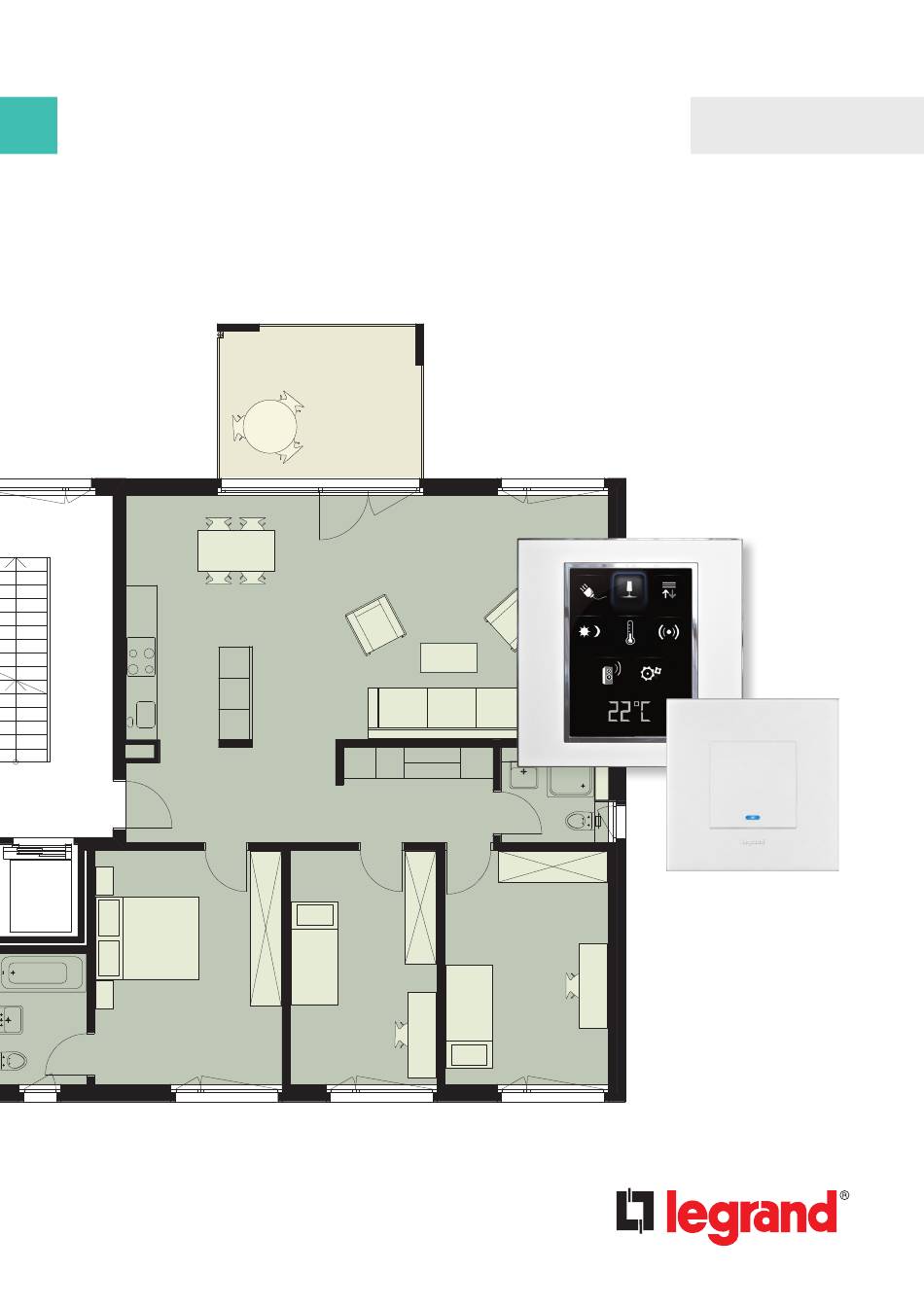

  • Page 1 MyHOME Lighting Control ® and Energy Monitoring Kit – MHKIT4 Technical Guide Home automation solutions Alfresco for a residential home Dining Room Lounge Kitchen Entry Corridor Cupboard Bedroom 1 Bedroom 2 Bedroom 3 Bathroom...
  • Page 2: Table Of Contents

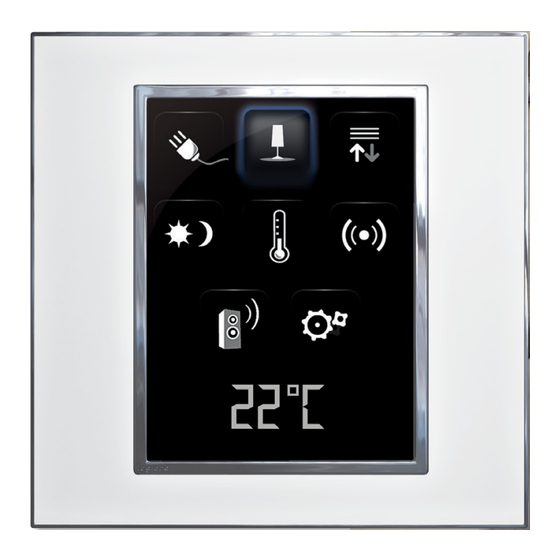

    Contents Kit inclusions �����������������������������������������������������3 Installation configuration and placement ��������4 Kit wiring connection ����������������������������������������5 Datasheets ���������������������������������������������������������6 User Guide �����������������������������������������������������118 Warranty ����������������������������������������������������������19 The MyHOME Lighting Control and Energy Monitoring Kit provides a solution to control lighting circuits, switching and dimming, and the ability to monitor energy consumption� It includes a 3�5"...
  • Page 3: Kit Inclusions

    Recommend using HPM or Legrand dimmable LED fixtures� † Mobile device activation For further details on mobile setup please contact the Legrand Customer Service team on 1300 369 777� Warranty Legrand 4 year extended warranty� See page 15 for details�...
  • Page 4: Installation Configuration And Placement

    Installation configuration and placement plan Zone 4 - Example relay Zone 1 - dimmer Zone 2 - dimmer Zone 5 - relay...
  • Page 5: Kit Wiring Connection

    Kit wiring connection Panel Board 230 Vac 230 Vac 230 Vac 12W19 12W19 12W19 220-240V ~ 50 - 60 Hz 200W 220-240V ~ 50 - 60 Hz 200W 220-240V ~ 50 - 60 Hz 200W 110-127V ~ 50 - 60 Hz 100W 110-127V ~ 50 - 60 Hz 100W...
  • Page 6: Datasheets

    Datasheets F411/2 2 relay actuator in DIN module Description Actuator for installation in DIN rail distribution boards or switchboards� This device incorporates two independent relays for the activation of 2 loads, and includes local control push- buttons for each individual load, which are only active if the actuator has been configured�...
  • Page 7 F411/2 Physical configuration Virtual configuration The actuator performs all the basic operating modes that can be Using the Virtual configurator software it is possible to perform configured directly on the control� Moreover further operating all the functions listed below: modes with the configurator in position M of the same actuator ■...
  • Page 8 Datasheets F520 Bus meter with 3 inputs for toroids Description Front view The SCS device measures currents and voltages of separate lines (up to 3), connecting maximum three toroids to the appropriate inputs (one toroid, item 3523 supplied as standard)� The meter processes and saves the following variables: ■...
  • Page 9 F520 Configuration Wiring diagrams The device can be configured by connecting the physical configurators to the correct sockets (Physical configuration)� Connection of the meter to the bus, the line, and the toroid 230 Vac The device is provided with socket for five configurators: ■...
  • Page 10 Datasheets F420 Scenario module Description This device allows you to manage scenarios for Automation, Sound system and Temperature Control systems which have been created, modified and activated using different devices of the Automation system� Up to 16 scenarios may be saved in the scenario module, with up to 100 controls each�...
  • Page 11 10 11 F420 Configuration The combination of the scenario module with a control device is ensured by assigning to both items the same address� This is key 1 key 2 identified by the configurators with a numeric value for position A = 0-9 and position PL = 1-9�...
  • Page 12 Datasheets 67552 Basic control for 2 independent loads Description Two-module, push mounted and lowered special control with 4 push-buttons and 4 LEDs� The device can control one single actuator for single or double loads, or two actuators for single or double loads, independent from each other�...
  • Page 13 12 13 67552 Configuration Possible function Combination of key covers used/Configurator in M1 and M2 1 Function 2 Functions ON control – OFF control – Timed ON control 1 – 8 – Dimmer - ON control (upper key) OFF (lower key) + adjustment –...
  • Page 14 Datasheets 67554 Basic Control of TBA Description Three module flush-mounting control, with six pushbuttons and three status notification LEDs� This can be used to control 1-relay single load actuators, 2 interlocked relay actuators, and to send controls for the management of advanced devices, when configured with the CEN configurator�...
  • Page 15 14 15 67554 Configuration Device with three independent controls� It can drive actuators for 1-relay single loads and actuators with 2 interlocked relays and can send controls for the management of advanced devices, if configured using the CEN configurators� On the back of the device there are three distinct A and PL positions, which refer to the same number of pushbuttons on the front�...
  • Page 16 Datasheets F418 SCS Dimmer Technical features Halogen LED dimmer Compact CFL lamps lamps dimmer lamps 220 – 240 Vac 200 W 0,9 A 200 W 0,9 A 200 W 0,9 A 110 – 127 Vac 100 W 0,9 A 100 W 0,9 A 100 W 0,9 A...
  • Page 17 16 17 Power supply Warning PRI: 220 – 240 V~ During the operation of electric devices powered by the electric 200 – 190 mA power line, some parts may be subjected to dangerous voltage 50/60 Hz levels� The installation and assembly of the device must be performed in accordance with the following installation rules: ■...
  • Page 18: User Guide

    User Guide Scenarios Lets you activate scenarios that have been previously stored in one or more “scenario units” and “scenario modules” of your MyHOME system� Touch the scenario icon � The display will show the page where you can find the scenarios you can activate� NIGHT Scenario 1 Scenario 2...
  • Page 19: Warranty

    MyHOME Lighting Control and Energy Monitoring kit. When you buy this kit you can be certain that the product lives up to the high standards of Legrand and that if in the unlikely event there is a problem with your kit, it will be repaired by a fully qualified and experienced Legrand technician.
  • Page 20 HPM Legrand Australia Building 4, Nexus Industry Park Lyn Parade, Prestons NSW 2170 Tel: 1300 369 777 www�legrand�com�au HPM Legrand New Zealand 106-124 Target Road, Glenfield Auckland 0627 New Zealand Tel: 0800 476 009 www�legrand�co�nz 4.5 Zimmerwohnung 116.5 m2...
