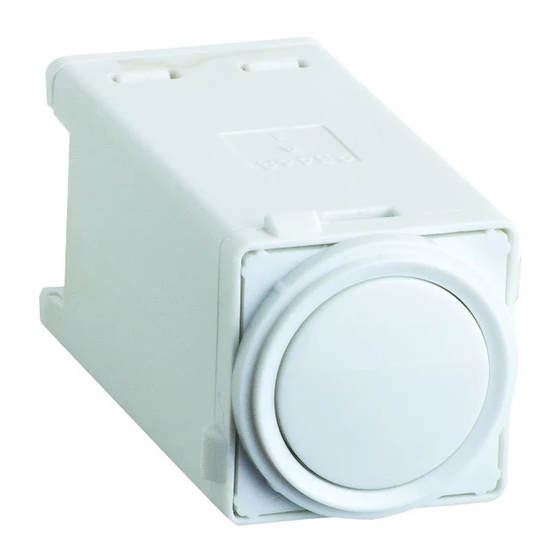

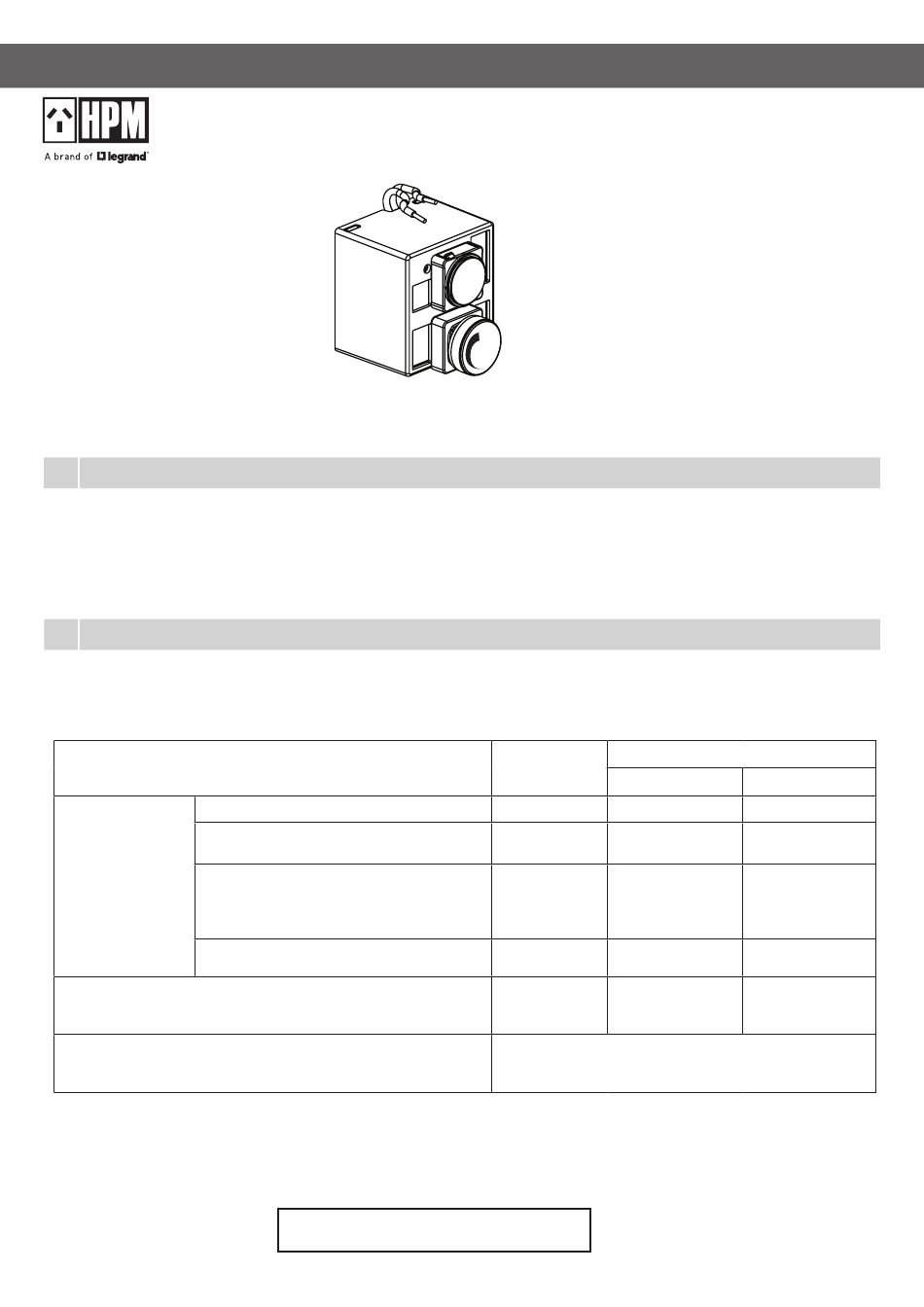

LEGRAND HPM 700TM Instruction Manual

Please read carefully: Read through these instructions completely before commencing installation. Retain for future use. This product should be
installed by a licensed electrical contractor or similarly qualified person.
1

Operation

■ Turn the knob clockwise to increase brightness.
■ Turn the knob anticlockwise to decrease brightness.
■ Over-temperature protection: If the dimmer gets too hot (due to overloading or insufficient de-rating), the lamp brightness is
automatically reduced. After the dimmer cools down, normal operation is automatically resumed. Be sure to correct the cause of
the high temperature.
2

Technical Characteristics

■ Nominal Input Voltage: 230-240 V a.c. 50 Hz
■ Operating Temperature: 0°C to 50°C
■ Terminal Capacity: 2 x 1.5 mm²
Load Type
DLI70 Downlights
●
● AZA+, DLI90, DLI110, DLI125 & DLI150 Downlights
● R80 Dimmable Globe
● DLS, Dalia, Azalea & Freesia Downlights
Dimmable LED Lamps
Luna Panel Lights
●
● Calla Step Lights
● Zinnia Starlights
● All other models (See Note1)
Incandescent Lamps
●
● Halogen Lamps
Electronic Transformers
●
● Fluorescent Lamps
● Wirewound Transformers
Fan Motors
●
Notes:
1. Not compatible with all dimmable LEDs. Bench test prior to installation. Dimming range may be reduced with some models.
2. When used in ambient temperatures greater than 25°C, the dimmer must be de-rated by 10% for every increase of 5°C.
WARNING - DO NOT MEGGER THIS PRODUCT
TRAILING EDGE DIMMER
Minimum Load
700TM
1 Lamp 28 Lamps
1 Lamp 21 Lamps
1 Lamp 14 Lamps
14 Lamps or 700VA
1 Lamp
(whichever is smaller)
10VA 700VA
Not suitable
Instruction Manual
Cat.No.
700TM/1000TM
Maximum Load
1000TM
40 Lamps
30 Lamps
20 Lamps
20 Lamps or 1000VA
(whichever is smaller)
1000VA
