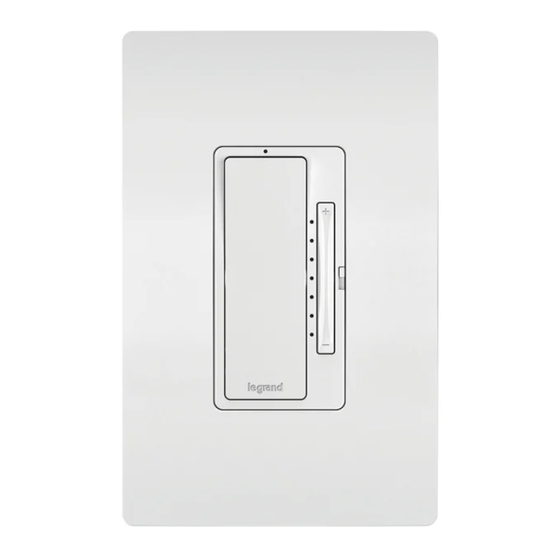

LEGRAND HKRL50 Installation Manual

Smart tru-universal dimmer with homekit technology

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Smart Tru-Universal Dimmer

with HomeKit Technology

Room

HKRL50

Table of Contents

Summary of Contents for LEGRAND HKRL50

Page 1 Smart Tru-Universal Dimmer with HomeKit Technology Room HKRL50...
Page 2: Table Of Contents
table of contents before you start ........3 faqs ........26–30 what you need ........4 warranty ........31 getting to know your dimmer ..6-7 regulatory information ..32–35 installation and setup ....8–23 support ........36 specifications ......24-25 notes...
Page 3: Before You Start
• Use ONLY with dimmable lighting loads • Install in a non-metallic electrical box to protect wireless signal strength • Do not use to power medical equipment Visit the Legrand website at www legrand us/radiant/homekit aspx to learn more about your smart device...
Page 4: What You Need
what you need REQUIRED: Phillips-head screwdriver Flat blade screwdriver YOU MAY ALSO NEED: Non-contact voltage tester, pliers, wire cutter, wire stripper, electrical tape, flashlight, radiant screwless wallplate (included), wiring leads (included), and ® wire nuts (included) NOTE: Exercise caution when using power tools. Overtightening the screws can damage the device.
Page 6: Getting To Know Your Dimmer
• To return the dimmer to factory default, press and hold the top of the paddle for 15 seconds Then, remove the device from the Legrand Home app (or Apple Home app) LED Locator Indicates the current state of the device Refer to Light “LED Locator Light Explanations”...
Page 7 LED LOCATOR LIGHT EXPLANATIONS State of Light Explanation Color Slowly Flashing Device is attempting to connect to Amber the network Solid White Connected to Wi-Fi and turned off No Light Device is on Rapidly Flashing N-Way Pairing mode: device is Amber ready to pair with the remote(s) Flashing Red...
Page 8: Installation And Setup
installation & setup step one turn off the power for your device at the circuit breaker Flip the existing light switch multiple times to confirm the power is off NOTES: • If there are multiple devices next to your existing light switch, make sure power is off at the circuit breaker for all of those devices.
Page 10 installation & setup step two remove the existing device Check for the following wires: HOT or LINE: Receives power from the circuit box Referred to as “hot” for the purposes of this guide Do not touch or let “hot” wires contact other wires LOAD: Directs power to your light(s) NEUTRAL: Creates a path to return current to the power source when the device is off Required for your dimmer installation...
Page 11 Load Supply “Hot”...
Page 12 installation & setup step three wire the smart dimmer When connecting each wire, loosen the terminal screw, insert the wire into a terminal slot, and tighten the terminal screw until the wire is secured Connect the neutral wires to the WHITE terminal slots Connect the load wire to any LOAD terminal slot Connect the hot wire to any HOT terminal slot Connect the ground wire to the green wiring lead on the device Use a wire nut...
Page 13 Terminal screw Load Terminal slot Supply “Hot” NOTE: For multi-gang installations, refer to “specifications” on page 24.
Page 14 installation & setup step four secure the smart dimmer Gently fold the wires into the electrical box Be careful not to pinch a wire or loosen any wire nuts Use the device screws to secure the smart dimmer to the electrical box Do not fully tighten the screws...
Page 16 installation & setup step five test the smart dimmer NOTE: See page 6 for feature details. Turn the power back on at the circuit breaker Press the paddle switch to turn your light on and off Use the dimmer paddle to adjust the level of your light(s) TROUBLESHOOTING TIP: If the device is not powering, reference the “faqs”...
Page 18 installation & setup step six attach the screwless wall plate Noting which side faces out, align the sub-plate over the device screws Use the sub-plate screws (provided) to secure the sub-plate to the smart dimmer Tighten the device screws to secure the smart dimmer to the electrical box Angle the end of the screwless wall plate over the top edge of the sub-plate Push the screwless wall plate down and in until it “snaps”...
Page 21 installation & setup step seven set up your system Connect your iPhone or iPad (iOS 11 or later) to a 2 4 GHz Wi-Fi network ® using your router utility software Download and open the free Apple Home app from the App Store Tap the ”+”...
Page 22 NOTE: Your product natively works with Siri after setup, but integration options are also available for your Alexa or Google Assistant. Reference the appropriate user guide for your voice assistant, by visiting one of the following sites: http://legrand.us/radiant/homekit/siri http://legrand.us/radiant/homekit/alexa http://legrand.us/radiant/homekit/google...
Page 23 The use of a HomeKit-enabled accessory requires the following permissions: • Settings> iCloud > iCloud Drive> Turn On • Settings> iCloud > Keychain > Turn On • Settings> Privacy > HomeKit > Legrand Home> Turn On For troubleshooting visit https://www legrand us/support/onq aspx Keep your individual HomeKit Setup Code in a secure area.
Page 24: Specifications
450 W / 450 W 450 W / 450 W / 450 W Legrand reserves the right to change specifications without notice NOTE: The dimmer ships in forward phase mode to accommodate most load types. For loads that require reverse phase dimming, such as ELV loads, adjust the phase using the app.
Page 25 NOTES: For multi-gang installations, use pliers to break off the device fins.
Page 26: Faqs
faqs Which wire is the “hot” wire versus the “load” wire? To determine this safely, begin by confirming that power is off to the device location at the circuit breaker Cap all of the exposed wires in the electrical box, then turn the power back on to the device location Find your non- contact voltage tester Place your voltage tester next to each of the wires The voltage tester should indicate which of the two wires is receiving power from the circuit box (refer to the voltage tester’s user manual for details on...
Page 27 faqs Something is going on with my device connection. Is it possible to reset my device? Yes To reset your device to factory settings, press and hold the top of the paddle for 15 seconds If you are still experiencing connection issues, refer to the “faqs” on page 28 &...
Page 28 My Legrand Home device failed to connect to the Apple Home app. What can I do? Perform the following actions to test your connectivity: • Make sure your accessory is powered on • If you have a dual band router, connect your phone to a 2 4 GHz Wi-Fi...
Page 29 • Confirm the device is shown on screen, then scan the setup code located on the device, instruction manual, or inner packaging If the app displays “Couldn’t add accessory” after scanning the code: a Exit the app Make sure it is not running in the background b Restart the app c Restore the accessory to factory settings d Add the accessory again...
Page 30 • Check the router settings to identify any limitations to the number of simultaneous client connections • Restart your HomeKit accessory or restore your HomeKit accessory to factory settings, then add your HomeKit accessory to the Legrand Home app • Update the firmware to the latest version...
Page 31: Warranty
warranty This product is warranted under normal use against defects in workmanship and materials for as long as you own it If the product fails due to a manufacturing defect during normal use, return it for a replacement at the store where purchased or contact Technical Support at 1-800-223-4162, option 3 All replacement requests must include a dated sales receipt (legible copies are acceptable)
Page 32: Regulatory Information
regulatory information FCC NOTICE This device complies with Part 15 of the FCC Rules and Industry Canada license- exempt RSS standard(s) Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesirable operation This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules These limits are designed to...
Page 33 If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •...
Page 34 regulatory information This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment This equipment should be installed and operated with a minimum distance of 20 cm between the transmitter’s radiating structure(s) and the body of the user or nearby persons This transmitter must not be co-located or operating in conjunction with any other antennae or transmitter The antennas used for this transmitter must be installed to provide a separation distance of at least 0 5 cm from all persons and must not be co-...
Page 35 IC NOTICE This device complies with Industry Canada license-exempt RSS standards Operation is subject to the following two conditions: (1) this device may not cause interference; and (2) this device must accept any interference, including interference that may cause undesired operation of the device RF EXPOSURE STATEMENT This equipment meets the SAR evaluation limits given in RSS-102 Issue 5 requirements at the minimum separation distance of 15 mm to the human body Note: Any changes...
Page 36: Support
IF YOU NEED HELP INSTALLING YOUR DEVICE, TALK TO OUR TECHNICAL SUPPORT TEAM: PHONE: 1-800-223-4162, option 3 8:00 a m to 5:00 p m EST (M-F) EMAIL: technical support-hs@legrand us CHAT: https://www legrand us/support/onq aspx (Click on the icon to open a dialogue box)
Page 37: Notes
notes...
