LEGRAND radiant WWP20 - Smart Plug-In Dimmer, Wi-Fi Manual

before you start

Review this guide in its entirety. Consult an electrician with any questions or if you are unsure of your abilities.

To reduce the risk of injury and/or overheating and damage to other equipment:

• For dry, indoor use only.
• Connect the Smart Plug-In Dimmer to a 120 VAC, 60 Hz power source ONLY.
• This Smart Plug-In Dimmer is intended for lamps with dimmable bulbs ONLY.
• To reduce the risk of electrical shock, this equipment has a grounding type plug that has a third (grounding) pin. If the plug does not fi t in outlet, contact a qualified electrician to install the proper outlet.

Visit www.legrand.us/radiant/smart-lighting/support for support.

SCAN TO WATCH THE INSTALLATION VIDEO

installation & setup

plug in the smart plug-in dimmer

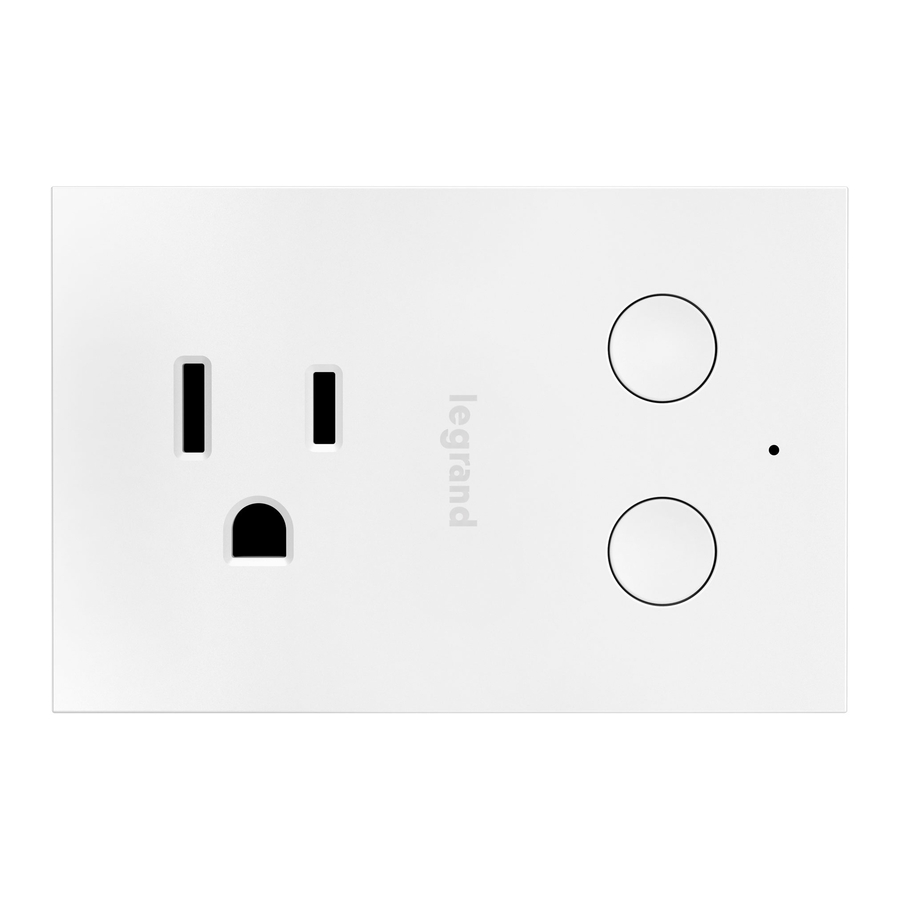

Insert the lamp or device to be controlled into the outlet on the Smart Plug-In Dimmer.

The Smart Dimmer up/down buttons can be reversed for use in outlets with the ground plug up:

• Hold the bottom button while plugging in your dimmer. The dimmer automatically adjusts the orientation.


test the smart plug-in dimmer

With the lamp or device on, press the top button on the Smart Plug-In Dimmer to turn your device on.

1. With the lamp or device on, press the top button on the Smart Plug-In Dimmer to turn your device on.
2. Hold the bottom button to decrease the light level.
3. Hold the top button to increase the light level.
4. Press the bottom button to turn your device off.

TROUBLESHOOTING TIP:
If the device is not responding to the dimmer, confirm that the outlet is powered and that the device is functional.

set up your system

1. Download and launch the Smart Lights, Wi-Fi app by Legrand. The app is available on the App Store or on Google Play.

SCAN TO DOWNLOAD

1. Connect your Smart Plug-In Dimmer to your home network by following the step by step instructions in the app.
2. Use the app to control your Smart Plug-In Dimmer.

SCAN TO WATCH HOW TO SET UP THE APP

Google Play and the Google Play logo are trademarks of Google LLC.
App Store is a service mark of Apple Inc., registered in the U.S. and other countries.

getting to know your plug-in

LED LOCATOR LIGHT EXPLANATIONS

LED Color	State of Light	Explanation
	Blinking Amber	Factory default; ready to connect to your network.
	Solid White	Device is connected to your network.

RESET TO FACTORY DEFAULT

You can delete the device from the app to reset or while device is off press and hold dim button for 10 seconds then release.

NOTE: When it is turned on, the Smart Dimmer recalls the most recent dimming level.

specifications

Legrand reserves the right to change specifications without notice.

NOTE: The dimmer ships in forward phase mode to accommodate most load types. For loads that require reverse phase dimming, such as ELV loads, adjust the phase using the app.
