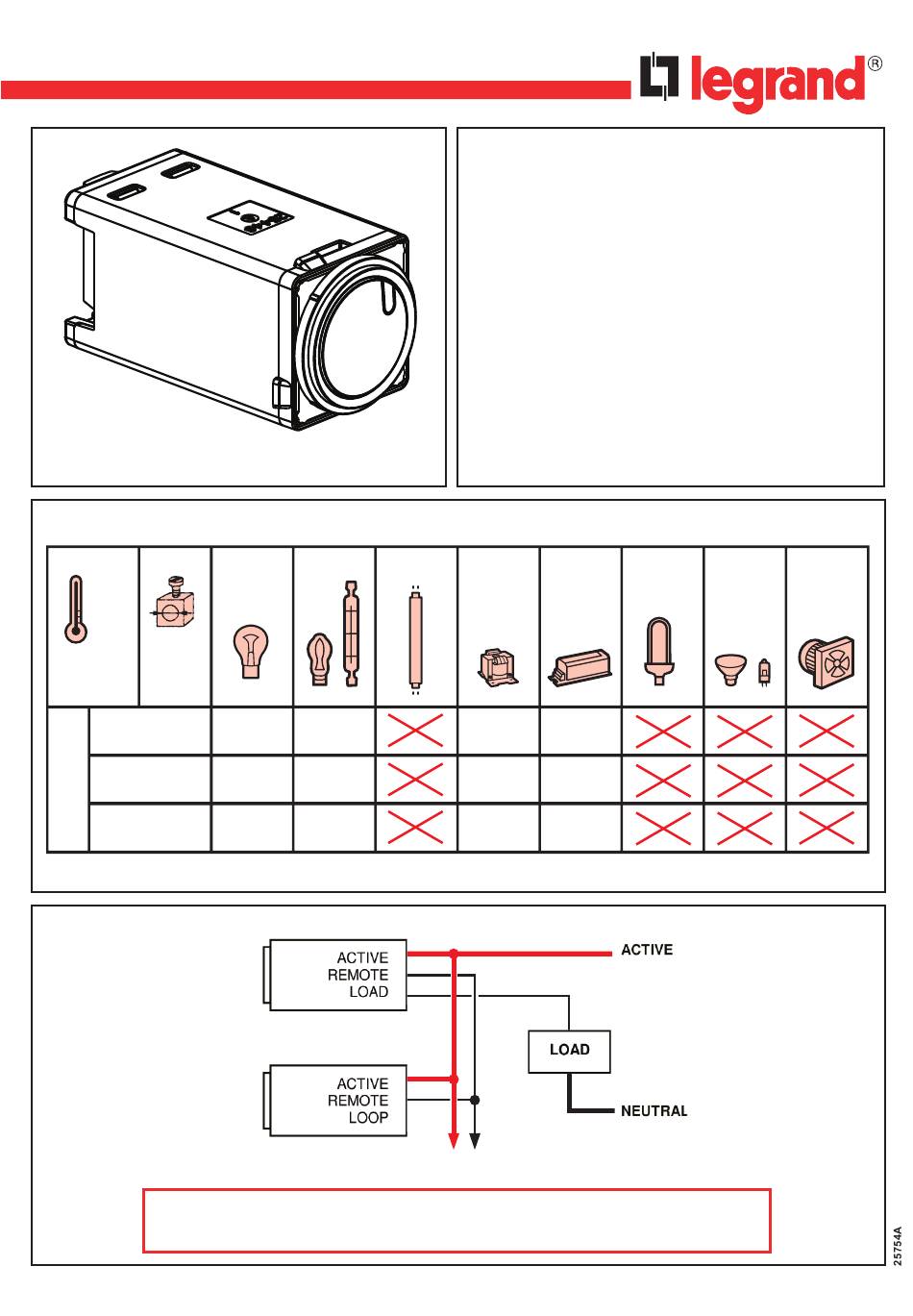

LEGRAND Excel Life EM450UP Quick Start Manual

Excel Life
TM
Push Button Dimmer
EM450UP
Technical characteristics
Incandescent
+ 50 C
o
+ 0 C
o
1 x 2.5 mm 2
2 x 1.5 mm 2
230 - 240V a.c.
50Hz
1 dimmer
per plate
Max 2 dimmers
load per plate
3 or more dimmers
per plate
Minimum load = 10VA for all load types
Wiring
● Connect optional
Secondary Control
Buttons (EM800SLAVE)
to enable dimming from
multiple locations.
Important:
An unlimited number of EM800SLAVE can be connected to an EM450UP.
However, the total length of the remote wire used to interconnect all of the EM800SLAVE should not exceed 50 metres.
Halogen Fluorescent
tube
450W
450W
400W 400W
350W 350W
EM450UP
EM800SLAVE
TO ADDITIONAL EM800SLAVE
Operation
● A short button press turns the dimmer on and off. When turned on, the
dimmer will go immediately to the same brightness level as when it was last
turned off.
● A long button press will cause the dimmer brightness to go up or down
When dimming up, dimming will stop when maximum brightness is reached,
and when dimming down, dimming will stop when minimum brightness
is reached. Release the button and then hold down again to change the
dimming direction.
● Over-temperature protection If the dimmer gets too hot (due to
overloading or insufficient de-rating), the lamp brightness is automatically
reduced. After the dimmer cools down, normal operation is automatically
resumed. Be sure to correct the cause of the high temperature!
● Short-circuit protection If the dimmer receives a short circuit or surge
(due to faulty wiring or lamp failure), it automatically turns itself off before
damage can occur. Simply press the push-button to resume operation. Be
sure to correct the cause of the short circuit!
Wirewound Electronic Compact
transformer transformer Fluorescent
270VA
450VA
240VA 400VA
210VA 350VA
LED Fan
motor
