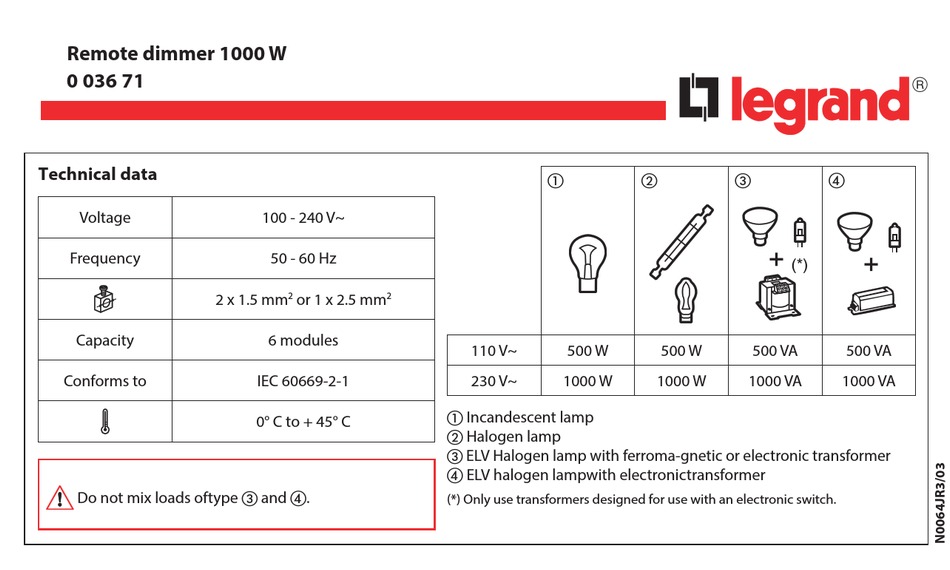

Remote dimmer 1000 W
0 036 71
Technical data
Voltage
Frequency
2 x 1.5 mm
Capacity
Conforms to
Do not mix loads oftype and .
100 - 240 V~
50 - 60 Hz
or 1 x 2.5 mm
2
2
6 modules
IEC 60669-2-1
0° C to + 45° C
110 V~
500 W
230 V~
1000 W
Incandescent lamp
Halogen lamp
ELV Halogen lamp with ferroma-gnetic or electronic transformer
ELV halogen lampwith electronictransformer
(*) Only use transformers designed for use with an electronic switch.
(*)
500 W
500 VA
1000 W
1000 VA
500 VA
1000 VA
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for LEGRAND 0 036 71
Summary of Contents for LEGRAND 0 036 71
- Page 1 Remote dimmer 1000 W 0 036 71 Technical data Voltage 100 - 240 V~ Frequency 50 - 60 Hz 2 x 1.5 mm or 1 x 2.5 mm Capacity 6 modules 110 V~ 500 W 500 W...
- Page 2 Description Indicates the type ofload LEARN indicator light Ifthe type oflighting load is changed, press simultaneously for 10 secs on the ON, O, +, -, buttons on the front.The colour of the LED (green/orange)has no bearing on the correct functioning of the product.
-
Page 3: Safety Instructions
Do not open up the device. All Legrand products must be opened and repaired only by personnel trained and appro-ved Programming or learning key. by Legrand. - Page 4 Cabling Important : - Ferromagnetic transformers must be charged to over 60% of their nominal power. - Take into account the efficiency ofthe ferromagnetic transformers when calculating the acceptable power (example: transformer for a 50 W lamp with an efficiency return of 0.78 ð...
- Page 5 Cabling with single push-button Short-circuit the product Single Single push-button pushbutton 100 m max.
- Page 6 Local functioning Action Short press on the ON/+ key Short press on the OFF/- key Long press on the ON/+ key Long press on the OFF/- key...
- Page 7 Local functioning (continued) Action Short press on the 1/+ key Short press on the 2/- key Long press on the 1/+ key Long press on the 2/- key...
- Page 8 Customising the light level of keys 1 and 2 x Action From key 1/+ Required Adjustment of the light level required: level - By a long press on the ON/+ key - By a long press on the OFF/- key Saving: After switch- - By pressing simultaneously on keys 1/+ and ON/+...
- Page 9 Customising the light level of keys 1 and 2 x (continued) Action Level memory To activate level memory: simultaneous long press on buttons OFF/- and 1/+ After switch-off, the load will light up again at the previous 10 secs 10 secs level Required level...
-
Page 10: Push-Button Operation
Push-button operation Action Action Short press Long press Short press Long press... - Page 11 Push-button operation (continued) Action Action Short press Short press Long press...
-
Page 12: Resetting Factory Configuration
Resetting factory configuration Indicator light Action status Remote dimmer transmitter: Press the LEARN key Press the LEARN key and keep it pressed for 10 seconds Legend The indicator light The indicator light blinks The indicator light blinks The indicator light goes out slowly rapidly...
