- Page 1 User Manual 1050 Pt100 Simulator Version 1.2 11-22 Time Electronics Ltd Unit 5, TON Business Park, 2-8 Morley Road, Tonbridge, Kent, TN9 1RA, United Kingdom. T: +44 (0) 1732 355993 | F: +44 (0) 1732 350198 mail@timeelectronics.co.uk | www.timeelectronics.com...
- Page 2 All rights reserved. Nothing from this manual may be multiplied, or made public in any form or manner, either electronically or hard copy, without prior written consent from Time Electronics Ltd. This also applies to any schematics, drawings and diagrams contained herein.
-
Page 3: Table Of Contents
Time Electronics 1050 Pt100 Simulator User Manual Contents Introduction ............................ 2 Specifications ..........................3 Operation ............................4 Front Panel Controls and Connections ....................4 Operating Instructions ........................... 5 Warranty and Servicing ......................... 6... -
Page 4: Introduction
Pt100 devices it exceeds the performance of class A and B. The 1050 is particularly suitable for users operating in the -80 to +140 °F range and requiring performance exceeding class A (better than ± 0.5 °F at 0 °F). -
Page 5: Specifications
Traceable (Factory) and accredited (ISO 17025). Supplied with ........Carry case and user manual. Country of origin ......United Kingdom. Ordering Information 1050 ..........Pt100 Simulator (°F version) C161 ..........Traceable calibration certificate (Factory) C114 ..........Accredited calibration certificate (ISO 17025) -
Page 6: Operation

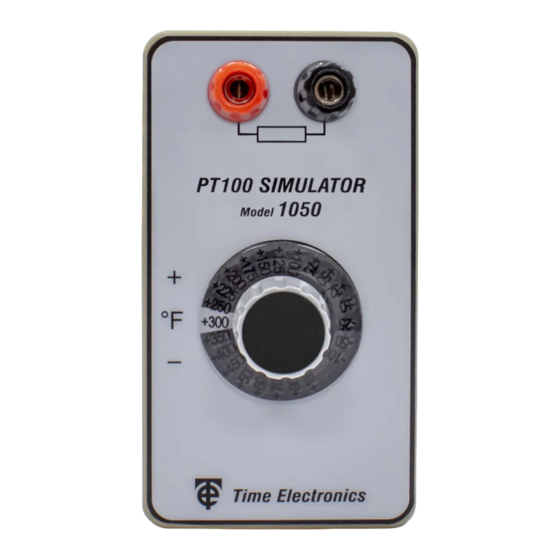

Time Electronics 1050 Pt100 Simulator User Manual Operation Front Panel Controls and Connections Red 4 mm terminal post Black 4 mm terminal post Resistance output terminal Resistance output terminal 23 set point selector switch Selects output value of resistance/temperature. -
Page 7: Operating Instructions
User Manual Operating Instructions Connection to the 1050 is via 4mm standard plugs, or clamped bare twisted wires. Two connections red and black connect to the simulated temperature resistive element. To select the temperature, rotate the dial until the required temperature is displayed in the selector window. -
Page 8: Warranty And Servicing
Time Electronics’ total liability is limited to repair or replacement of the product. Note that if Time Electronics determine that the fault on a returned product has been caused by the user, we will contact the customer before proceeding with any repair. - Page 9 User Manual Returning Instruments Prior to returning your product please contact Time Electronics. We will issue a return merchandise authorization (RMA) number that is to accompany the goods returning. Further instructions will also be issued prior to shipment. When returning instruments, please ensure that they have been adequately packed, preferably in the original packing supplied.
