- Page 1 Operating instructions Refrigerator/freezer BL series Read instruction manual before starting work!
- Page 2 Philipp KIRSCH GmbH Im Lossenfeld 14 77731 Willstätt-Sand GERMANY Telephone: +49 781 9227-0 Fax: +49 781 9227-200 Email: info@KIRSCH-medical.de Internet: www.KIRSCH-medical.de D1004_05.21_Operating instructions BL version 2, en_GB © Philipp KIRSCH GmbH 2021 Refrigerator/freezer BL series 26.05.2021...
- Page 3 700 72 25000 / 700 82 25000 FROSTER BL 178 PRO-ACTIVE 170 05 25000 FROSTER BL 180 PRO-ACTIVE 180 01 25000 FROSTER BL 330 PRO-ACTIVE 320 02 25000 FROSTER BL 530 PRO-ACTIVE 500 10 25000 FROSTER BL 650 PRO-ACTIVE 650 01 25000 26.05.2021 Refrigerator/freezer BL series...
- Page 4 Internet www.kirsch-medical.de Orders are accepted during business hours. More information If you have questions or comments regarding this instruction manual or the unit, please contact your authorised regional spe- cialist dealer or contact KIRSCH directly. Refrigerator/freezer BL series 26.05.2021...
- Page 5 Supplemental directives Other applicable documents Medical product book Stock directory Operating log 26.05.2021 Refrigerator/freezer BL series...
-
Page 6: Table Of Contents
4.2 Final decommissioning of the unit......39 4.3 Putting the unit back into operation......39 Set-up, installation and connection........ 40 5.1 Setting up the unit............40 5.2 Installing the unit............40 5.3 Connecting the unit............. 40 Refrigerator/freezer BL series 26.05.2021... - Page 7 11.1 Status displays............67 11.2 Error messages............67 Decommissioning and disposal........73 12.1 Decommissioning unit..........73 12.2 Disposing of the unit..........73 Appendix................75 13.1 Declaration of conformity.......... 76 13.2 Technical data............78 13.3 Installation drawing........... 82 Index................... 83 26.05.2021 Refrigerator/freezer BL series...
-
Page 8: Product Description

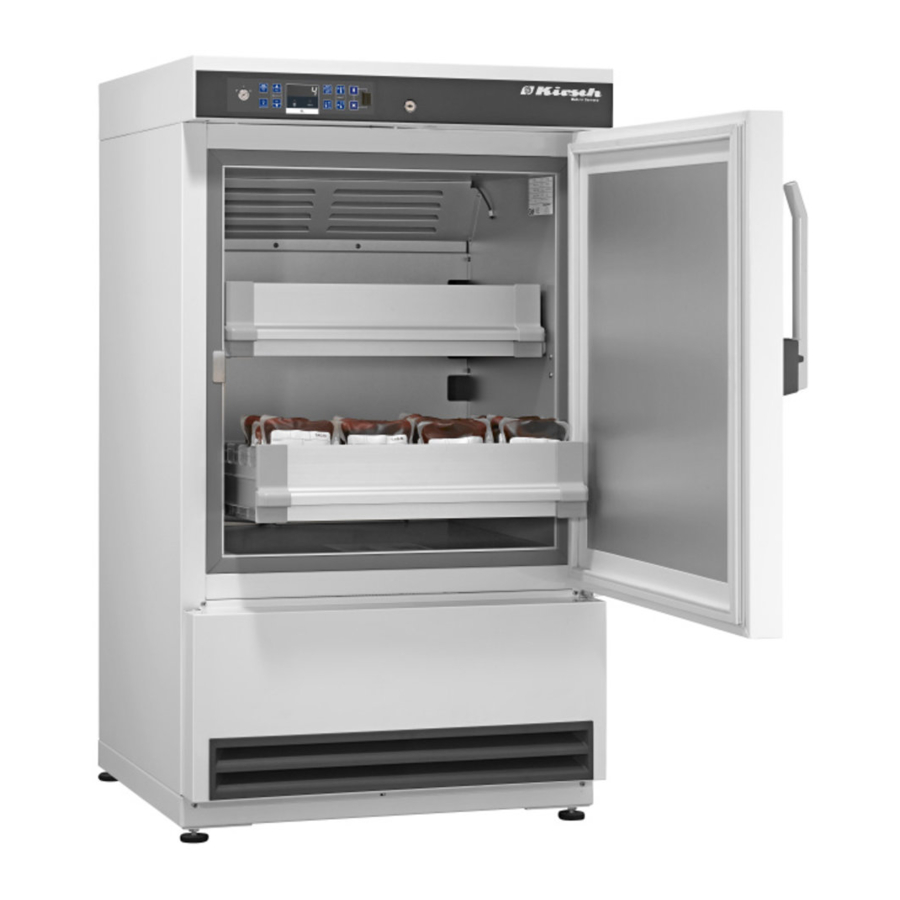

1.1 Unit overview Model BL (example) Fig. 1: Blood bank refrigerator (housing) Key switch Display and control unit Ä Chapter 1.2 “Display and control elements” on page 12 Door lock Glass door Adjustable feet Door handle Refrigerator/freezer BL series 26.05.2021... - Page 9 Product description Unit overview Fig. 2: Blood bank refrigerator (interior) Circulation cooling Support rails Supports Drawer Melt water container Cooling machine 26.05.2021 Refrigerator/freezer BL series...
- Page 10 Product description Unit overview FROSTER BL model (example) Fig. 3: Blood plasma freezer (housing) Key switch Ä Chapter 1.2 “Display and control Display and control unit elements” on page 12 Door lock Adjustable feet Door handle Refrigerator/freezer BL series 26.05.2021...
- Page 11 Product description Unit overview Fig. 4: Blood plasma freezer (interior) Circulation cooling Support rails Supports Drawer Melt water container Cooling machine 26.05.2021 Refrigerator/freezer BL series...
-
Page 12: Display And Control Elements
Always operate unit in key position “1” in order to prevent manipulation. During normal operation, remove key and store it safely. 1.2.3 Function of buttons and displays For the functions of buttons and displays, see the following over- view: Refrigerator/freezer BL series 26.05.2021... - Page 13 Switch interior lighting on/off permanently. [SuperFrost] Activate SuperFrost function. [Humidity] Adjust humidity. [Light] Switch interior lighting on/off permanently. [Start] Start data read-out via a PC-KIT-STICK. [Cancel] Cancel data read-out via a PC-KIT-STICK. [Unassigned button] Unassigned button without function. 26.05.2021 Refrigerator/freezer BL series...
-
Page 14: Scope Of Delivery
Depending on the unit components, the following keys are included in delivery: Unit key Door key (for lockable unit door) 1.4 Interfaces The unit is equipped with the following interface for connecting additional units (hereafter referred to as “modules”) for monitoring and documenting the temperature: Refrigerator/freezer BL series 26.05.2021... -
Page 15: Unit Functions
With circulation cooling, the air circulates around the interior of the refrigerator. Circulation cooling is performed by means of ventila- tion plates and a fan. Circulation cooling reduces physically induced temperature differ- ences and the target temperature is kept constant throughout the interior. 26.05.2021 Refrigerator/freezer BL series... -
Page 16: Defrosting
When the defrosting process is active, the “Defrosting” LED dis- play lights up on the Display. Additional defrosting In addition to automatic defrosting, it is possible to start the defrosting process manually. Press button [Additional defrosting] for four seconds. ð The defrosting process begins. Refrigerator/freezer BL series 26.05.2021... -
Page 17: Temperature Display
Ä “Interfaces” An unlimited number of units can be incorporated on page 15. For constant temperature monitoring, the unit can be equipped with Ä Chapter 1.7.1 “Tem- temperature documentation via the network perature documentation” on page 19. 26.05.2021 Refrigerator/freezer BL series... -
Page 18: Temperature Sensor
1.7 Additional unit components The unit is equipped with standard equipment. The standard equipment can be supplemented with additional unit components. The following additional components are available for the unit: Temperature documentation via the network Interior lighting Refrigerator/freezer BL series 26.05.2021... -
Page 19: Temperature Documentation
Not suitable for FROSTER BL 180 PRO-ACTIVE and FROSTER BL 650 PRO-ACTIVE External temperature docu- The sensor makes it possible to measure the tempera- mentation ture and transfer the data to existing interfaces on site. The user/owner may have to check for compatibility. 26.05.2021 Refrigerator/freezer BL series... -
Page 20: Interior Lighting
In units with a glass door, the interior lighting can be permanently switched on or off with the [Light] button. 1.7.3 Lockable glass door Door lock Your unit can be equipped with a lockable glass door. For more information on installing the glass door, contact KIRSCH. Refrigerator/freezer BL series 26.05.2021...
