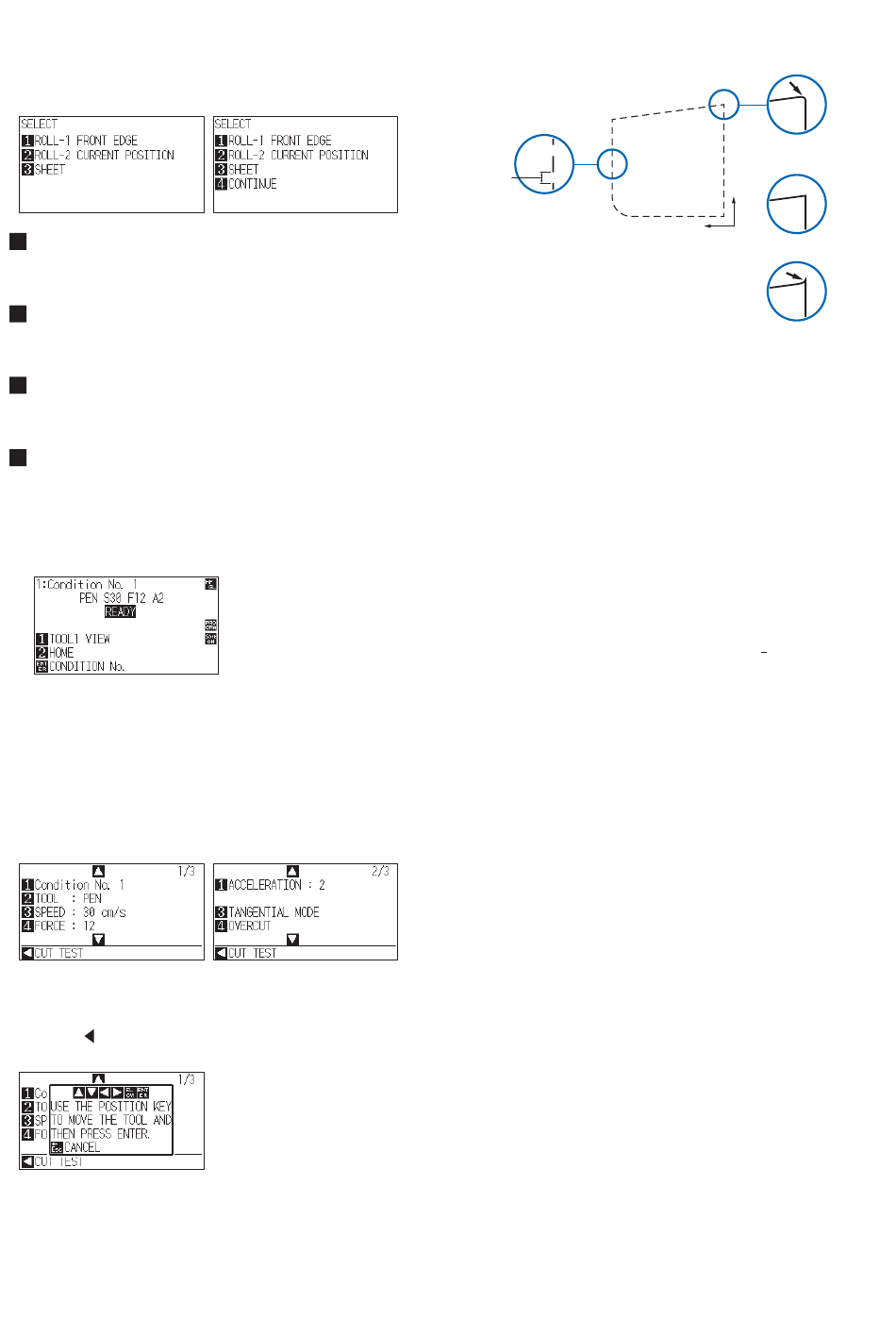

Media set selection
Load the media, raise the media set lever, and lower the
push roller. Select the media type according to the set media
type.
1
ROLL-1 FRONT EDGE:
The media is cut from the front edge. The media width and
front edge are detected.
2
ROLL-2 CURRENT POSITION:
The media is cut from the set position. Only the media
width is detected.
3
SHEET:
The sheet media is cut. The media width, front edge and
back edge of sheet media are detected.
4
CONTINUE:
This is displayed when the media set lever is raised and
lowered again after loading the media once. The previous
plotting/cutting range and tool position are maintained.
After the media is detected, the Ready screen is displayed.
Cutting condition setting
Press the "COND/TEST" key and set the cutting conditions.
TOOL, OFFSET, SPEED, FORCE and ACCELERATION are
included in the setting items. For details on each setting item,
refer to the USER'S MANUAL.
Cutting test
Press the [ ] key on the CONDITION setting screen to start
a test cut.
Check the result of the test cut and adjust the SPEED,
FORCE and ACCELERATION to the optimum value. When a
general cutting media is used, set to a value that will cause a
thin scratch on the backing sheet.
How to check offset
Check if the offset value is set correctly by following.
UP length
Check the UP length
when cutting.
When the UP length is
not enough, those that
are cut during cutting,
may come off.
Not enough adjustment.
Increase the offset value.
X
Y
Optimal offset value.
Too much adjustment.
Decrease the offset value.
