Summary of Contents for NANLITE D672II
- Page 1 USER MANUAL D672 LED Panel Light Guangdong NanGuang Photo&Video Systems Co., Ltd...
-
Page 2: Technical Data

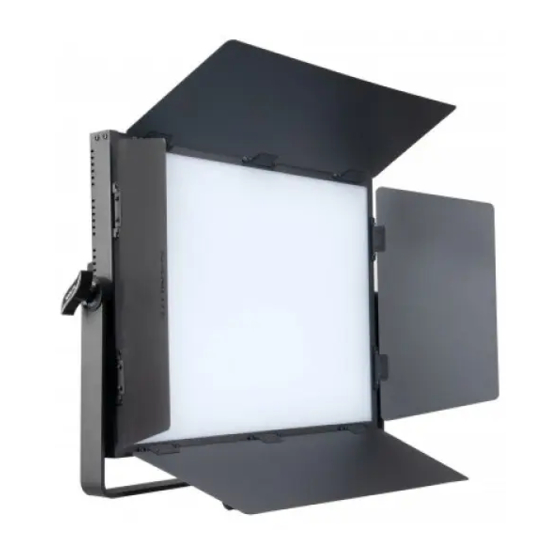

D672 LED Panel Light Product Show Technical Data LED Power: 148W Power Input: AC 110V-220V Color temperature: 3200K / 5600K CRI(Ra): 95... -
Page 3: Product Details
Product Details 1. Barndoor 2. 2.4G Antenna 9. Angle Fixing Knob 3. Display Screen 10. Fuse Holder 4. Address Code Button 5. DMX OUT 11. Power Switch 6. DMX IN 7. Dimmer Knob 8. Yoke 12. AC Power Socket 13. Bracket fixing knob Detailed Description 1. - Page 4 7. Dimmer Knob: For adjusting the brightness of the light. 8. Yoke: For connecting the fixture to the light stand and adjusting the direction of the light. 9. Angle Fixing Knob: For adjusting and securing the position of the light on in a given position or direction. 10.
- Page 5 Five Pin Three Pin Pin 1:GND(SCREEN) Pin 1:GND(SCREEN) Pin 2:Signal(-) Pin 2:Signal(-) Pin 3:Signal(+) Pin 3:Signal(+) Pin 4:N/C Pin 5:N/C 2. 3-Pin DMX circuit In DMX mode, make sure the last light is the only light with cable connected to DMX output. There is a resistance about 120(OHM) between the second pin and third pin of this plug(as below photo).
- Page 6 4. 2.4G Wireless Remote Control The D672 is designed to work with a 2.4G remote controller or Nanguang WIFI-APP via WIFI transfer device to control the light remotely. NOTE: 2.4G remote controller or WIFI transfer device should be bought additionally. (See separate instructions for remote controller or WIFI transfer device.) Operating Instructions 1.
-
Page 7: Safety Precautions
4. When setting the address code, press the "+" to increase the address code number and press "-" to decrease the address code number. The display will shows the address code number of the fixture in the range of A.001···A.512. These two buttons support click or long press.(As figure below) 5. - Page 8 Notice 1. Please make sure that the power voltage and frequency is within the specified range when connecting the power. 2. When the light is on, don't look direct at the emitter. 3. Don't place objects on the light emitter or allow liquid to flow inside the fixture or the emitter. 4.
- Page 9 If the failure is not solved after the above troubleshooting procedures, please contact the dealer or manufacturer for repair. This manual and all stats within it were produced under controlled conditions, and are accurate at time of print. Any future changes to design/technical data can be found at www.nanlite.com.
- Page 10 Version:V2 2020-01-09 +86-754-85751187 +86-754-85300887 service@nanlite.com Zhanglin,324,Dongli Chenghai Shantou Guangdong China www.nanlite.com...
