Quick Start

To attach the FE monitor to your system, follow these instructions:
1. Turn off the power to your computer.
2. If necessary, install the graphics card into your system. For more information,
refer to the graphics card installation manual.
3. For the PC: Connect the 15-pin mini D-SUB connector of the signal cable to the
connector of the display card in your system (Figure A.1). Tighten all screws.
For the Mac: Connect the MultiSync Macintosh cable adapter (not included) to
the monitor connector on the Macintosh (Figure B.1). Attach the 15-pin mini
D-SUB end of the signal cable to the MultiSync Macintosh cable adapter on
the computer (Figure B.1). Tighten all screws.
NOTE: To obtain the MultiSync Macintosh cable adapter, call NEC-Mitsubishi
Electronics Display of America, Inc. at (800) 632-4662.
4. Connect the other end of the signal cable to the connector on the back of the
MultiSync monitor.
5. Connect one end of the power cord to the MultiSync monitor and the other
end to the power outlet (Figure C.1).
6. Turn on the monitor (Figure D.1) and the computer.
NOTE: For download information on the Windows
MultiSync monitor, refer to the References section of this User's Manual.
NOTE: If you have any problems, please refer to the Troubleshooting section of
this User's Manual.
15-pin
mini
D-SUB
Capative Signal Cable

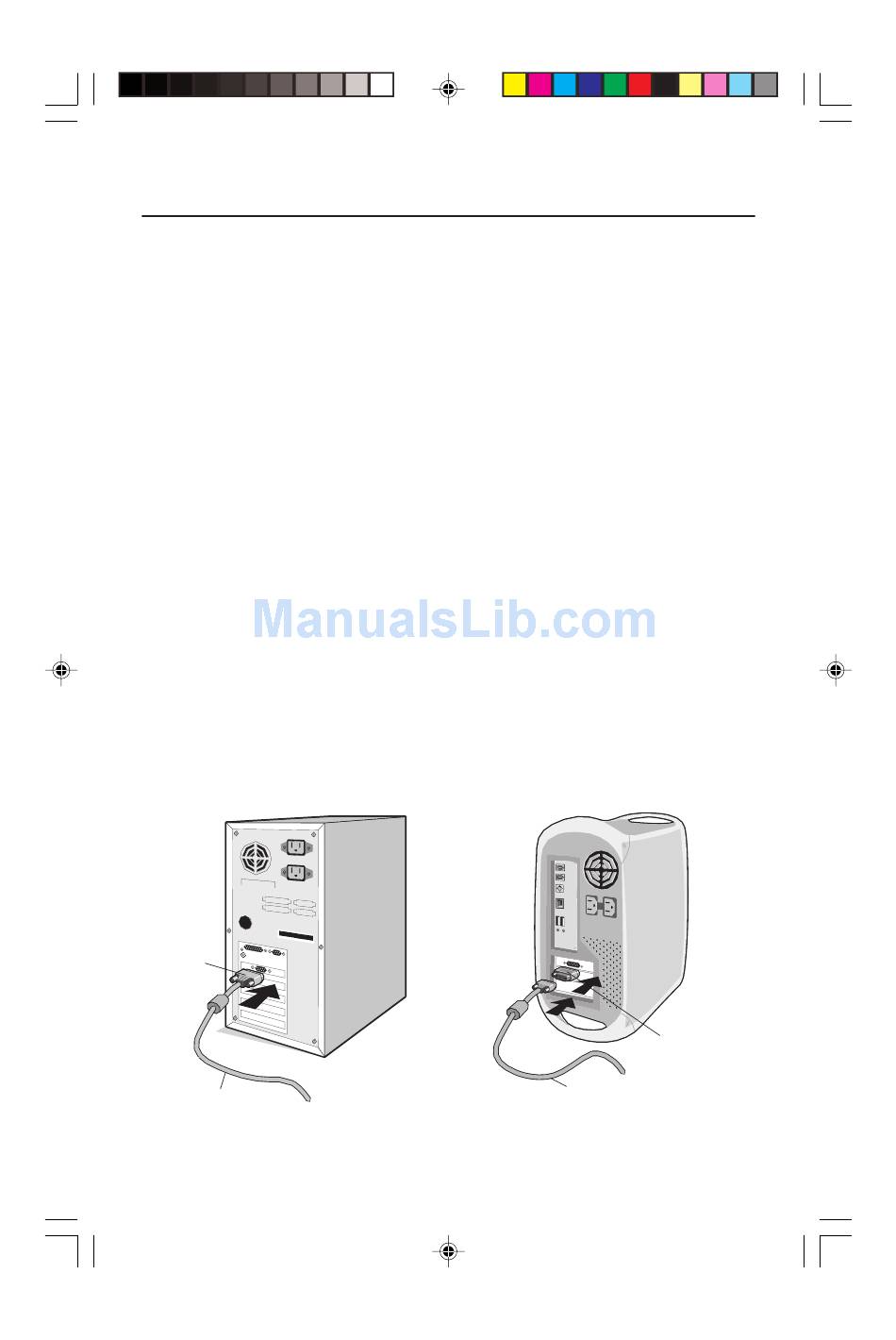

Figure A.1
® 98/2000/Me/XP INF file for your
Capative Signal Cable
Figure B.1
3
Mac Adapter
(Not Included)
