Pro-Lift F1800 Owner's Manual

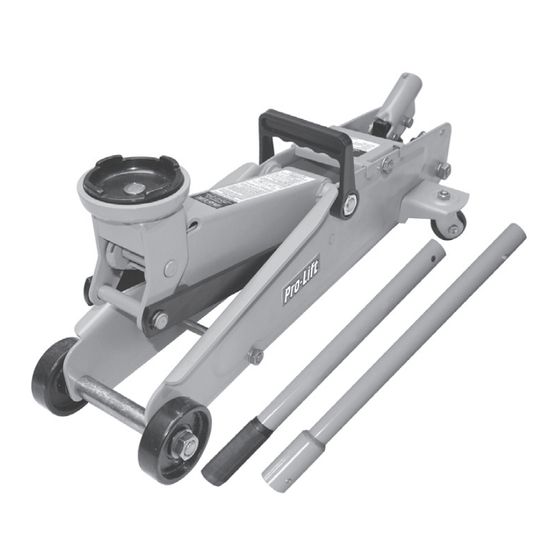

Floor jack, working load limit 1800kg
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

WORKING LOAD LIMIT 1800KG
• Safety Instructions
• Operation Procedures
• Maintenance Procedures
READ RULES FOR SAFE OPERATION
READ RULES FOR SAFE OPERATION
AND INSTRUCTIONS CAREFULLY
AND INSTRUCTIONS CAREFULLY
WARNING:THEJACKMUSTBEUSEDONLYONHARD
LEVEL SURFACES AND BE FREE TO ROLL DURING
LIFTING AND LOWERING. DO NOT GET UNDER A
VEHICLE THAT IS SUPPORTED BY A TROLLEY JACK
- USE SUPPORT STANDS.
FLOOR JACK
OWNER'S MANUAL
THIS NEW JACK CONFORMS TO MANDATORY
AS/NZS
Shinn Fu (Australia) PTY. LTD.
15 Viewtech Place, Rowville, Victoria 3178, Australia
Model: F1800
2615:2004 STANDARD
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F1800 and is the answer not in the manual?

Questions and answers

Related Manuals for Pro-Lift F1800

Summary of Contents for Pro-Lift F1800

  • Page 1 Model: F1800 FLOOR JACK OWNER’S MANUAL WORKING LOAD LIMIT 1800KG • Safety Instructions • Operation Procedures • Maintenance Procedures READ RULES FOR SAFE OPERATION READ RULES FOR SAFE OPERATION AND INSTRUCTIONS CAREFULLY AND INSTRUCTIONS CAREFULLY WARNING:THEJACKMUSTBEUSEDONLYONHARD LEVEL SURFACES AND BE FREE TO ROLL DURING LIFTING AND LOWERING.
  • Page 2 SAFETY INSTRUCTIONS INSPECTIONS 1. BEFORE EACH USE Visual inspection should be made before each use of the trolley jack for abnormal conditions such as cracked welds, leaks and damaged, loose, or missing parts. 2. AFTER EACH USE Trolley jack should be inspected immediately if the lift is believed to have been subjected to an abnormal load or shock.
  • Page 3 OPERATION PROCEDURES Before using Moving the jack 1. Remove bolted on cover plate and open Place handle in Handle Sleeve. DO NOT oil fi ller plug to allow air to be vented. move the jack when handle is on the 2.
  • Page 4 SPECIFICATIONS Working Load Limit: ..................1800Kg Jack Dimension : .............. 550mm x 210mm x 135mm Height Lowered : ....................135mm Height Raised : ....................385mm Oil Capacity : ....................145+/-5cc Net Weight : ..................12.8Kg. (approx.) 40mm 65mm 210mm 550mm MAINTENANCE PROCEDURES MAINTAINING OIL LEVEL Important Note: Important Note: 12mm below valve hole.
  • Page 5 LUBRICATION KNOW YOUR JACK • Add lubrication oil to all moving parts Compare these illustrations with your every 3 months. jack before operation and/or oil level maintenance to become familiar with PREVENTING RUST the location of jack components. • Check Piston Rod & Pump Piston every 3 months for any signs of rust or OIL FILLER corrosion.
