Pro-Lift PRO-A1200 Owner's Manual

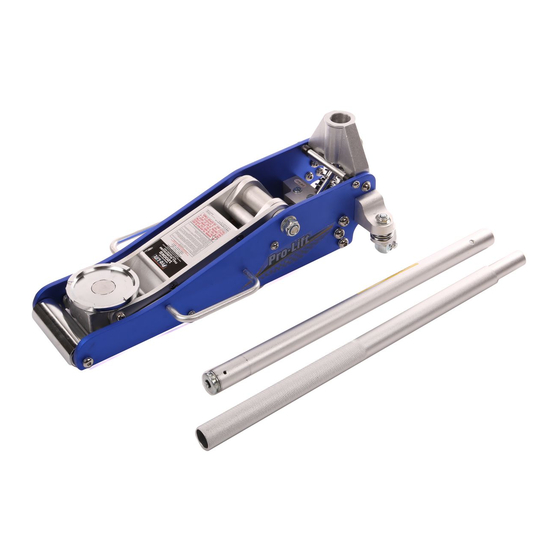

Working load limit 1200kg full aluminium alloy racing jack
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

WORKING LOAD LIMIT 1200KG
Safe Instructions
Operation
Specifications
Maintenance
WARNING: THE JACK MUST BE USED ONLY ON
HARD LEVEL SURFACES AND BE FREE TO ROLL
DURING LIFTING AND LOWERING. DO NOT GET
UNDER A VEHICLE THAT IS SUPPORTED BY A
TROLLEY JACK - USE SUPPORT STANDS.
CAUTION:
Carefully read instructions and procedures for safe operations.
FULL ALUMINIUM
ALLOY RACING JACK
Model No: PRO-A1200
THIS NEW JACK CONFORMS TO MANDATORY
ASNZS 2615:2004 STANDARD
SHINN FU AUSTRALIA PTY LTD
15 Viewtech Place, Rowville, Victoria, Australia 3178
OWNER'S MANUAL
Imported by

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO-A1200 and is the answer not in the manual?

Questions and answers

Related Manuals for Pro-Lift PRO-A1200

Summary of Contents for Pro-Lift PRO-A1200

  • Page 1 OWNER’S MANUAL WORKING LOAD LIMIT 1200KG FULL ALUMINIUM ALLOY RACING JACK Model No: PRO-A1200 THIS NEW JACK CONFORMS TO MANDATORY ASNZS 2615:2004 STANDARD Safe Instructions Operation Specifications Maintenance WARNING: THE JACK MUST BE USED ONLY ON HARD LEVEL SURFACES AND BE FREE TO ROLL DURING LIFTING AND LOWERING.

  • Page 2: Safe Instructions

    SAFE INSTRUCTIONS INSPECTIONS 1. Before Each Use Visual inspection should be made before each use of the Alloy Racing Jack for abnormal conditions such as cracked welds, leaks and damaged, loose, or missing parts. 2. After Each Use The garage jack should be inspected immediately if the lift is believed to have been subjected to an abnormal load or shock.

  • Page 3: Operation

    OPERATION TO RAISE: Know your Jack Place vehicle in park, apply brake and chock wheels with suitable devices. 1. Position the jack under the load and close release valve by turning clockwise firmly. 2. Operate manually by pumping the handle until head cap ALMOST makes contact with vehicle.

  • Page 4: Maintenance

    MAINTENANCE MAINTAINING OIL LEVEL Know your Jack Important: When adding or replacing oil, ALWAYS use good grade Hydraulic Jack oil. DO NOT use Hydraulic Brake Fluid, Alcohol, Glycerin, Detergent, Motor Oil or dirty oil. Use of an improper fluid can cause serious internal damage to your jack.
  • Page 5 1,200KG FULL ALUMINIUM ALLOY RACING JACK ITEM DESCRIPTION ITEM DESCRIPTION SADDLE HOLDING BLOCK RELEASE VALVE ASSEMBLY SADDLE AIR VENT SCREW RETURN SPRING FRONT ROLLER ASSEMBLY HANDLE SLEEVE ASSEMBLY REAR CASTER HANDLE LOCK FASTENER HANDLE ASSEMBLY HYDRAULIC UNIT SHINN FU AUSTRALIA PTY LTD 15 Viewtech Place, Rowville, Victoria, Australia 3178 - 5 -...
