WORKING LOAD LIMIT 1500KG
• Safety Instructions
• Operation Procedures
• Maintenance Procedures
READ RULES FOR SAFE OPERATION
AND INSTRUCTIONS CAREFULLY
WARNING: THE JACK MUST BE USED ONLY ON HARD LEVEL
SURFACES AND BE FREE TO ROLL DURING LIFTING AND LOW-
ERING. DO NOT GET UNDER A VEHICLE THAT IS SUPPORTED
BY A TROLLEY JACK - USE THIS HYDRAULIC TROLLEY JACK
WITH SUITABLY RATED VEHICLE SUPPORT STANDS.
15 Viewtech Place, Rowville, Victoria 3178, Australia

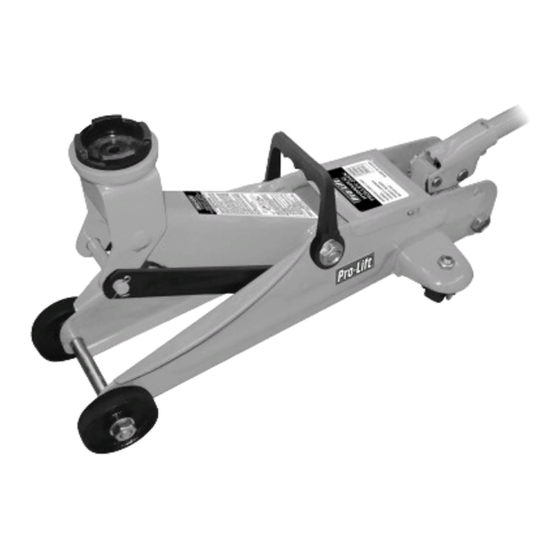

Model: F1500A
FLOOR JACK
OWNER'S MANUAL
THIS JACK CONFORMS TO MANDATORY
STANDARD AS 2615:2016
Shinn Fu (Australia) PTY. LTD.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F1500A and is the answer not in the manual?

Questions and answers

Related Manuals for Pro-Lift F1500A

Summary of Contents for Pro-Lift F1500A

  • Page 1 Model: F1500A FLOOR JACK OWNER’S MANUAL WORKING LOAD LIMIT 1500KG • Safety Instructions • Operation Procedures • Maintenance Procedures READ RULES FOR SAFE OPERATION AND INSTRUCTIONS CAREFULLY WARNING: THE JACK MUST BE USED ONLY ON HARD LEVEL SURFACES AND BE FREE TO ROLL DURING LIFTING AND LOW- ERING.
