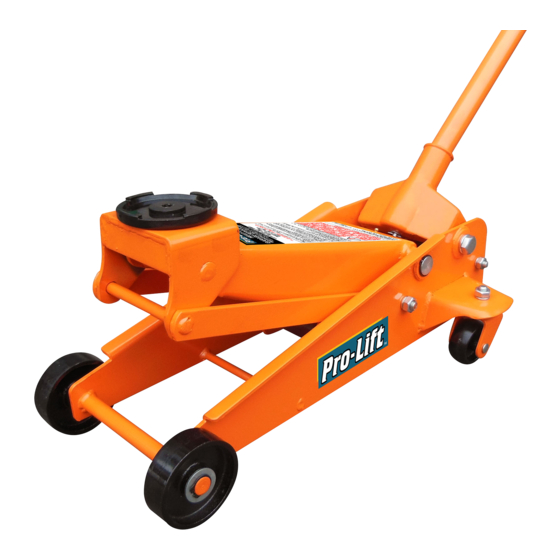

Pro-Lift G2000SA Owner's Manual

Pro-Lift G2000SA Owner's Manual

Working load limit 2000kg garage jack

Advertisement

Quick Links

WORKING LOAD LIMIT 2000KG
THIS JACK CONFORMS TO MANDATORY
Safe Instructions
Operation
Specifications
Maintenance
WARNING: THE JACK MUST BE USED ONLY ON HARD
LEVEL SURFACES AND BE FREE TO ROLL DURING
LIFTING AND LOWERING. DO NOT GET UNDER A
VEHICLE THAT IS SUPPORTED ONLY BY A TROLLEY
JACK - USE SUPPORT STANDS.
CAUTION:
Carefully Read Instructions and Procedures for Safe Operations
OWNER'S MANUAL
GARAGE JACK
Model No: G2000SA
STANDARD AS 2615:2016
Imported by
SHINN FU AUSTRALIA PTY. LTD.
15 Viewtech Place, Rowville 3178 VIC Australia
- 1 -

Advertisement

loading
Need help?

Need help?

Do you have a question about the G2000SA and is the answer not in the manual?

Questions and answers

Summary of Contents for Pro-Lift G2000SA

  • Page 1 OWNER'S MANUAL WORKING LOAD LIMIT 2000KG GARAGE JACK Model No: G2000SA THIS JACK CONFORMS TO MANDATORY STANDARD AS 2615:2016 Safe Instructions Operation Specifications Maintenance WARNING: THE JACK MUST BE USED ONLY ON HARD LEVEL SURFACES AND BE FREE TO ROLL DURING LIFTING AND LOWERING.
  • Page 2 SAFE INSTRUCTIONS INSTRUCTIONS 1. Before Each Use Visual inspection should be made before each use of the garage service jack for abnormal conditions such as cracked welds, leaks and damaged, loose, or missing parts. 2. After Each Use Garage jack should be inspected immediately if the lift is believed to have been subjected to an abnormal load or shock.
  • Page 3 Rear Castor push saddle down fully to retract the piston and ram Front Wheel exposure to contamination. SPECIFICATION Model No. : G2000SA Working Load Limit: 2,000kg Height Lowered: 135mm Height Raised: 492mm Jack Dimension: 636mm x 341mm x 164mm Handle Length: 1,070mm...
  • Page 4 MAINTENANCE MAINTAINING OIL LEVEL Important : When adding or replacing oil, Know Your Jack ALWAYS use good grade Hydraulic Jack oil. DO NOT use Hydraulic Brake Fluid, Alcohol, Glycerin, Detergent, Motor Oil or dirty oil. Use of an improper fluid can cause serious internal damage to your jack.
